Name: Gigabyte B760M G AX WIFI DDR5 Motherboard For Intel 12th | 13th | 14th Gen
Brand: GIGABYTE
SKU: XXX
Price: 11834.00 INR
Availability: OutOfStock

Gigabyte B760M G AX WIFI DDR5 Motherboard For Intel 12th | 13th | 14th Gen

Gigabyte B760M G AX WIFI DDR5 Motherboard For Intel 12th | 13th | 14th Gen

Product ID: P130
Product CD: BPKY
Model: B760M G AX
Warranty: 3 Years From GIGABYTE Service Center
Product URL: View Product

Based on 0 reviews. - Write a review

Out Of Stock

Ex Tax: ₹11,834

Qty

Add to Cart

Add to Wish List Compare this Product

Master Box - 10pcs

Description
Reviews

Component	Description
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors. L3 cache varies with CPU.
Chipset	Intel B760 Express Chipset
Memory	14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules. 13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)
Onboard Graphics	Integrated Graphics Processor - Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. Support for DisplayPort 1.2 version and HDCP 2.3. Support for up to triple-display at the same time.
Wireless Communication module	Intel® Wi-Fi 6E AX211: - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. - BLUETOOTH 5.3. - Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1.
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.
USB	Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support. - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). - 2 x USB 2.0/1.1 ports on the back panel. Chipset + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers.
Internal I/O Connectors	1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 3 x system fan headers. 2 x addressable LED strip headers. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x S/PDIF Out header. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x Q-Flash Plus button. 1 x reset jumper. 1 x Clear CMOS jumper.

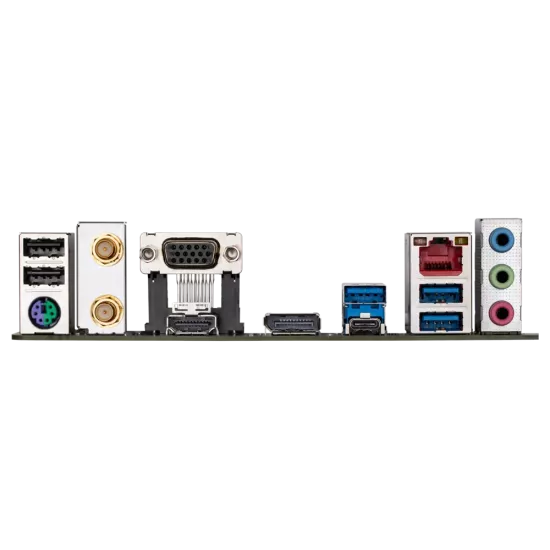

Back Panel Connectors	2 x USB 2.0/1.1 ports. 1 x PS/2 keyboard/mouse port. 2 x SMA antenna connectors (1T1R) / (2T2R). 1 x D-Sub port. 1 x HDMI port. 1 x DisplayPort. 3 x USB 3.2 Gen 1 ports. 1 x USB Type-C® port, with USB 3.2 Gen 1 support. 1 x RJ-45 port. 3 x audio jacks.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Gigabyte B760M G AX WIFI DDR5 Motherboard For Intel 12th | 13th | 14th Gen
