- Product Type
- Motherboard
- Model

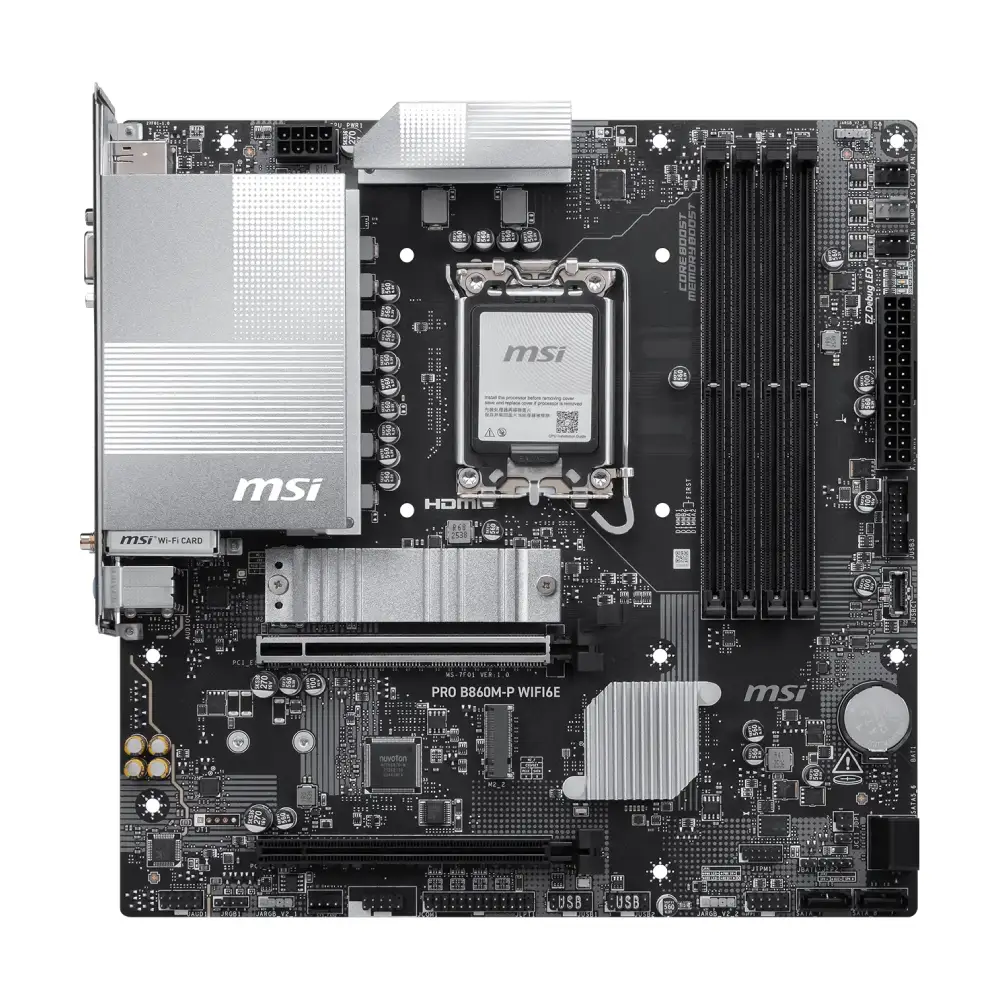

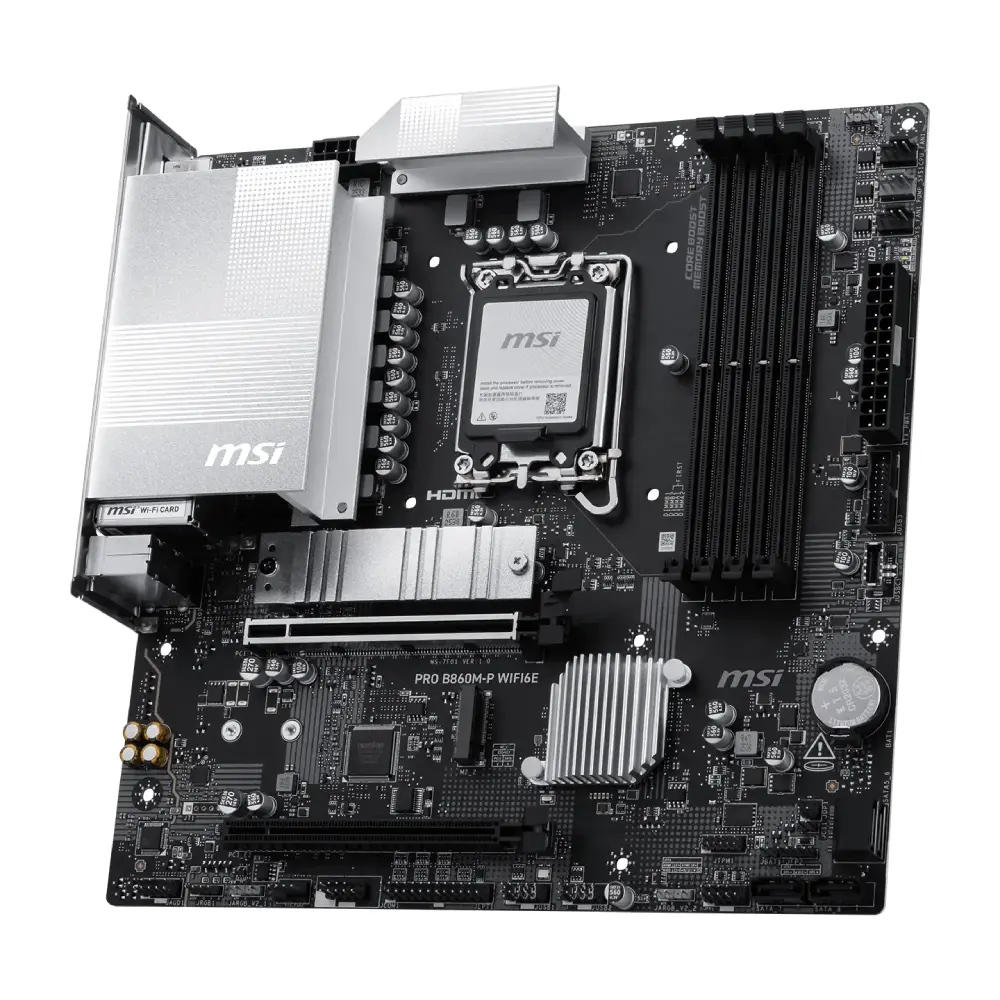

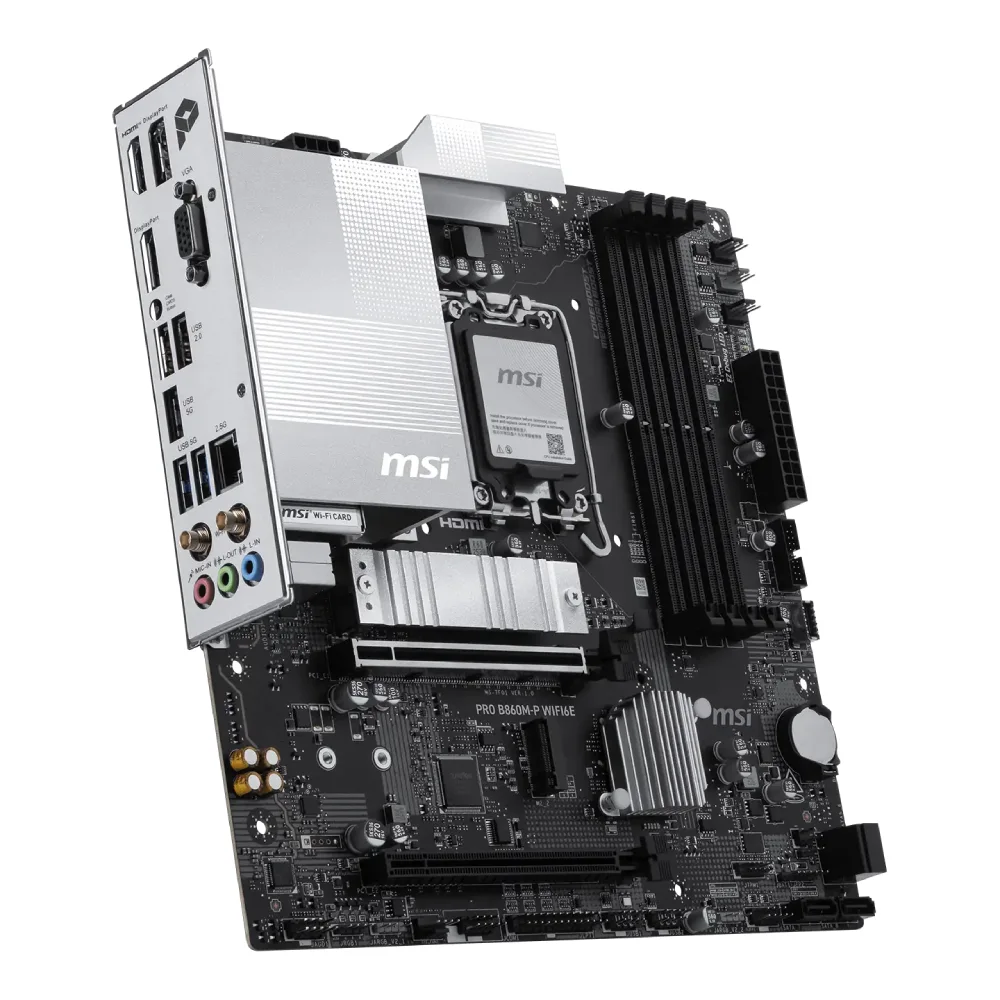

- MSI PRO B860M-P WIFI6E DDR5
- Chipset
- Intel B860
- CPU Support
- Intel Core Ultra Processors (Series 2), LGA1851 Socket
- Memory
- 4 x DDR5 DIMM, Up to 256GB
- Memory Speed
- DDR5 8800–4800 MT/s (OC Supported)
- Memory Features
- Dual Channel, XMP 3.0, Non-ECC, Unbuffered
- Graphics Output

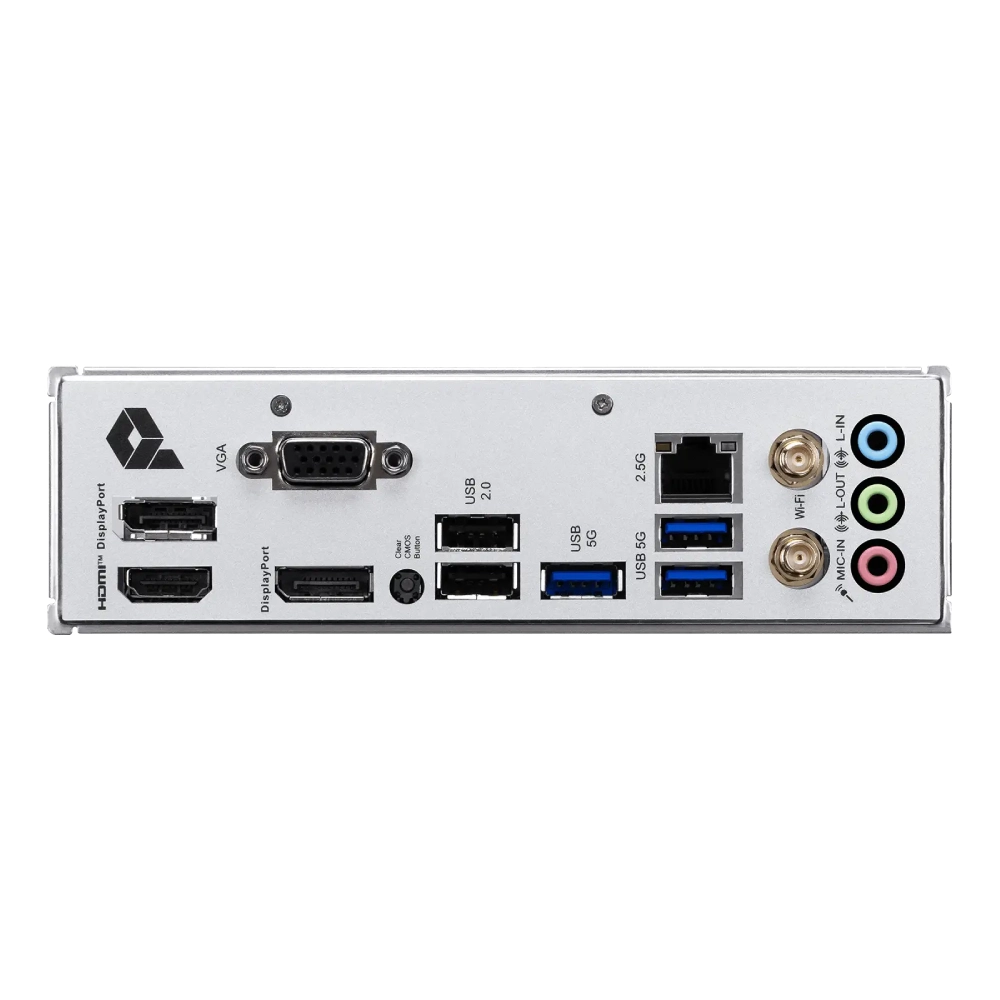

- HDMI 2.1, 2 x DisplayPort 1.4, VGA
- Expansion Slots
- 2 x PCIe x16 (Gen5 + Gen4)
- Storage
- 2 x M.2 (PCIe 5.0 + PCIe 4.0), 4 x SATA 6Gb/s
- RAID Support
- RAID 0 / 1 / 5 / 10
- LAN
- 2.5Gbps Ethernet
- Wireless
- Wi-Fi 6E + Bluetooth 5.3
- USB Ports
- USB 2.0, USB 3.2 Gen1, USB Type-C
- Audio
- Realtek ALC897 7.1 Channel HD Audio
- Internal Connectors
- ATX Power, CPU Power, Fan Headers, RGB Headers, TPM, USB Headers
- Special Features
- EZ Debug LED, Memory Detection LED, RGB Support
- Form Factor
- Micro-ATX
