- Feature
- Description
- Chipset
- Intel® B760
- CPU Support
- Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® (LGA 1700)
- Memory
- 2 × DDR5 DIMM, Max 128GB
- Memory Speed
- DDR5 8000+(OC) / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 (JEDEC)
- Memory Features
- Intel® XMP 3.0, Dual-Channel, Dual-Controller, Non-ECC, Un-buffered 1DPC 1R: up to 8000+ MHz 1DPC 2R: up to 6400+ MHz
- Graphics Output
- 1 × HDMI 2.1 (4K@60Hz, HDR) 1 × DisplayPort 1.4 (4K@60Hz) 1 × VGA (up to 2048×1536)
- Expansion Slots
- 1 × PCIe x16 (Gen 4, CPU) 1 × PCIe x1 (Gen 4, Chipset)
- Audio
- Realtek® ALC897, 7.1-Channel HD Audio, S/PDIF Support
- Storage
- 2 × M.2 (PCIe 4.0 x4, one supports SATA mode) 4 × SATA 6Gb/s
- RAID
- RAID 0 / 1 / 5 / 10 (SATA)

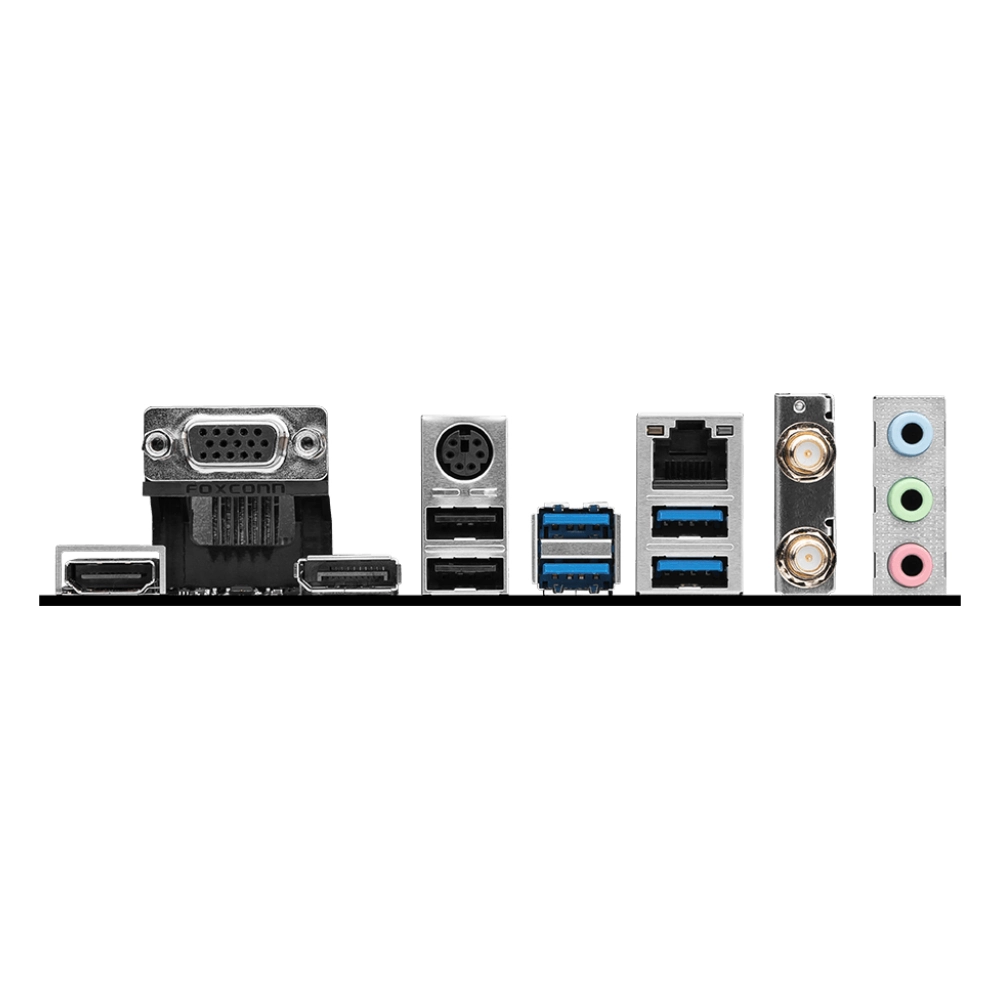

- USB Ports
- Rear: 2 × USB 2.0, 4 × USB 5Gbps Type-A Front: 4 × USB 2.0, 2 × USB 5Gbps Type-A
