- CPU Support
- Supports 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors
- Chipset
- Intel® Z790 Express Chipset
- Memory Support
- 4 x DDR5 DIMM sockets supporting up to 128 GB; Supports DDR5 7600(O.C.) to 4000 MHz memory modules; Dual channel memory architecture; Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode); Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Supports Extreme Memory Profile (XMP) memory modules
- Graphics Output
- 1 x HDMI port (HDMI 2.0, HDCP 2.3); 1 x DisplayPort (DP 1.2, HDCP 2.3)
- Audio
- Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Supports S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication
- Intel® Wi-Fi 6E AX211; Supports 802.11 a/b/g/n/ac/ax, 2.4/5/6 GHz bands; Bluetooth 5.3; Supports 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- Expansion Slots
- 1 x PCI Express x16 slot (PCIe 5.0, x16); 2 x PCI Express x16 slots (PCIe 4.0, x4); Supports AMD CrossFire™ technology
- Storage Interfaces
- 1 x M.2 connector (PCIe 4.0 x4/x2); 2 x M.2 connectors (PCIe 4.0 x4/x2); 1 x M.2 connector (SATA and PCIe 4.0 x4); 6 x SATA 6Gb/s connectors
- USB Ports
- Rear: 1 x USB Type-C® (USB 3.2 Gen 2x2); 1 x USB 3.2 Gen 2 Type-A; 4 x USB 3.2 Gen 1; 4 x USB 2.0/1.1; Internal: 1 x USB Type-C® header (USB 3.2 Gen 2); 1 x USB 3.2 Gen 1 header (supports 2 ports); 2 x USB 2.0/1.1 headers (support 4 ports)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 3 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header (USB 3.2 Gen 2); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header; 1 x serial port header; 1 x reset button; 1 x Q-Flash Plus button; 1 x Clear CMOS button; 1 x reset jumper

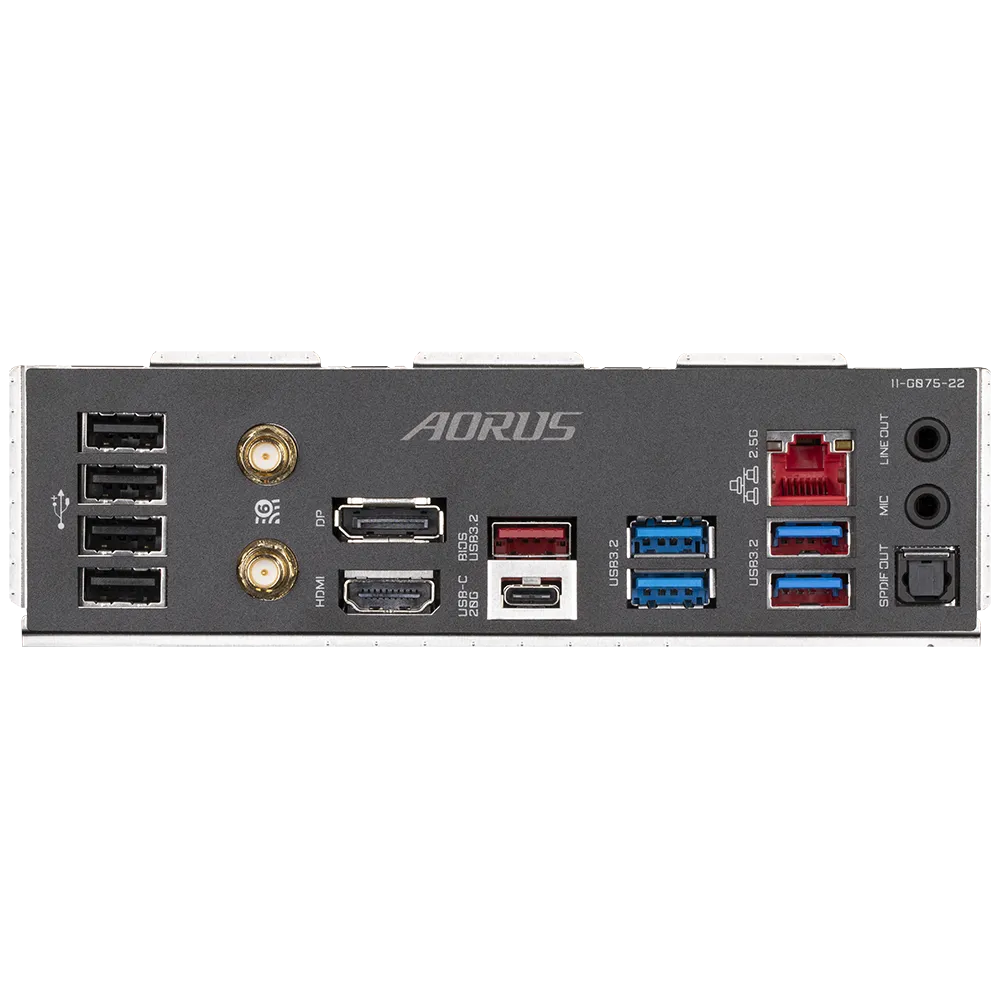

- Back Panel Connectors
- 1 x USB Type-C® port (USB 3.2 Gen 2x2); 1 x USB 3.2 Gen 2 Type-A port; 4 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 2 x SMA antenna connectors; 1 x HDMI 2.0 port; 1 x DisplayPort; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 2 x audio jacks
- Form Factor
- Micro ATX; 24.4cm x 24.4cm
