- Category
- Specifications
- CPU
- AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series Processors
- Chipset
- AMD B650
- Memory
- DDR5 8000(OC)~4800 MT/s 4 x DDR5 DIMM, up to 256 GB Dual channel, AMD EXPO™ & XMP support
- Graphics
- Integrated Radeon™ Graphics 2 x DisplayPort (3840x2160@144Hz, DP 1.4) 1 x HDMI (4096x2160@60Hz, HDMI 2.1)
- Audio
- Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio
- LAN
- Realtek® 2.5GbE LAN
- Wi-Fi / Bluetooth
- Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3
- PCIe Slots
- 1 x PCIe x16 (CPU, up to Gen4) 1 x PCIe x1 (Chipset, Gen3)
- Storage
- 2 x M.2 (PCIe 4.0, up to 25110) 4 x SATA 6Gb/s RAID 0/1/10 support for NVMe & SATA
- USB Ports
- Rear: 1 x USB-C (Gen2), 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 Internal: 1 x USB-C Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
- Internal Connectors
- 24-pin ATX, 8-pin 12V, CPU/System fan headers, 2 x M.2, 4 x SATA, RGB/ARGB headers, TPM, Reset, Clear CMOS

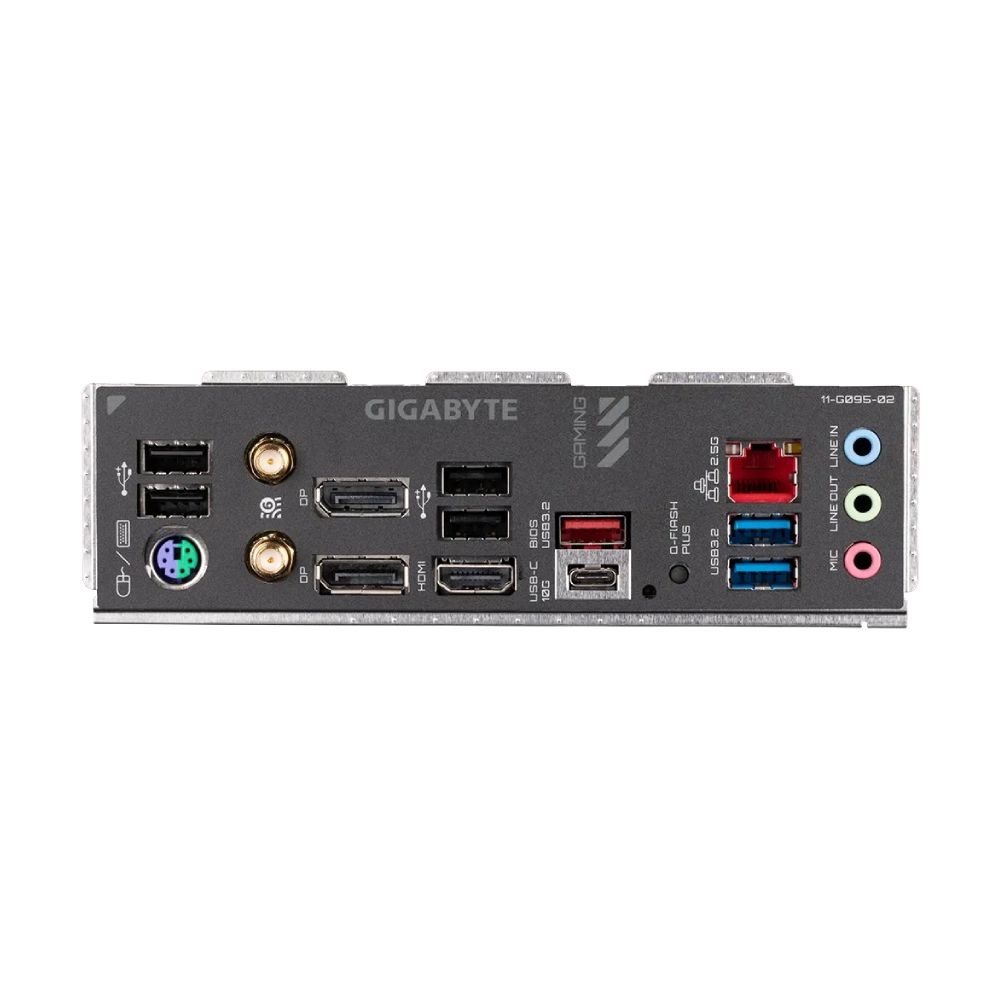

- Back Panel
- 4 x USB 2.0, 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-A, 1 x USB-C Gen2 2 x DisplayPort, 1 x HDMI, PS/2, RJ-45, 3 x Audio Jacks, Q-Flash Plus, Wi-Fi Antennas
