- Model

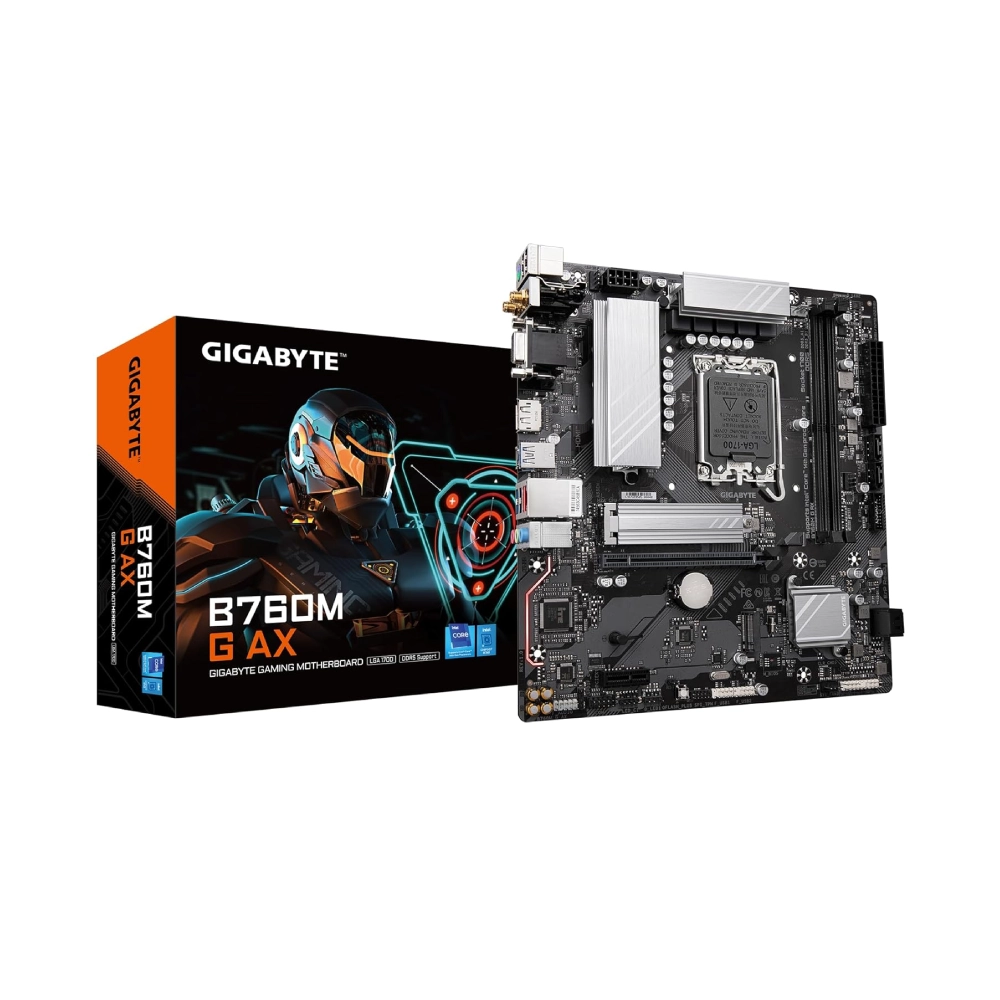

- Gigabyte B760M G AX WIFI
- CPU Support
- Intel 12th / 13th / 14th Gen Core™, Pentium® Gold, and Celeron® Processors
- Socket
- LGA 1700
- Chipset
- Intel B760 Express
- Memory Support
- 2 x DDR5 DIMM slots, up to 96GB, 8000(O.C.)~4000 MT/s
- Graphics Interface
- 1 x HDMI, 1 x DisplayPort (Graphics depends on CPU)
- Expansion Slots
- 1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0)
- Storage
- 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s
- LAN
- 1 x Realtek 2.5GbE LAN
- Wireless
- Intel Wi-Fi 6E & Bluetooth 5.3
- Audio
- Realtek Audio Codec, 7.1-channel HD Audio
- USB Ports
- USB 3.2 Gen 2, Gen 1, USB 2.0 (rear & internal headers)
- Form Factor
- Micro-ATX
