- Category
- Details
- Model
- TUF GAMING Z890-PRO WIFI
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
- Chipset
- Intel® Z890
- Memory
- 4 x DDR5 DIMM, up to 256GB, 9066+MT/s (OC), Dual Channel, XMP & AEMP III
- Graphics
- 1 x DisplayPort, 1 x HDMI, 2 x Thunderbolt™ 4 (Type-C®)
- Expansion Slots
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1
- Storage
- 4 x M.2 slots (PCIe 5.0/4.0/SATA), 4 x SATA 6Gb/s ports
- Ethernet
- Intel® 2.5Gb Ethernet, TUF LANGuard
- Wireless & Bluetooth
- Wi-Fi 7 (802.11be), Bluetooth® v5.4
- USB Ports
- Rear: 2 x Thunderbolt™ 4 (Type-C®), 6 x USB 10Gbps (Type-A); Front: 1 x USB 20Gbps (Type-C®), 2 x USB 5Gbps, 4 x USB 2.0
- Audio
- Realtek ALC1220P 7.1 Surround Sound, S/PDIF out, Premium capacitors
- Back Panel I/O

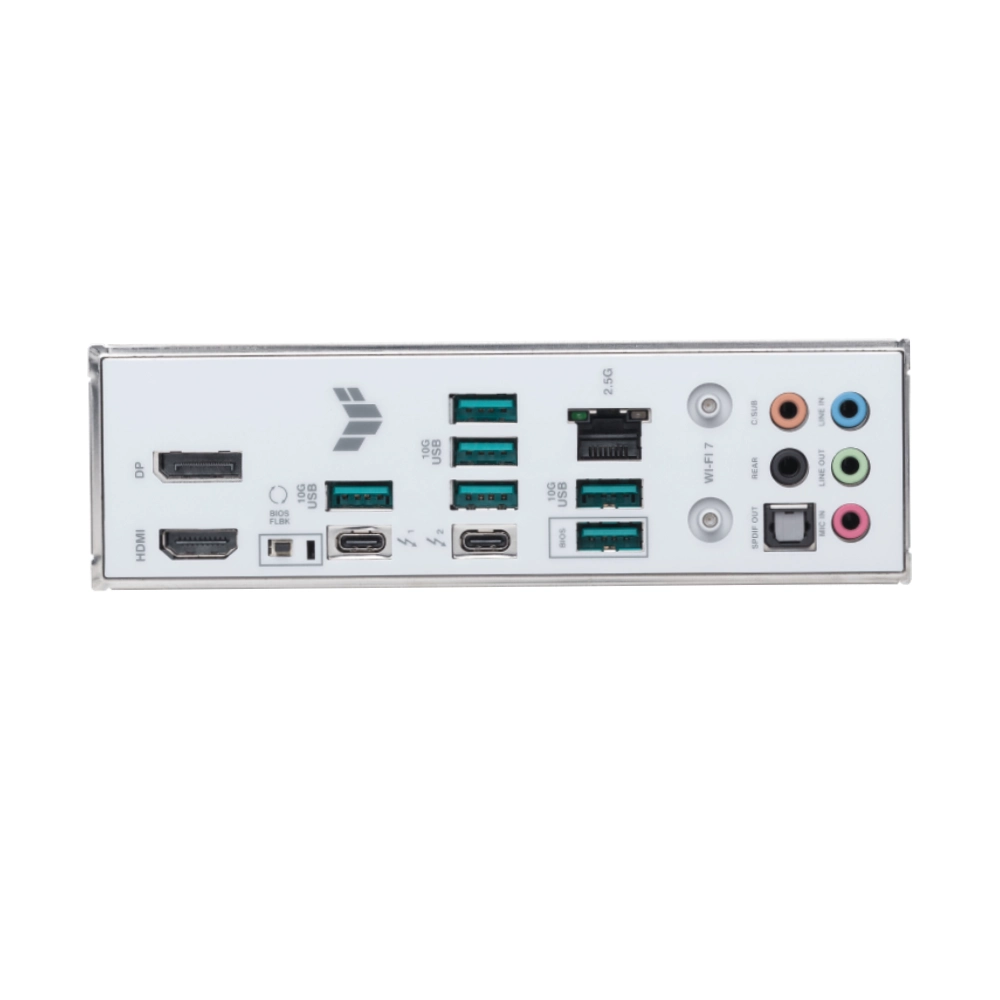

- 2 x Thunderbolt™ 4, 6 x USB 10Gbps, 1 x DP, 1 x HDMI, LAN, Wi-Fi, 5 x Audio jacks, Optical S/PDIF, BIOS FlashBack™ button
- Internal Connectors
- 4 x M.2, 4 x SATA, USB headers, 4 x Chassis Fan, CPU Fan, AIO Pump, RGB headers, Thunderbolt™ header
