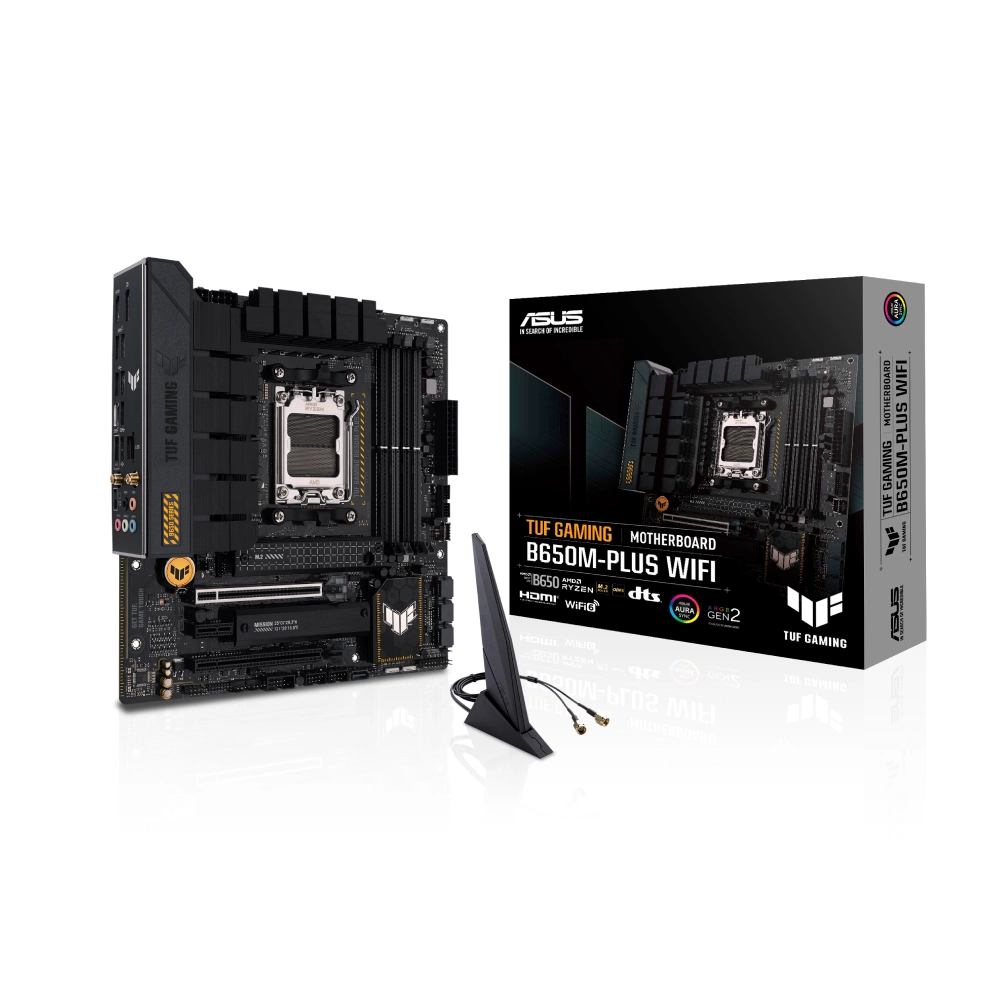

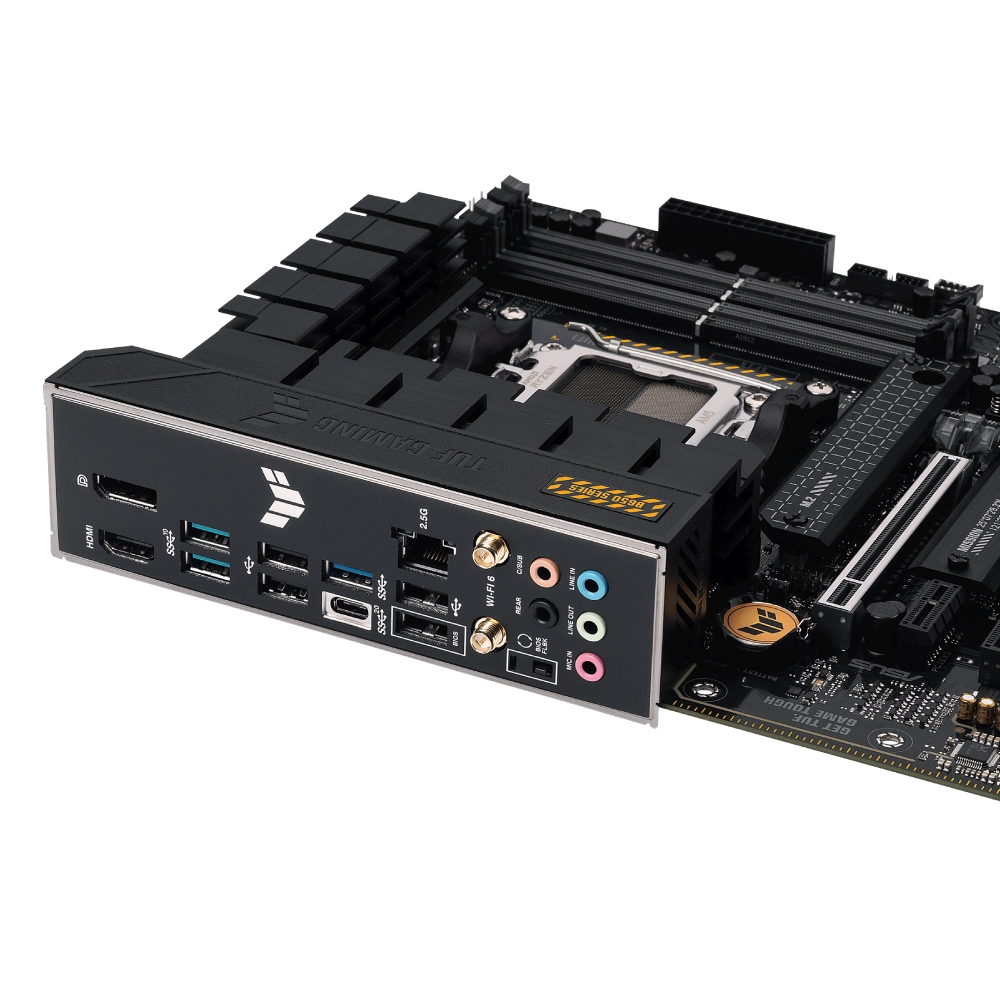

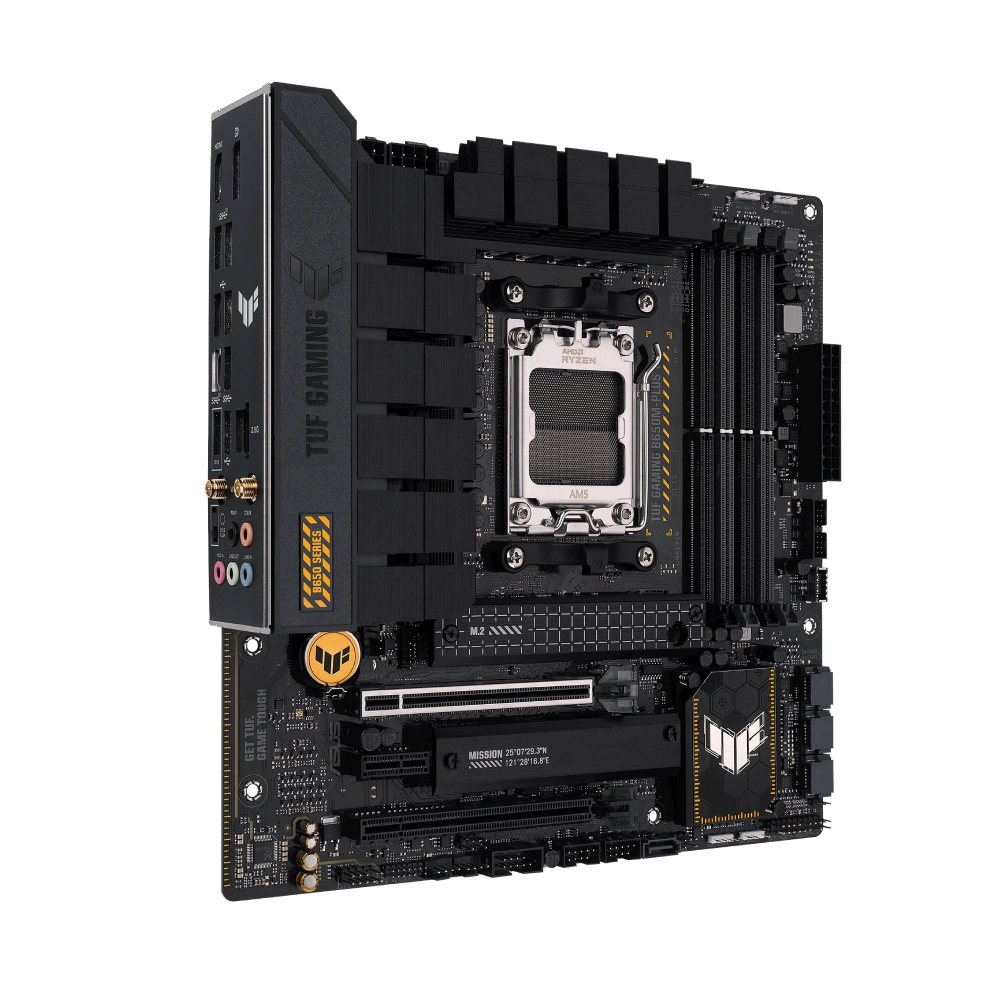

Asus Motherboard TUF Gaming B650M-Plus WIFI DDR5 For AMD

Product ID: A1038
Item CD: 16HITQ8
Model: TUF GAMING B650M-PLUS WIFI
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

For More Information: 70738 88300

Specifications

Main Points: Details
CPU: AMD Socket AM5, Supports Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Chipset: AMD B650 Chipset
Memory: 4 x DIMM, Max 192GB, DDR5 7600+(OC) support Dual Channel Memory Architecture Supports AMD EXPO™, OptiMem II
Graphics: 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI® 2.1 port (4K@60Hz)
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Jack-detection, Multi-streaming, Front Panel Jack-retasking Premium audio capacitors, Audio shielding, Dedicated audio PCB layers
LAN: Realtek 2.5Gb Ethernet with TUF LANGuard
Wi-Fi / Bluetooth: Wi-Fi 6 (802.11ax), Bluetooth® v5.2
PCIe Slots: 1 x PCIe 4.0 x16 slot (Ryzen 9000/7000 Series) 1 x PCIe 4.0 x16 slot (x8/x4 mode with Ryzen 8000 Series) 1 x PCIe 4.0 x1 slot
Storage: 2 x M.2 slots • M.2_1 supports PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000) • M.2_2 supports PCIe 4.0 x4/x2 4 x SATA 6Gb/s ports
USB Ports: Rear: 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A Front: 1 x USB 3.2 Gen 1 Type-C®, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports
Internal Connectors: 2 x M.2 slots, 4 x SATA ports, 1 x USB 3.2 Gen 1 Type-C® connector, 1 x Thunderbolt™ (USB4®) header, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM port header

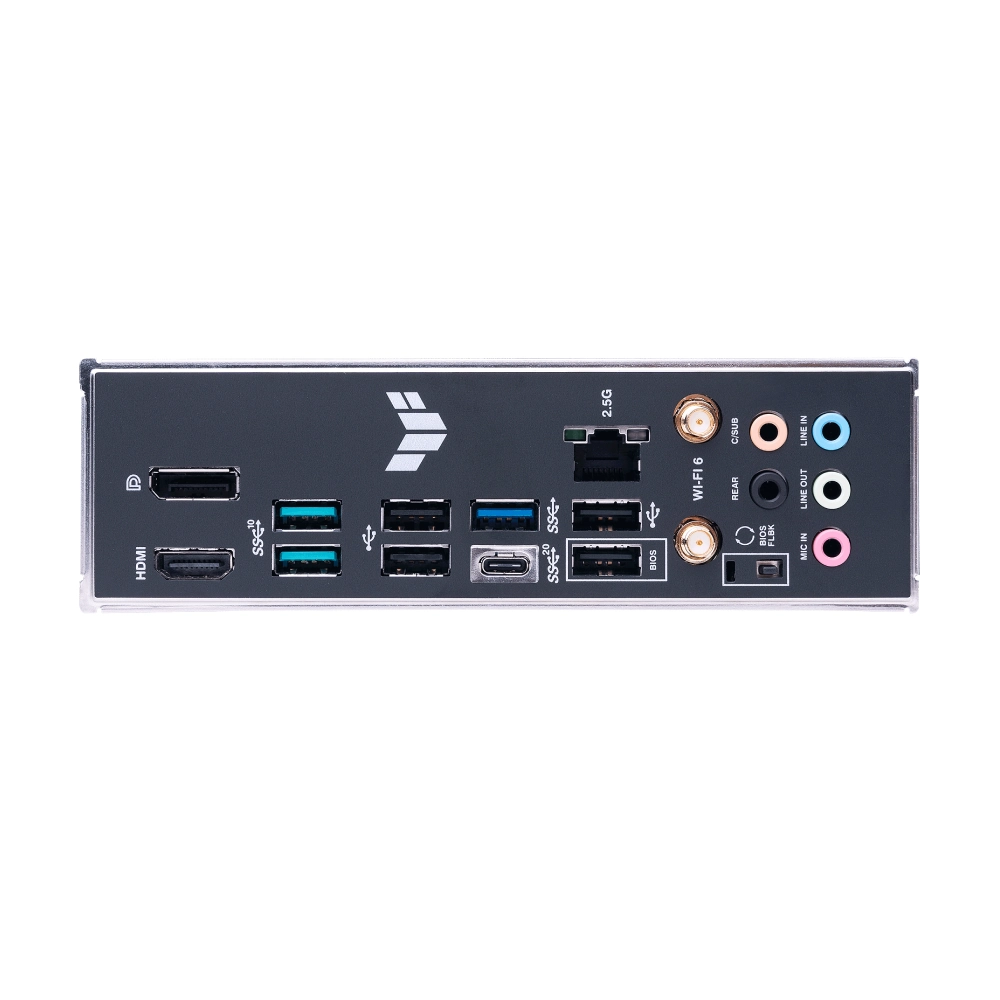

Back Panel: 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A 1 x DisplayPort, 1 x HDMI port 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks, 1 x BIOS FlashBack™ button
