- Model

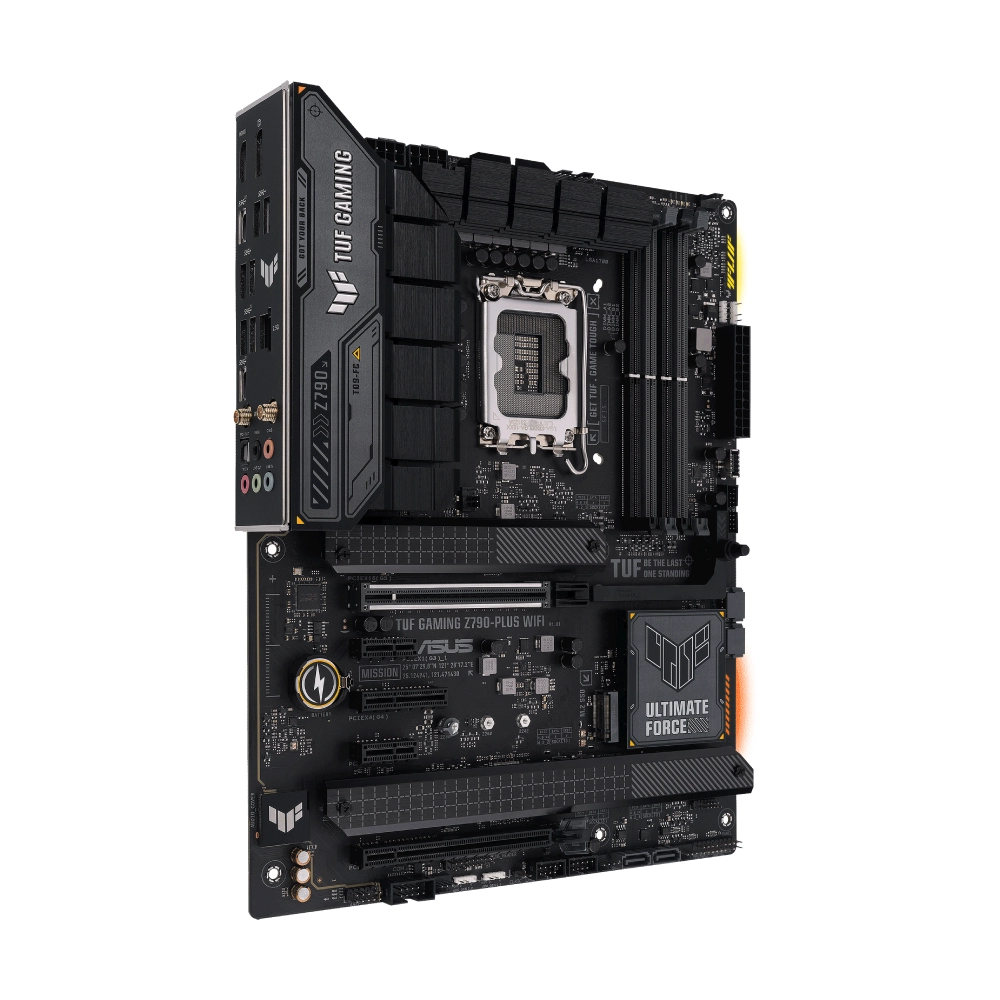

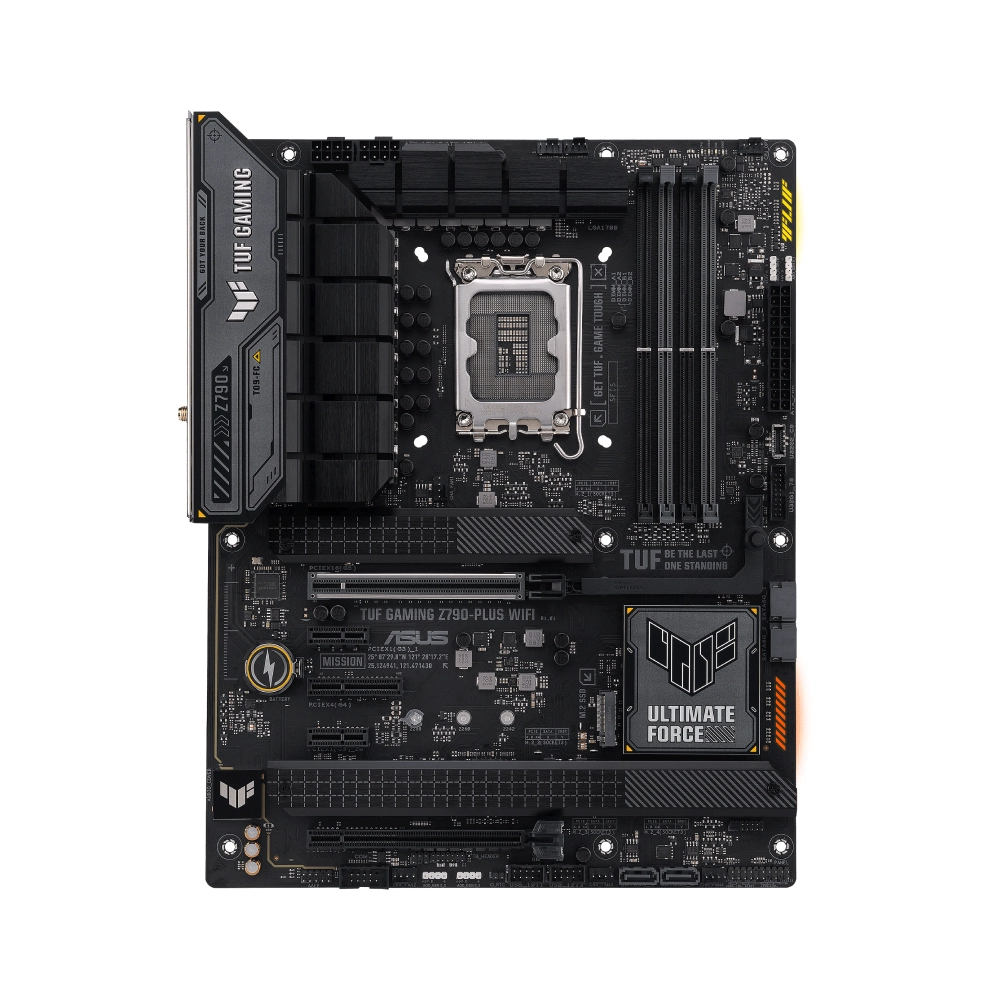

- TUF GAMING Z790-PLUS WIFI
- CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on CPU type.
- Chipset
- Intel® Z790 Chipset
- Memory
- 4 × DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on CPU and memory configuration. For more information, refer to the CPU/Memory Support List .
- Graphics
- 1 × DisplayPort (Supports max. 4K@60Hz as per DisplayPort 1.4) 1 × HDMI® Port (Supports 4K@60Hz as per HDMI 2.1) * Graphics specifications may vary between CPU types. ** VGA resolution support depends on processors’ or graphic cards’ resolution.
- Expansion Slots
- Intel® Core™ Processors (14th / 13th / 12th Gen) • 1 × PCIe 5.0 x16 slot Intel® Z790 Chipset • 1 × PCIe 4
