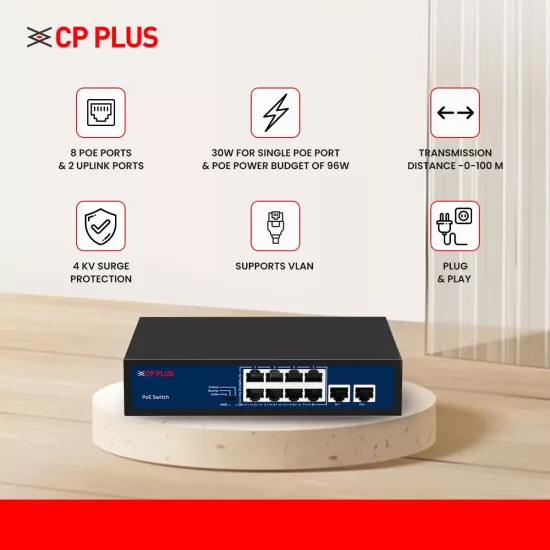

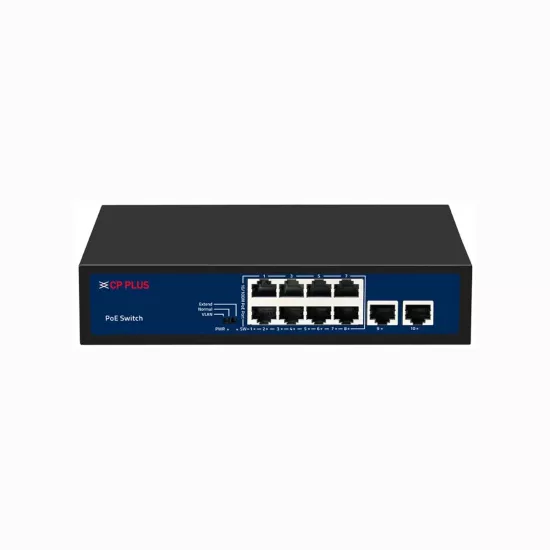

CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)

CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
CP-Plus Poe Switch 8 Port (8 FE + 2 FE Port)
  • Product ID: P4736
  • Item CD: JWYMI
  • Model: HPU8H2-96
  • Warranty: 2 Years from CPPLUS Service Center
  • Product URL: View Product
Out Of Stock
Ex Tax: ₹1,394
  • DATASHEET :

Available Options

Master Box - 20pcs
SpecificationDetails
Network Port8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Uplink Ports2, 10/100Mbps; Transmission Distance: Default: 0-100m
Switch Capacity2Gbps (non-blocking)
Forwarding Rates0.1488 Mbps/port
Poe StandardIEEE802.3/802.3u/802.3x
Poe Power Supply1/2(+), 3/6(-)
Transmission Distance0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List2K
Lightning ProtectionSupport
Poe Power Budget96W
ESD ProtectionAir discharge: 8KV; Contact discharge: 6KV
Power Consumption<5W
LED LightLight on: Powering; Light off: No Power
Power SourceBuilt-in Power Supply, Input: 100-240V AC, 50/60Hz
Power LightGreen light off: Normal/Default mode; Green light on: VLAN mode; Green light flash: Extend mode
Working Temperature-20°C ~50°C
Humidity10% - 95%, non-condensing
Storage Temperature-45°C ~85°C
Dimension200mm x 118mm x 44mm
