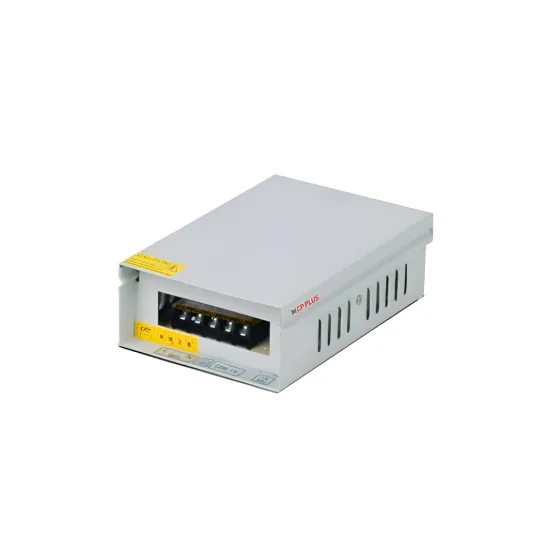

CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)

CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)
CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)
CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)
CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)
CP Plus CCTV Power Supply Premium 4ch Metal 12v/5a (MD50P)
  • Product ID: P1856
  • Product CD: DQUMY
  • Model: CP-DPS-MD50P-12D
  • Warranty: 2 Year from CPPLUS Service Center
  • Product URL: View Product
CP PLUS
Based on 0 reviews. - Write a review
₹456
Ex Tax: ₹456
Add to Cart
Add to Wish List Compare this Product

  • DATASHEET :

Available Options

Master Box - 40pcs
Feature Specification
Input Voltage 180~264VAC
Output Voltage 12V DC
Current Range 0~5A
Rated Power 60W
Ripple & Noise (max.) 100mVp-p
Voltage Adjustment Range 11.4~13.2V
Line Regulation ±1.0%
Voltage Tolerance ±2.0%
Setup Rise Time 600ms, 30ms at full load
Hold Up Time (Typ.) 13ms at full load
Load Regulation ±5.0%
Temperature Coefficient ±0.03%/°C (0~50°C)
Frequency Range 47~63Hz
Efficiency (Typ.) 84%
AC Current (Typ.) 5A/115VAC, 3A/230VAC
Inrush Current (Typ.) 20A/115VAC, 40A/230VAC
Leakage Current <2mA / 240VAC
Over Load 110~200% rated output power, Protection type: Shut down O/P, re-power
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity 20~90% RH Non-condensing
Vibration 10 ~ 500Hz, 3G 10min./1 cycle, 60min.each along X, Y, Z axes
Dimension 156(L) x 103(W) x 47mm(H)
Storage Temperature -20~+85°C, 10~95%RH
Working Temperature -20~+40°C
Withstand Voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
