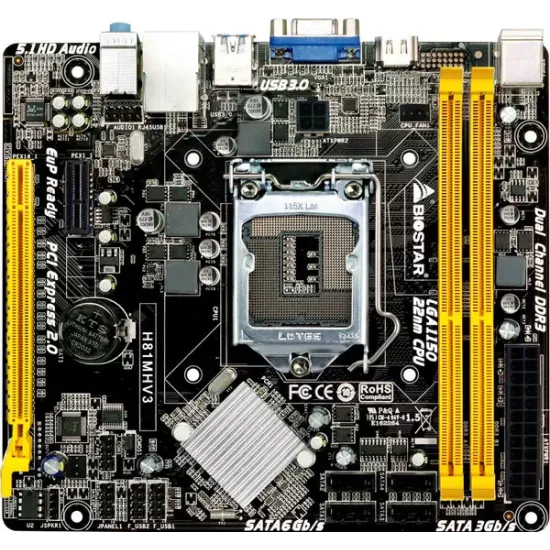

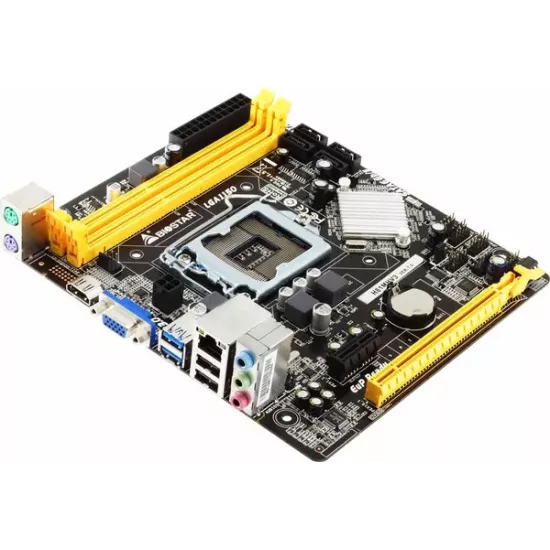

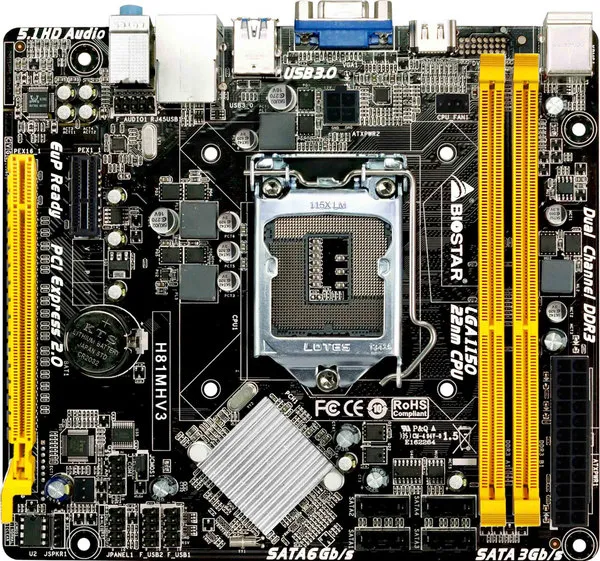

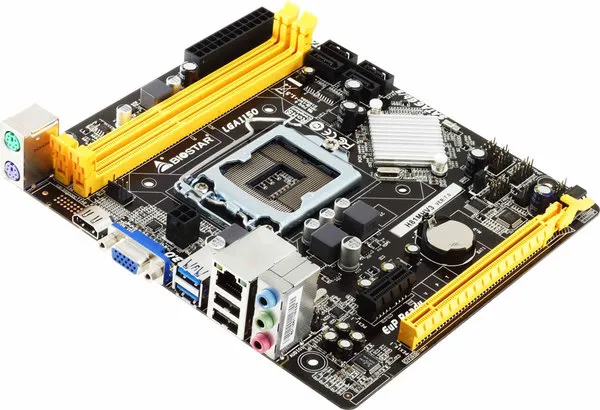

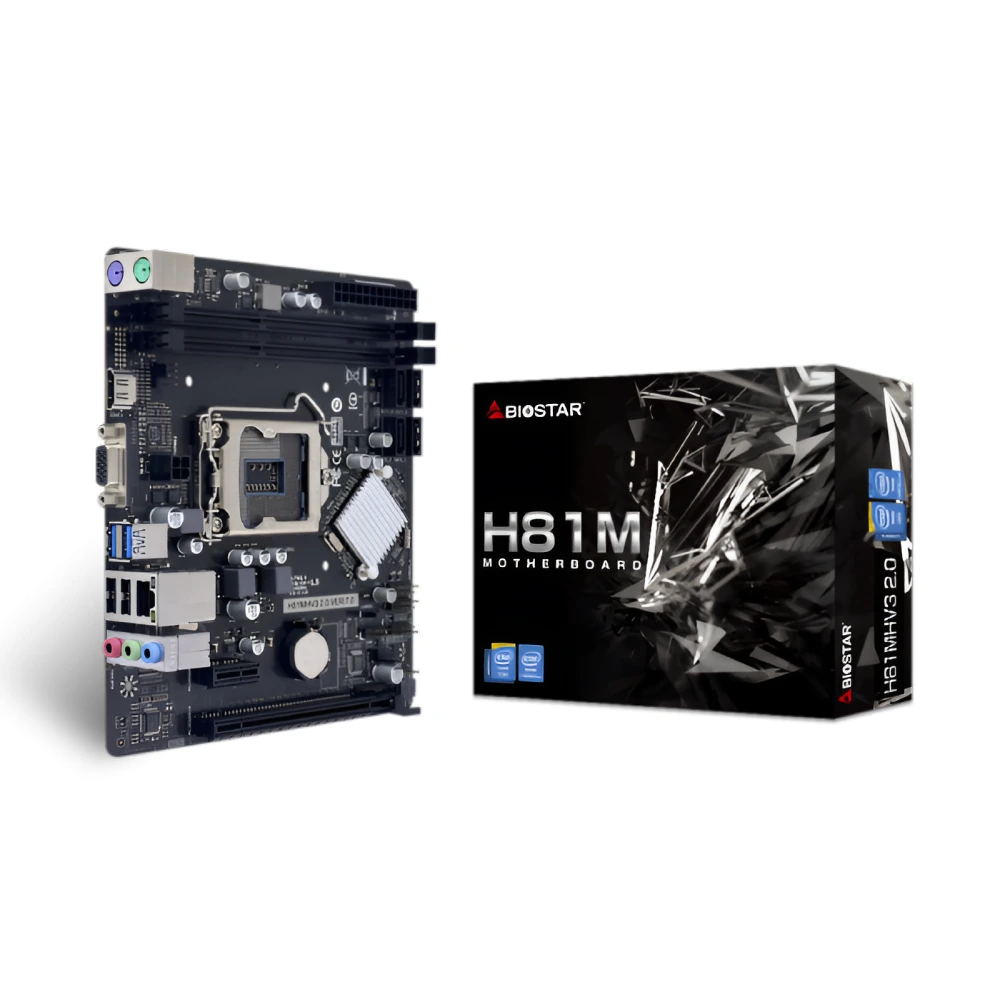

Biostar H81MHV3 DDR3 Motherboard For Intel 4th Gen

Name: Biostar H81MHV3 DDR3 Motherboard For Intel 4th Gen
Brand: BIOSTAR
SKU: 0039ZPC
Price: 4648 INR
Availability: OutOfStock

Product IDP121

Item CD0039ZPC

ModelH81MHV3

Warranty Period3 Years

Service Center ListView Product URLView Product Product RegistrationClick here BrochureClick here

Out of Stock

For More Information: 70738 88300

Component	Description
Chipset	Intel H81
CPU SUPPORT	Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY	Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory
INTEGRATED VIDEO	By CPU model Supports DX11.1
STORAGE	2 x SATA III Connectors (6Gb/s) * Specifications vary by CPU types 2 x SATA II Connectors (3Gb/s) * Specifications vary by CPU types
LAN	Realtek RTL8111G - 10/100/1000Mb/s Controller
AUDIO CODEC	Realtek ALC662 6-Channel HD Audio
USB	2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Header
EXPANSION SLOT	1 x PCI-E 2.0 x16 Slot * Specifications vary by CPU types 1 x PCI-E 2.0 x1 Slot * Specifications vary by CPU types

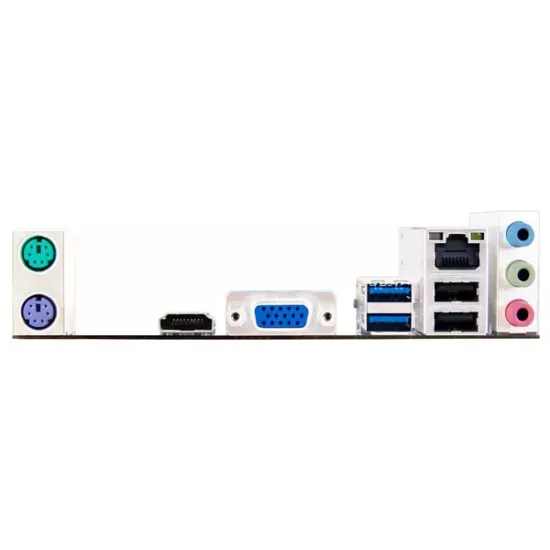

REAR I/O	1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x HDMI Connector 1 x VGA Port 1 x LAN Port 3 x Audio Jacks
INTERNAL I/O	2 x USB 2.0 Header 2 x SATA III Connector (6Gb/s) 2 x SATA II Connector (3Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 19cm x 17cm (W x L)
OS SUPPORT	Supports Windows 7 / 8 / 8.1 / 10(x64)
BUNDLE SOFTWARE	BIO-Remote2 Smart Speed LAN
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
FEATURES	Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
