- Model

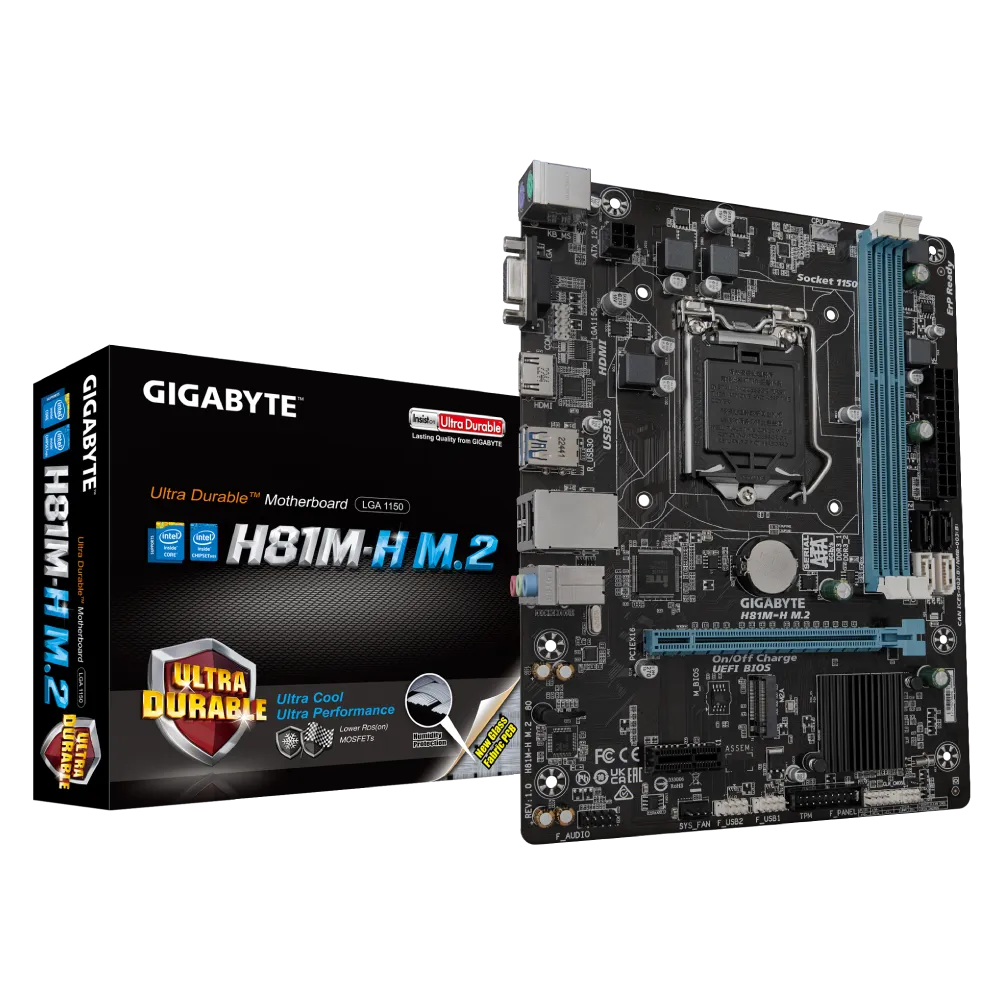

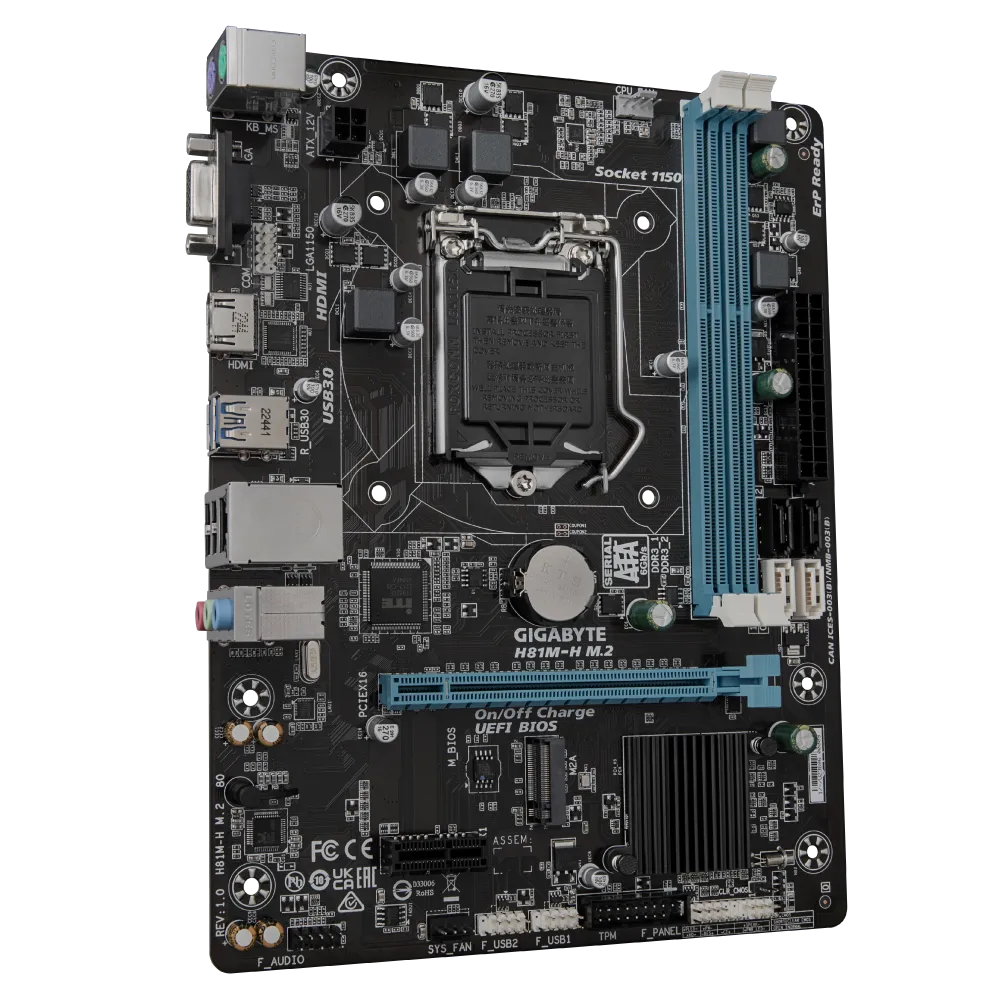

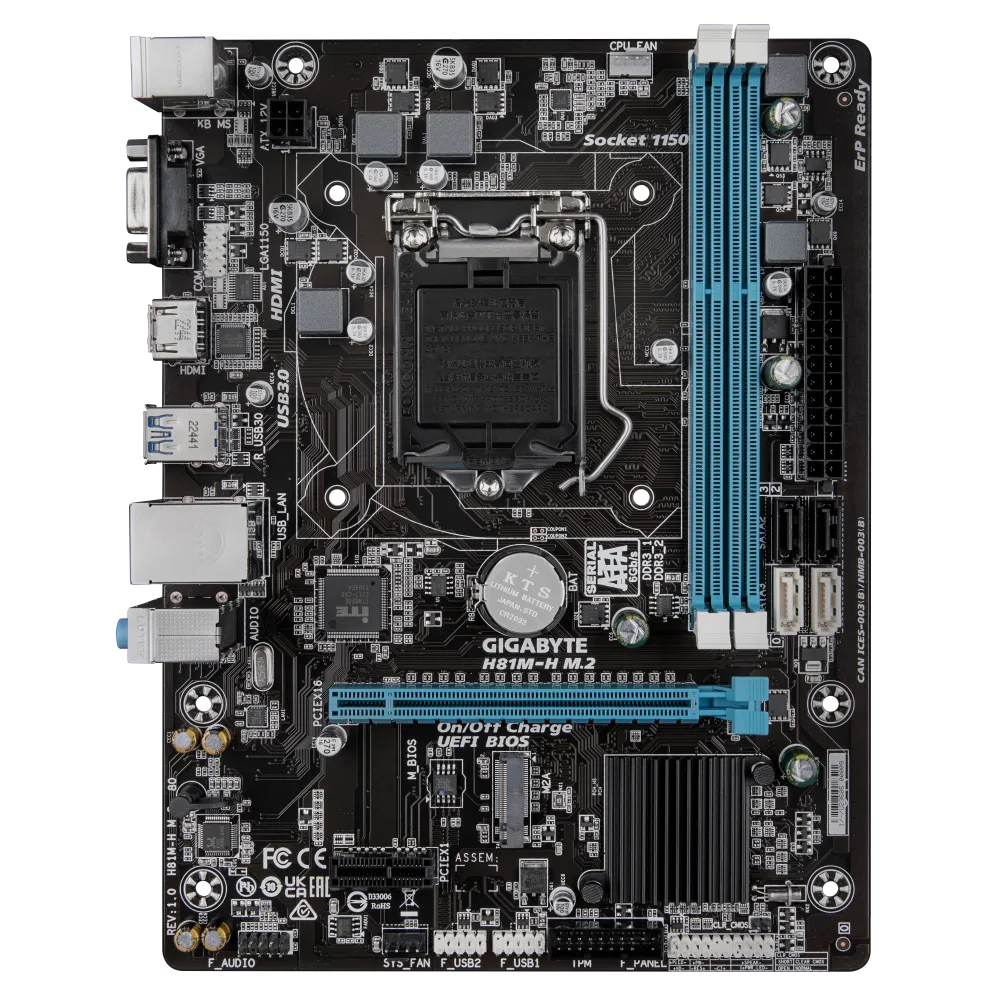

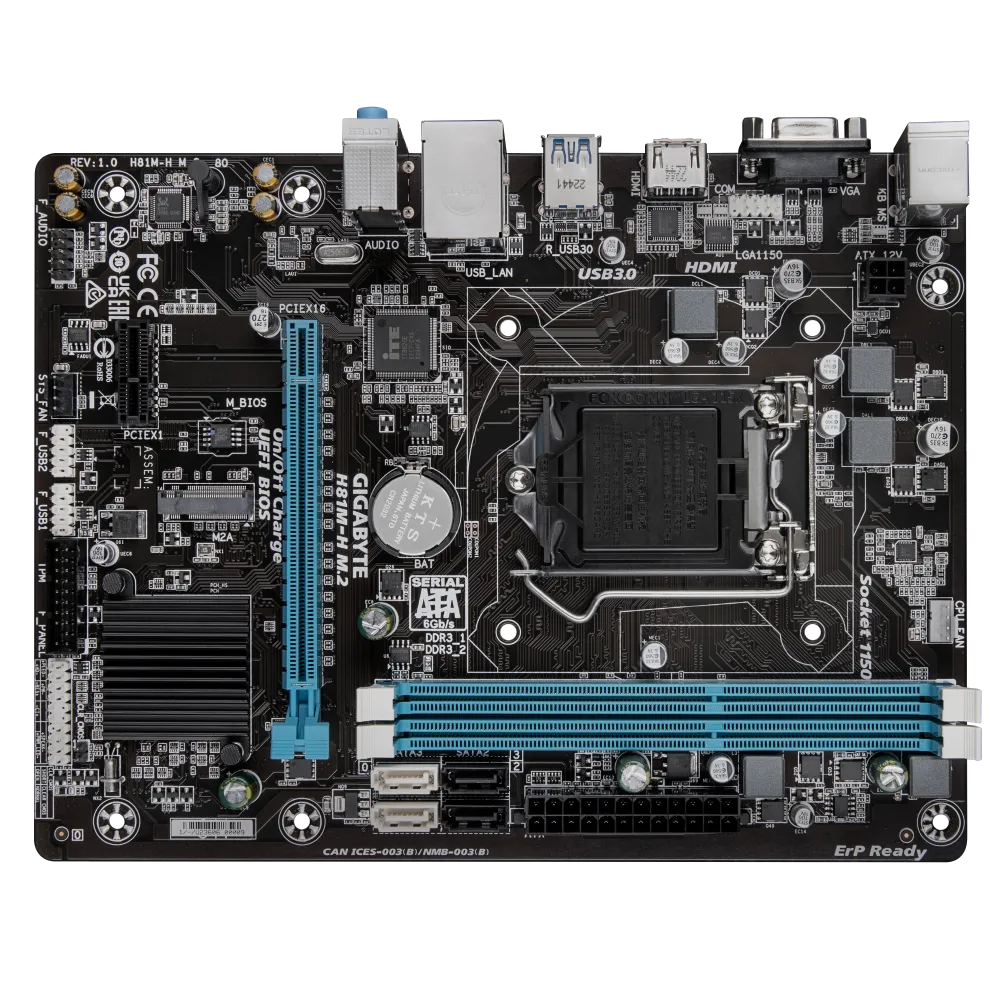

- Gigabyte H81M-H M.2
- CPU Support
- Supports 4th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package
- Chipset
- Intel® H81 Express Chipset
- Memory
- 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory; Supports DDR3 1600/1333 MHz memory modules; Dual channel memory architecture; Supports non-ECC and Extreme Memory Profile (XMP) memory modules
- Graphics
- Integrated Graphics Processor with Intel® HD Graphics support; 1 x D-Sub port (max resolution 1920x1200); 1 x HDMI port (max resolution 4096x2160 @ 24 Hz); Maximum shared memory of 1 GB
- Audio
- Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; Supports S/PDIF Out
- LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16; 1 x PCI Express x1 slot (PCI Express slots conform to PCI Express 2.0 standard)
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support); 2 x SATA 6Gb/s connectors; 2 x SATA 3Gb/s connectors
- USB
- 2 x USB 3.0/2.0 ports on the back panel; 6 x USB 2.0/1.1 ports (2 on the back panel, 4 via internal headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 1 x M.2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 2 x SATA 3Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; 1 x Trusted Platform Module (TPM) header

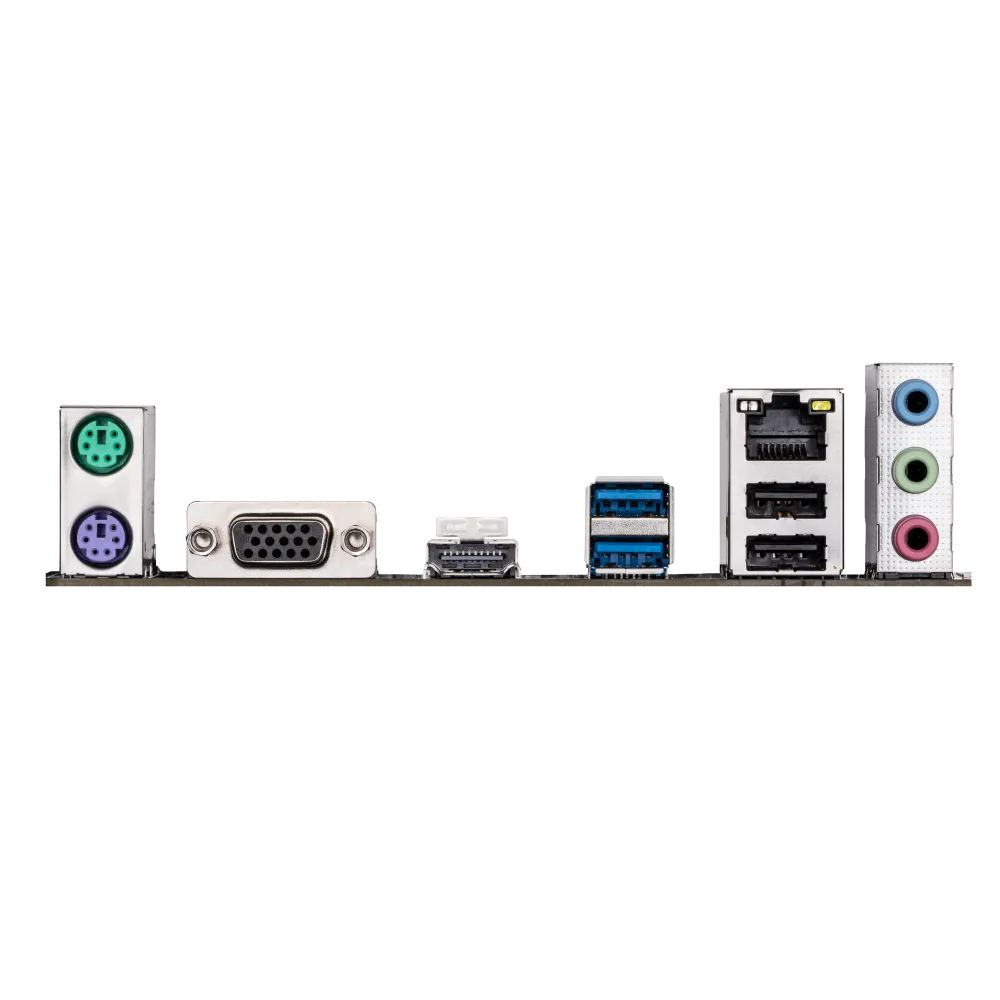

- Back Panel Connectors
- 1 x PS/2 mouse port; 1 x PS/2 keyboard port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.0/2.0 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
- Form Factor
- Micro ATX Form Factor; 22.6cm x 17.4cm
- Unique Features
- GIGABYTE Ultra Durable™ Technology; GIGABYTE UEFI BIOS; GIGABYTE On/Off Charge™ for USB devices; LAN with high ESD Protection; Solid capacitors for CPU VRM design
