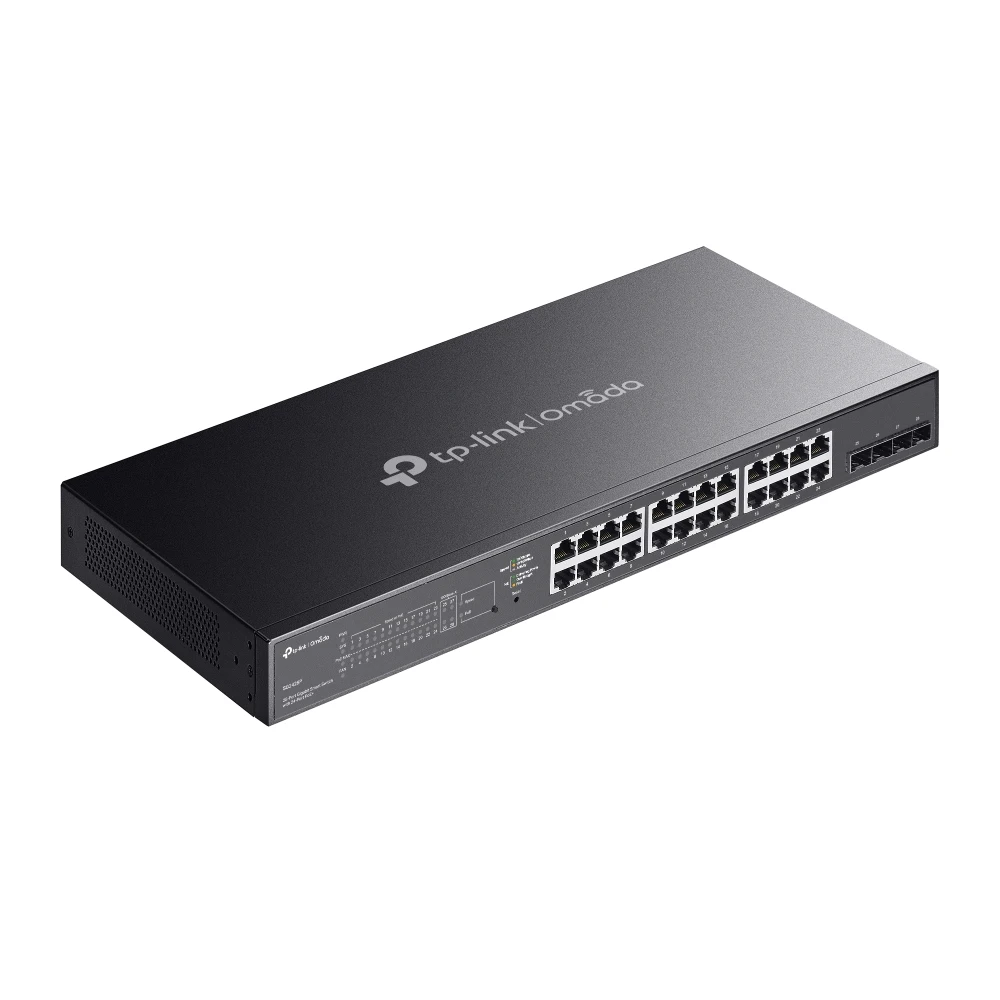

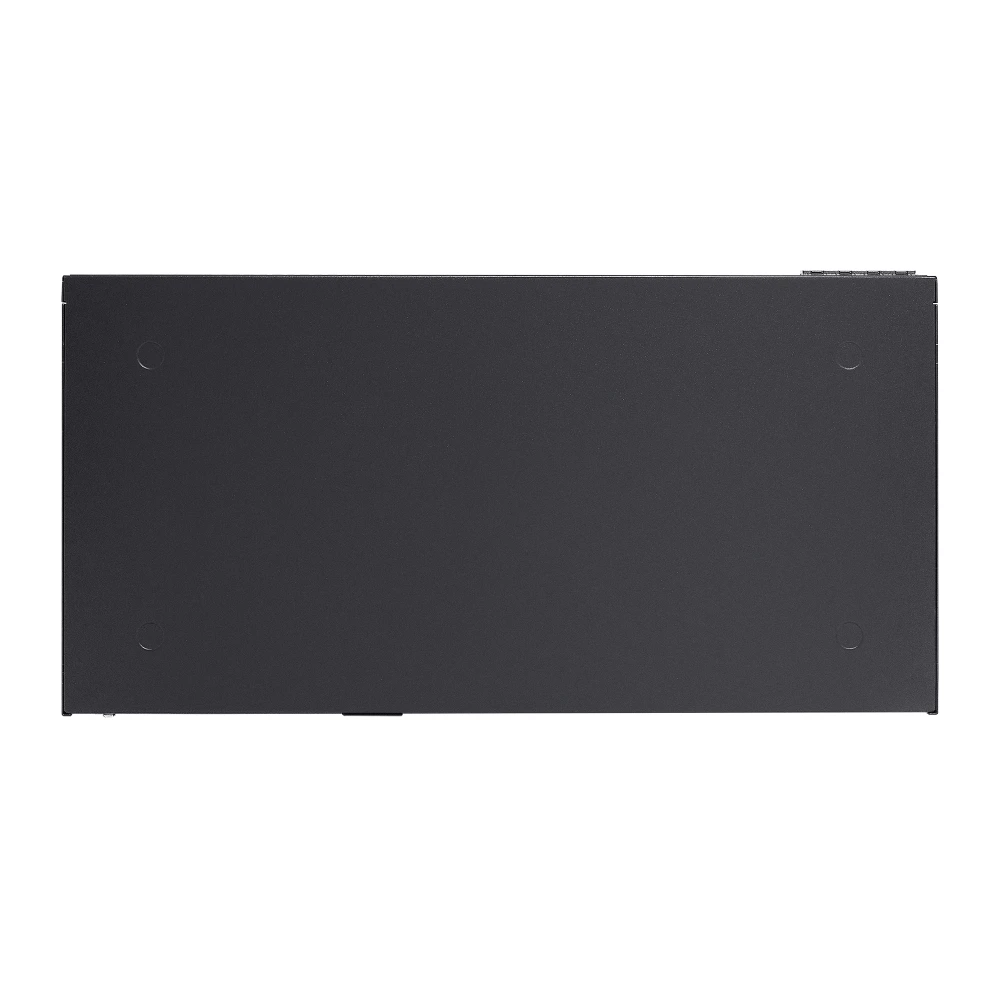

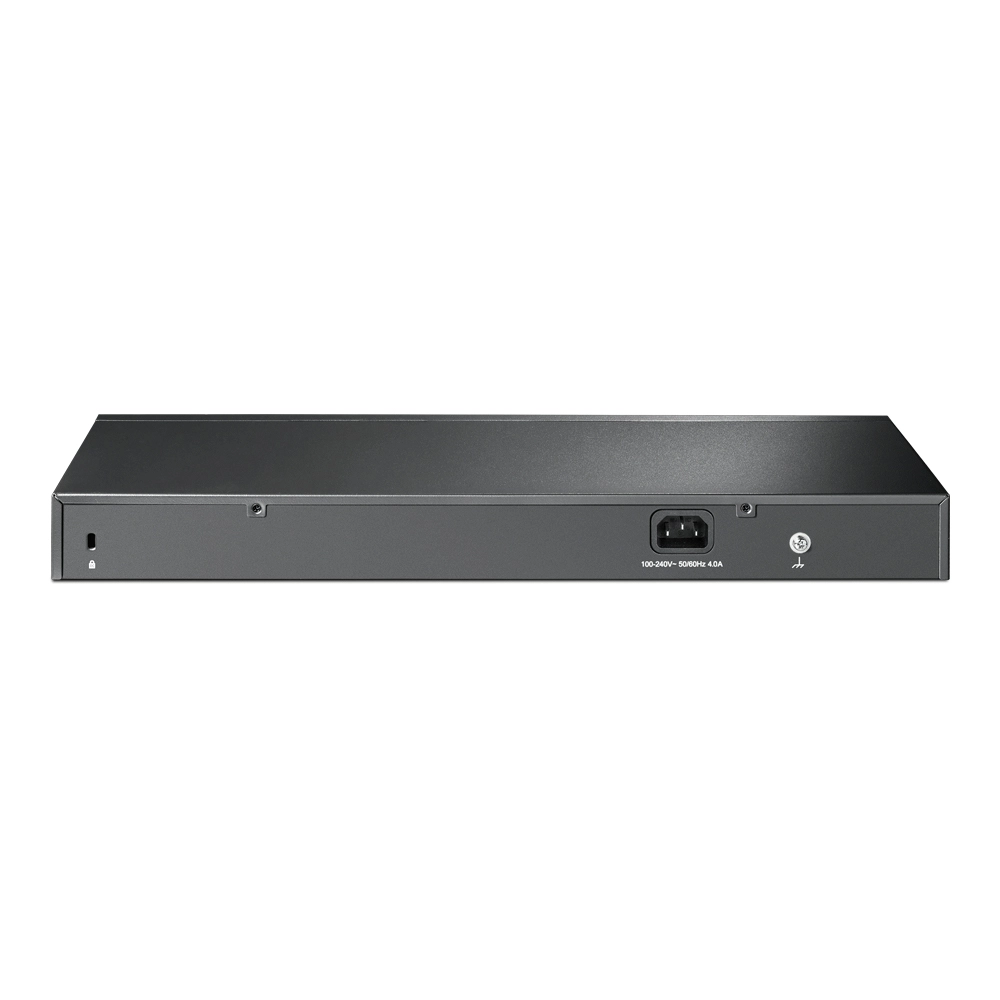

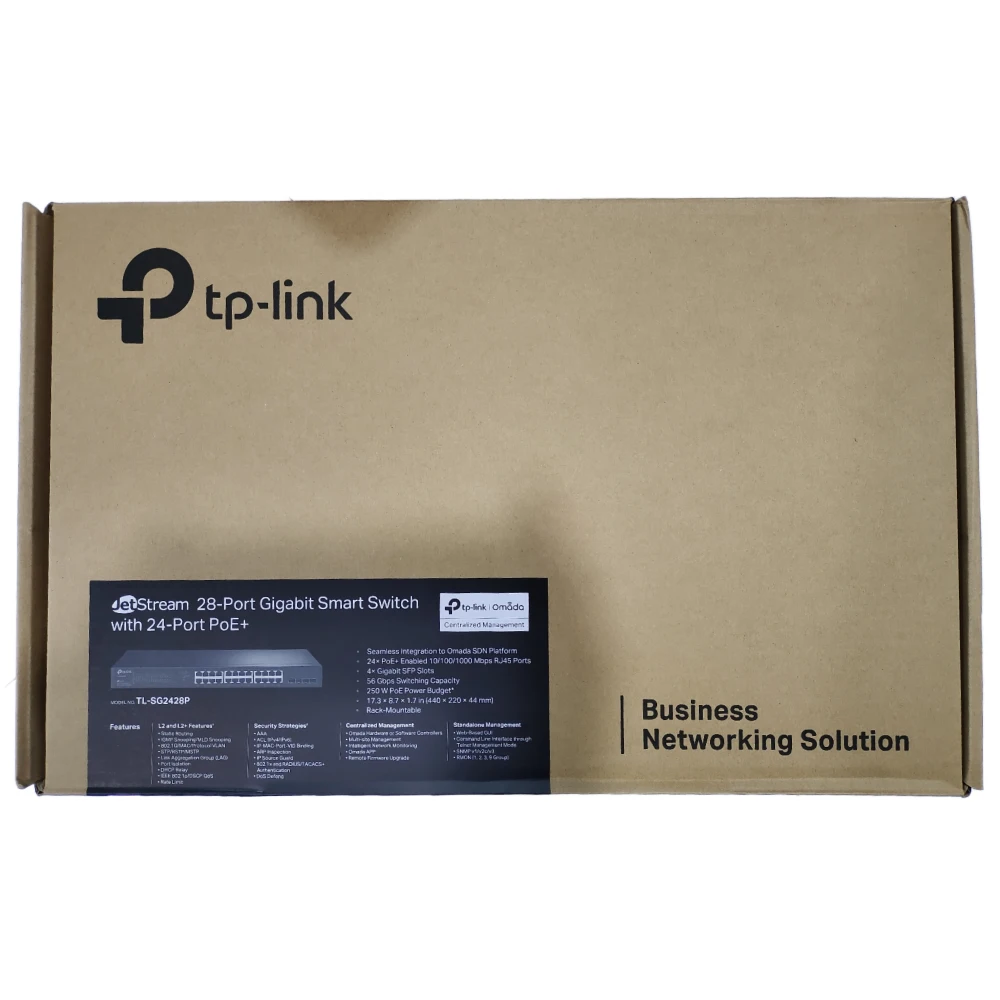

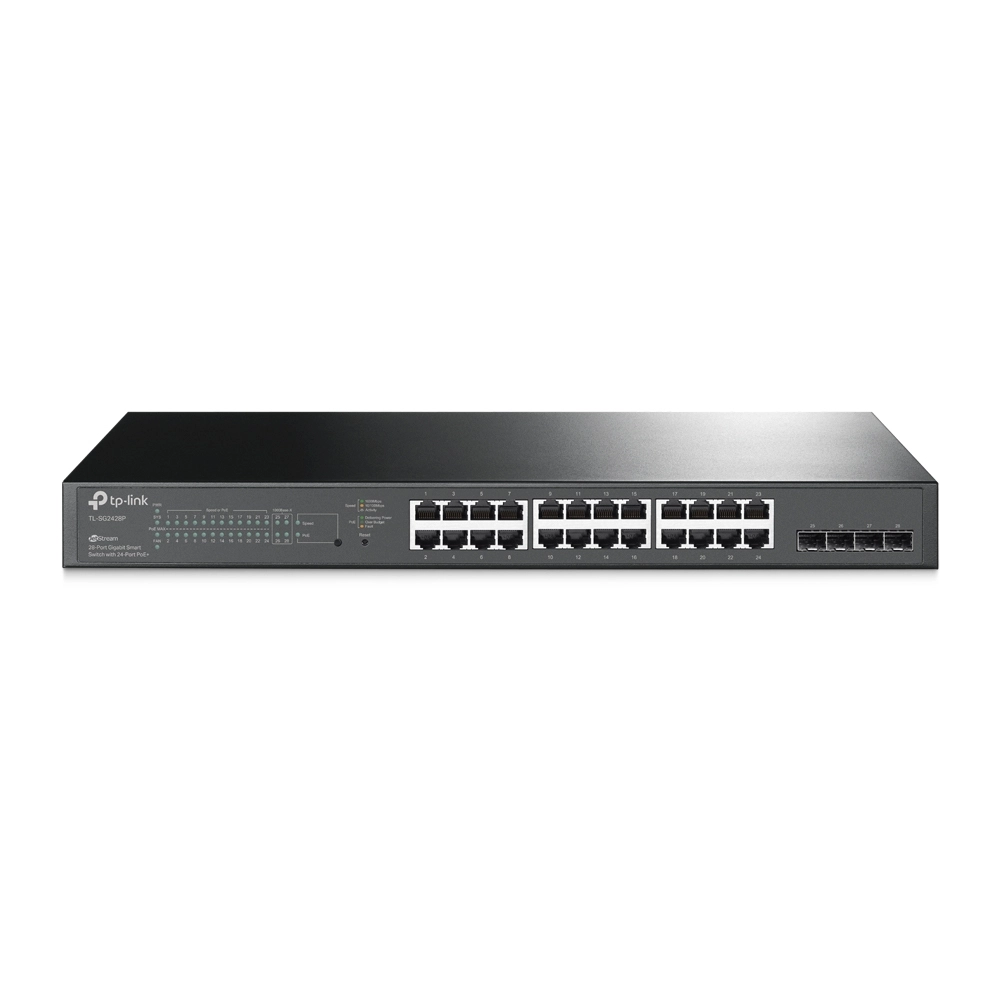

TP-Link Poe Switch 28 Port L2+ Managed (24 GE + 4 GE SFP Port) SG2428P
- Product ID: A0044
- Item CD: TEERG
- Model: SG2428P
- Warranty: 3 years From TPLINK Service Center
- Product URL: View Product
₹16,604
In StockEx Tax: ₹16,604
MRP: ₹35,999
For Any Query : 78498 31942
| Feature | Description |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W* |
| Dimensions (W x D x H) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • V1: 308.6 W (110V/60Hz with 250 W PD connected); 32.1 W (110 V/60 Hz with no PD connected) • V2: 294.7 W (220 V/50 Hz) (with 250 W PD connected) • V3: 291.9 W (110V/60Hz) (with 250 W PD connected) • V4: 306.9 W (110V/60Hz) (with 250 W PD connected) |
| Max Heat Dissipation | • V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (with no PD connected) • V2: 1005.66 BTU/hr (220V/50 Hz) (with 250 W PD connected) • V3: 996.01 BTU/hr (110V/60Hz) (with 250 W PD connected) • V4: 1047.30 BTU/hr (110V/60 Hz) (with 250 W PD connected) |
Performance
| Feature | Description |
|---|---|
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | • V1, V2, V4 and above: 8K • V3: 16K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
Software Features
| Feature | Description |
|---|---|
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port/Flow based Rating Limit • Storm Control: Broadcast/Multicast/Unknown-Unicast Control (kbps/ratio) |
| L2 and L2+ Features | • 16 IP Interfaces (IPv4/IPv6) • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server and Relay • Link Aggregation (Up to 8 groups, 8 ports per group) • Spanning Tree Protocol (STP, RSTP, MSTP) • Flow Control: 802.3x • Port Mirroring |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Reboot Schedule |
| VLAN | • VLAN Group: Max. 4K VLANs • 802.1Q Tag VLAN • MAC VLAN: 12 Entries • GVRP, Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-based ACL • MAC ACL, IP ACL, IPv6 ACL • Policy Actions: Mirror, Rate Limit, Redirect, QoS Remark |
| Security | • AAA, 802.1X Authentication (PAP/EAP-MD5, MAB) • IP/IPv6-MAC Binding, DHCP Snooping • DoS Defend • Static/Dynamic/Permanent Port Security • IP/Port/MAC based access control • Secure Web and CLI Management (HTTPS, SSHv1/SSHv2) |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 SNMP, SSH, SSL • IPv6 TFTP, Ping6, Tracert6 |
| MIBs | • MIB II, Bridge MIB, RMON MIB (1, 2, 3, 9 groups) • Radius MIB, TP-Link private MIBs |
Management
| Feature | Description |
|---|---|
| Omada App | Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
| Cloud Access | Yes, through Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller |
| Zero-Touch Provisioning | Yes (Supported by TL-SG2428P v1, v3 and above; not supported by TL-SG2428P v2) |
| Management Features | • Web-based GUI, CLI through Telnet • SNMP v1/v2c/v3, SNMP Trap/Inform • Dual Image, Dual Configuration • CPU Monitoring, Cable Diagnostics • EEE, SNTP, System Log |
