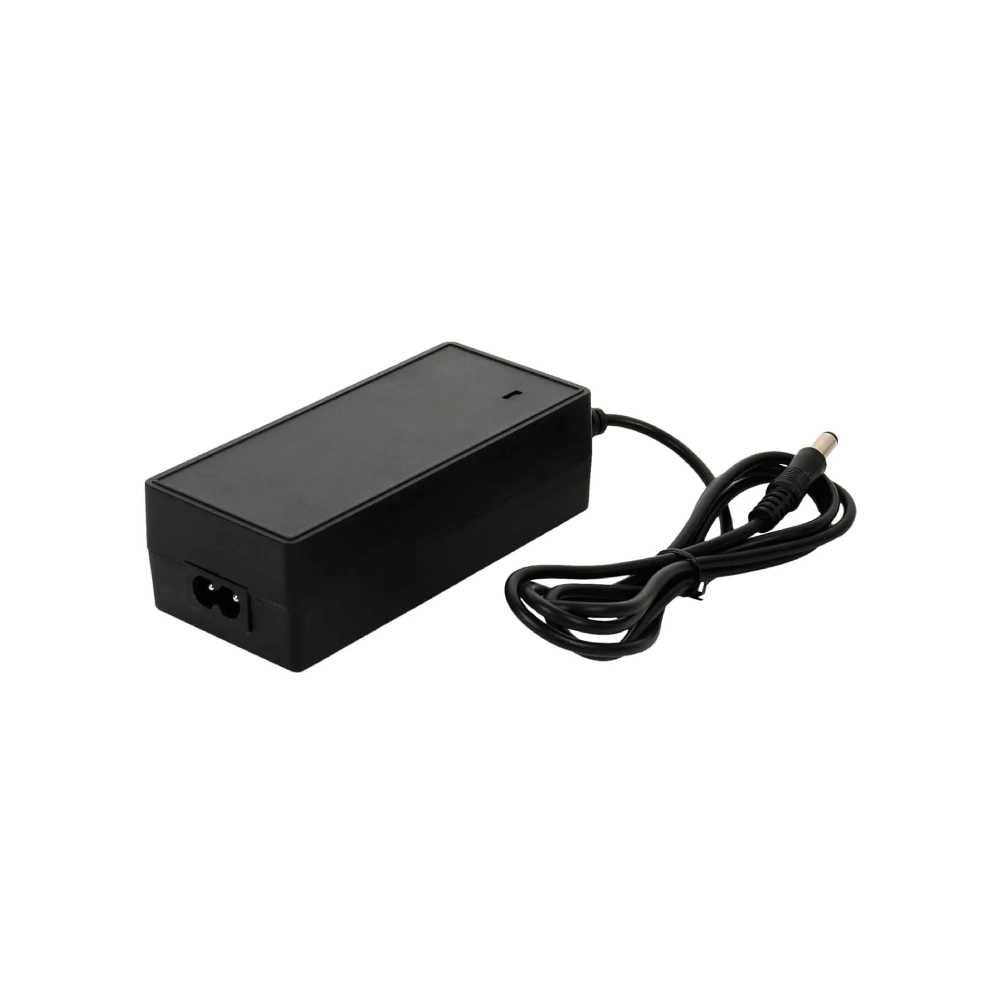

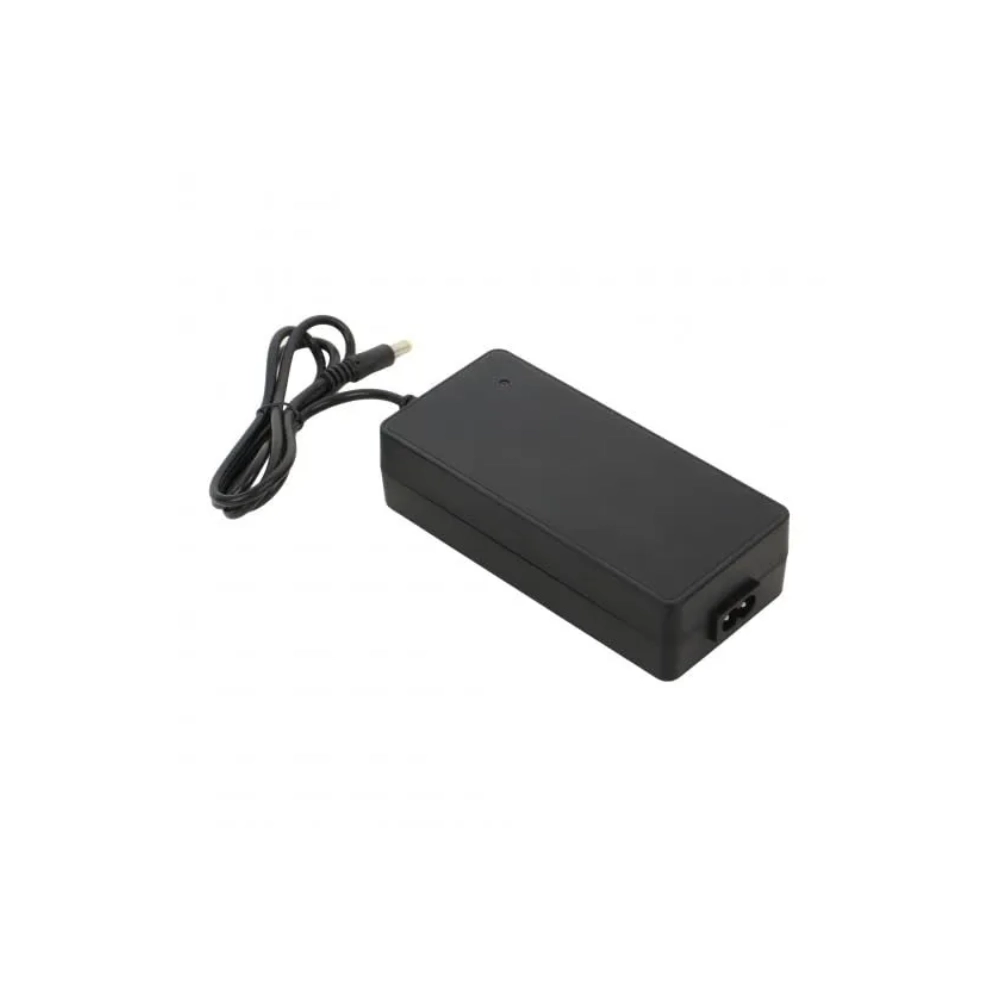

Discover the Fyber FYDS123 CCTV Adapter on Mega Jaipur - a tech essential designed for CCTV efficiency. Ideal for heavy-duty performance and continuous power supply, you can count on for your security devices. Shop Now!
| Feature | Specification |
|---|---|
| VAC Voltage | 150~265VAC |
| Output Voltage | 12VDC |
| Rated Power | 36W |
| Ripple & Noise (max.) | 70mV (max) |
| Voltage Adj. Range | NA |
| Device | Primary-Side Regulation CV/CC Switcher for Adapters and Chargers |
| Device (frequency) | 85KHz |
| VDS Voltage | 600V (max) |
| Line Regulations | ±1% |
| Load Regulations | ±5% |
| SCP | Output short-circuit protection |
| ARP | Auto-restart protection reduces power delivered by >90% for output short-circuit and control loop faults (open and shorted components) |
| ON/OFF Control | Provides constant efficiency down to very light loads – ideal for CEC regulations |
| Line UV | Line brown-in/out protection |
| OV | Line overvoltage shutdown extends line surge withstand |
| OTP | Accurate thermal shutdown, hysteretic or latching |
| Efficiency (Typical) | 80% |
| Frequency Range | 47~63Hz |
| Storage Temperature | 0-50°C |
