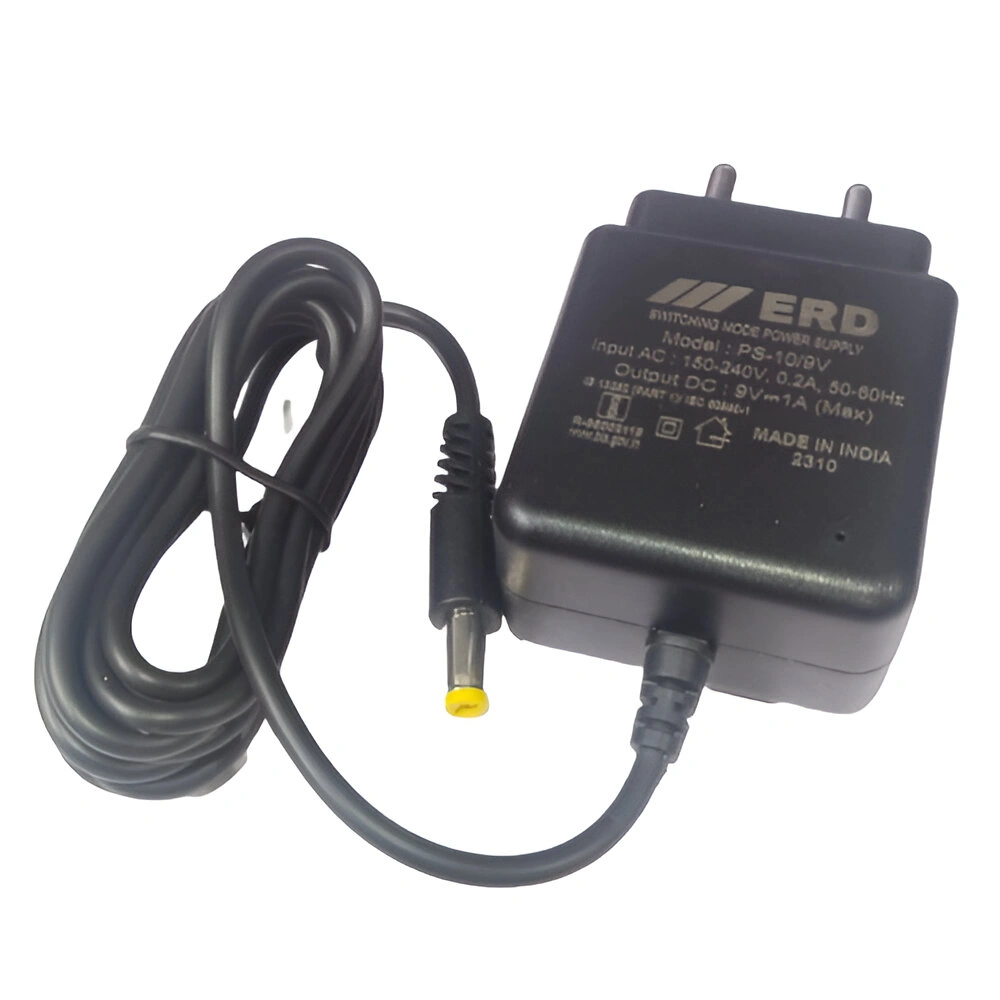

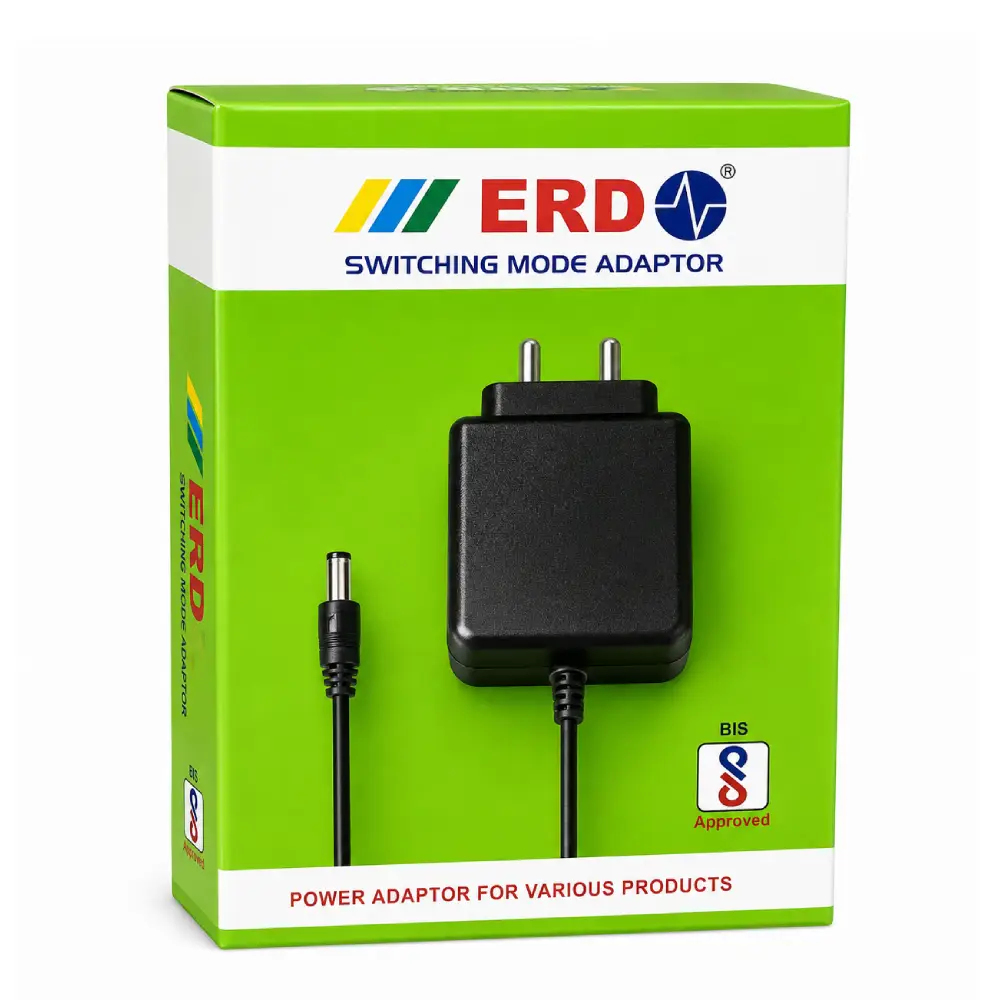

ERD Power Adapter 9v/1a DC Pin (PS022)
- Product ID: P3831
- Item CD: HXLSQ
- Model: PS022
- Warranty: 1 Year from ERD Service Center
₹156
In StockEx Tax: ₹156
MRP: ₹405
Master Box - 20pcs
| Specifications | |
|---|---|
| Input Voltage | 150V to 285V AC, 50/60Hz |
| Output Voltage | 9V DC |
| Output Current | 1 Amp (Max.) |
| Output Wattage | 9 Watt (Max.) |
| Output DC Plug Size | 5.5×2.1mm (Grip Tag DC Pin – Standard DC Barrel Jack) |
| Cable Length | 1.5 Meters |
| Head Dimensions | 60mm x 48mm x 28mm (approx.) |
| Features | |
| BIS Approved | Bureau of Indian Standards |
| Highly Integrated SMPS Switcher I.C Design | Yes |
| Surge Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current, Over Voltage & Over Load Protection | Yes |
| High-efficiency, Low Energy Consumption | Yes |
| Low Ripple Voltage (mV P-P) | <5% |
| Works Under Low Voltages | Protects High Voltage Where Linear Fails |
| Plug In Type | Yes |
| Applications | |
| CCTV Camera / DVR | Yes |
| Arduino Power Supply | Yes |
| WLL / SET-TOP Box | Yes |
| LED Products (LED Strip Light, etc.) | Yes |
| Other Electronic Equipment | Yes |
| Package Includes | |
| Items | 1 x ERD DC Power Adapter 9V-1Amps |
