- Feature
- Description
- Model

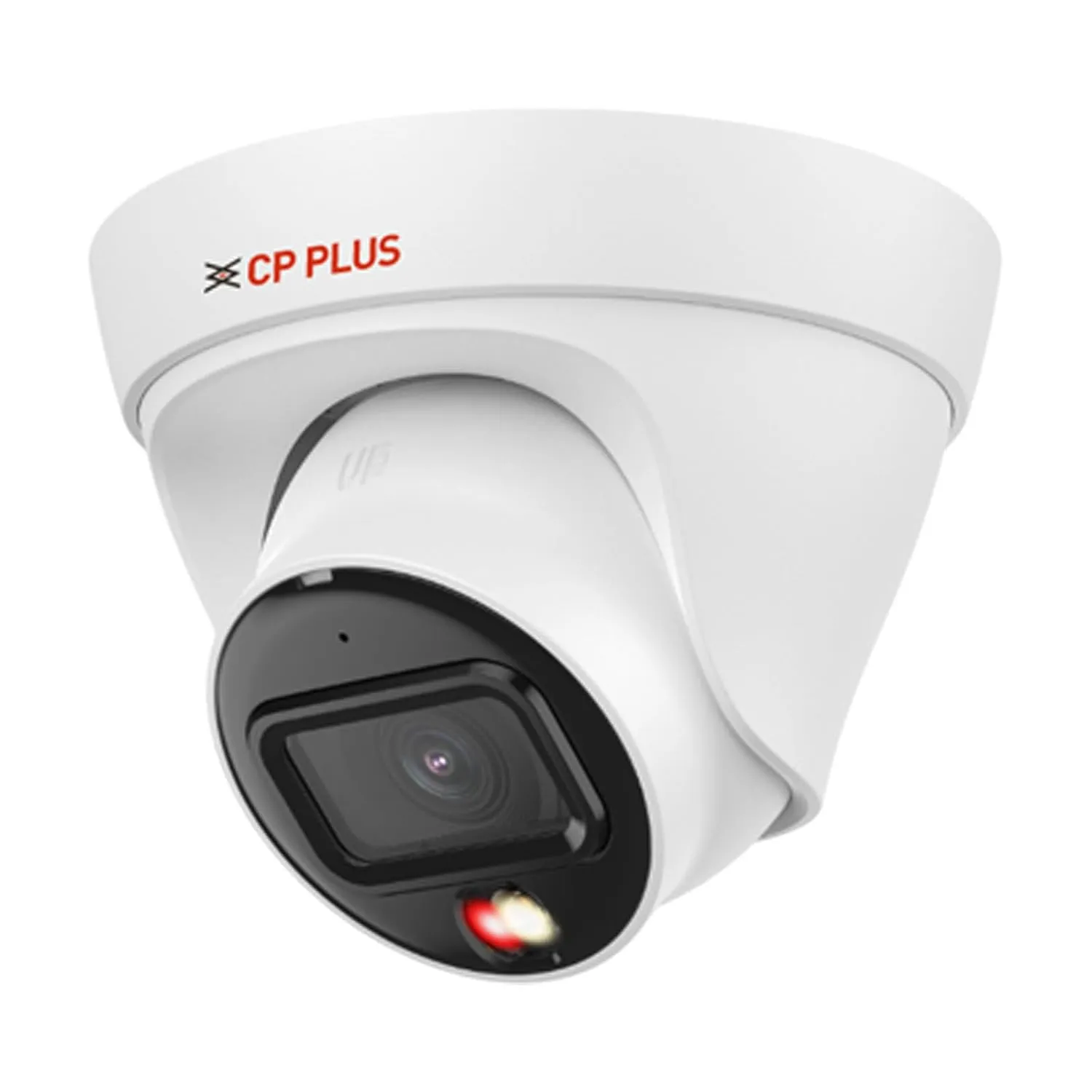

- CP-Plus DA81L3C-LQ
- Camera Type
- 8MP IP Illumax Hybrid Dome Camera
- Image Sensor
- 1/2.7" 8MP PS CMOS Image Sensor
- Resolution
- 8MP (3840 × 2160)
- Lens
- 3.6mm Fixed Lens, F1.4 Aperture
- Angle of View
- H: 86° | V: 49° | D: 100°
- Pan / Tilt / Rotation
- Pan 0°–360° | Tilt 0°–78° | Rotation 0°–360°
- Night Vision
- IR + Warm Light, Up to 30m
- Day / Night Mode
- Auto (ICR) / Color / B&W
- Video Compression
- Instastream, H.265, H.264, MJPEG (Sub Stream)
- Frame Rate
- 8MP @ 1–20fps | 4MP @ 1–30fps
- Wide Dynamic Range
- DWDR with BLC / HLC
- Audio
- Built-in Microphone
- Audio Compression
- G.711a, G.711Mu, PCM, G.726, AAC
- Smart Features
- IMD (Human & Vehicle Detection), Smart Search, ROI, Privacy Mask
- Motion Detection
- Support (4 Areas)
- Network Interface
- RJ-45 (10/100 Base-T Ethernet)
- Protocol Support
- ONVIF (S/G/T), IPv4/IPv6, HTTP, HTTPS, TCP/IP, RTSP
- Power Supply
- 12V DC / PoE (802.3af)
- Power Consumption
- Max 5.8W (PoE)
- Weatherproof Rating
- IP67
- Operating Temperature
- -40°C to +55°C
