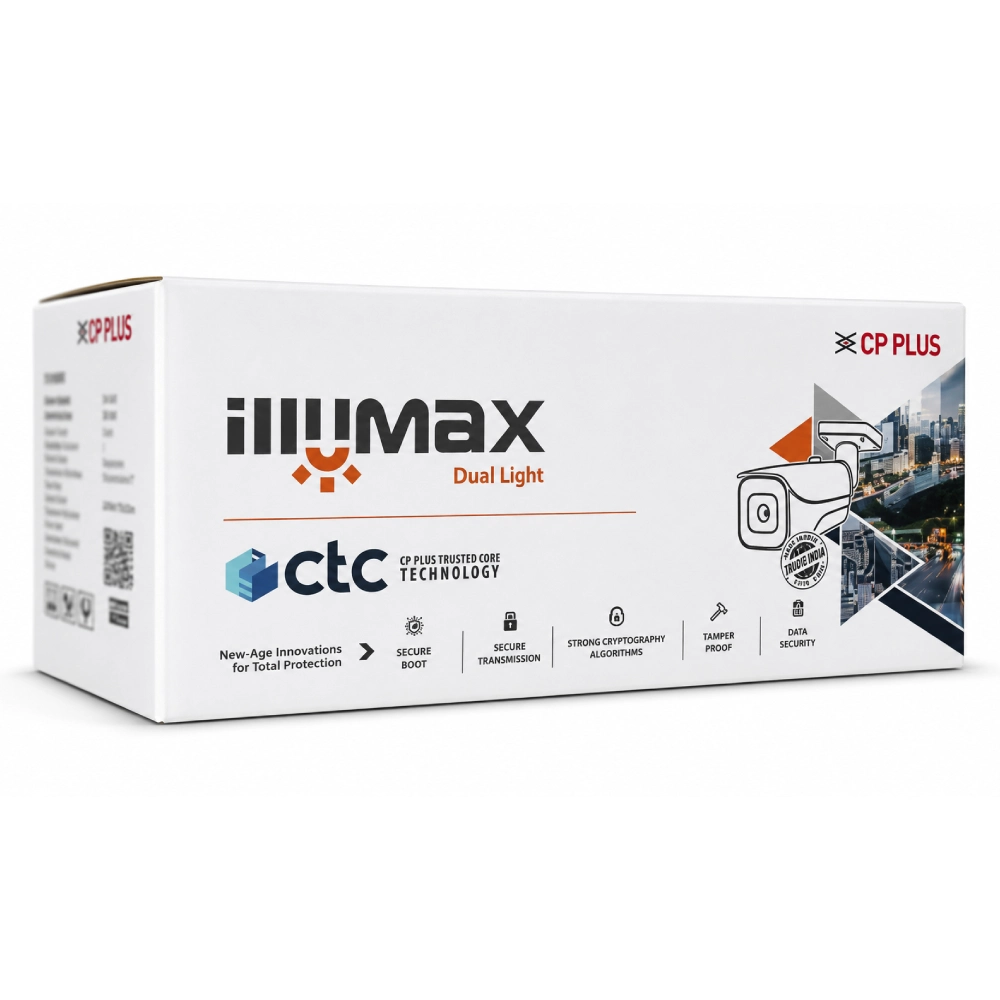

CP-Plus 4MP IP illumax Hybrid Bullet Camera WDR 3.6mm With Two Way Audio (TA41L3B-D-LQ)
- Product ID: A2318
- Item CD: YGNMU
- Model: CP-UNC-TA41L3B-D-LQ
- Warranty: 2 Years from CPPLUS Service Center
- Product URL: View Product
₹4,982
In StockEx Tax: ₹4,982
MRP: ₹8,900
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8 4MP PS CMOS Image Sensor (0.9071 cm) |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| RAM | 128 MB |
| ROM | 128 MB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Gain Control (AGC) | Auto/Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F1.4 |
| Lens Mount | M12 |
| Close Focus Distance | 1.5 m |
| DORI Distance (3.6mm lens) | Detect: 78.0 m, Observe: 31.2 m, Recognize: 15.6 m, Identify: 7.8 m |
| Lens | 3.6 mm Fixed Lens |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (sub stream only) |
| IR Number | 2 IR LED, 2 Warm light |
| IR Range | 30 meters |
| Warm Light Range | 30 meters |
| Smart IR | Support |
| Angle of View (3.6mm) | H: 78°, V: 42°, D: 92° |
| Smart Search | Works with Smart NVR for intelligent search, event extraction |
| Resolution |
4MP (2688×1520) / (2560×1440), 3MP (2304×1296), 2MP (1920×1080), 1.3MP (1280×960), 720p (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240) |
| Noise Reduction | 3D NR |
| Stream Capability | Triple stream |
| Frame Rate |
Main stream: 4MP (2688×1520) / (2560×1440) @ 1–25/30fps Sub stream 1: 720p, D1, VGA, CIF @ 1–25/30fps Sub stream 2: D1, VGA, CIF @ 1–25/30fps |
| Video Format | PAL/NTSC |
| Audio Compression | G.711a, G.711Mu, PCM, G.726 |
| OSD | Camera title, Date & Time |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 3 kbps–6144 kbps, H.264: 8 kbps–6144 kbps |
| Protocol | SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, HTTP, HTTPS, SNMPv3, TLS 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, G, T), unicast, multicast |
| Day/Night | Auto(ICR)/Color/B/W |
| Alarm Event | Network disconnection, IP conflict, illegal access, motion detection, video tampering, audio detection, SMD (human & vehicle), security exception |
| SMD | Supports human and vehicle classification |
| Mirror Function | Support |
| IR Control | Auto, Manual |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Support |
| Iris Control | Fixed |
| Smart Illumination | Support |
| User/Host | 6 users (Total bandwidth: 48 Mbps) |
| Browser Support | IE, Chrome, Firefox |
| Image Rotation | 0° / 180° |
