- Feature
- Specification
- Model

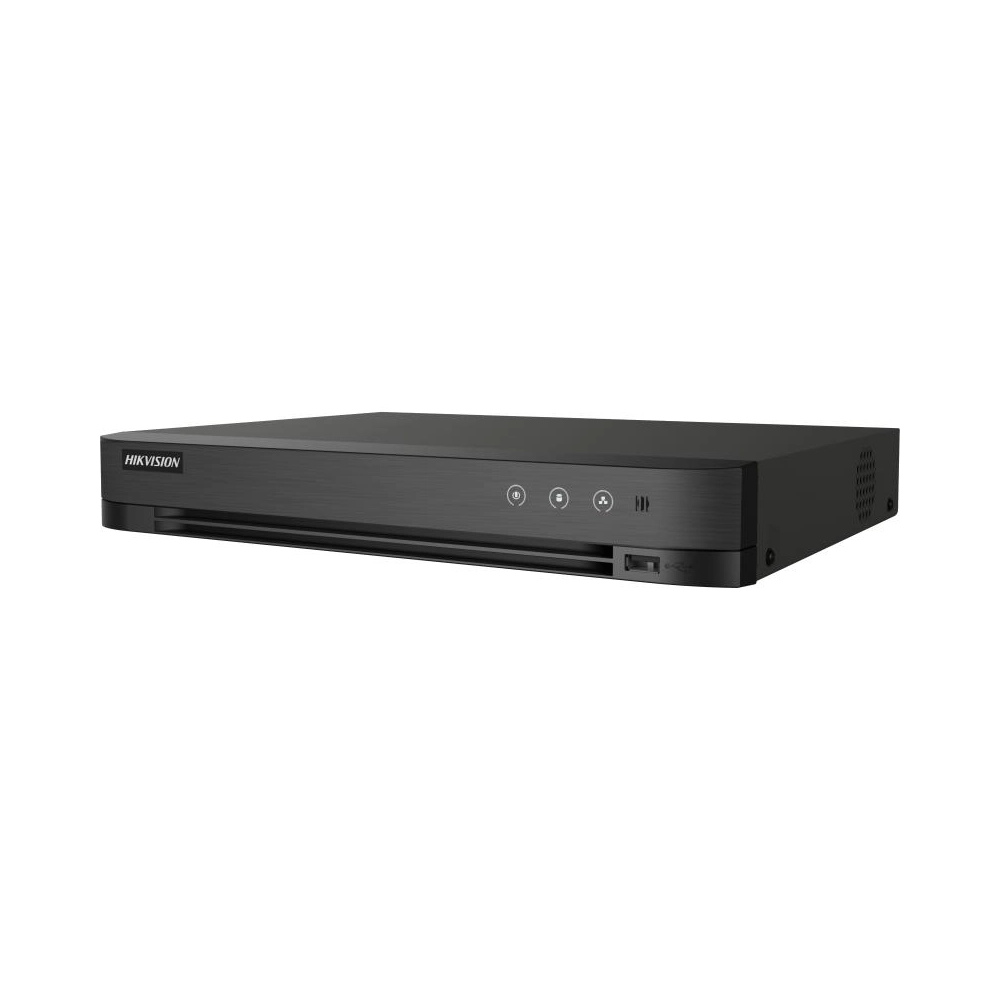

- iDS-7204HUHI-M1/X
- Video Compression
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Analog Video Input
- 4 channels, BNC interface (1.0Vp-p, 75 Ω)
- IP Video Input
- Up to 8 channels (up to 8 MP resolution)
- Recording Resolution
- Up to 8 MP
- Audio Input/Output
- 1-ch RCA (2.0 Vp-p, 1 kΩ) / 4-ch RCA (linear, 1 kΩ)
- HDMI/VGA Output
- 1-ch HDMI (up to 2K), 1-ch VGA (up to 1080p)
- CVBS Output
- 1-ch, BNC
- Playback
- Up to 4-ch synchronous playback
- SATA
- 1 SATA interface, up to 12 TB capacity
- USB
- 1 x USB 2.0, 1 x USB 3.0
- Network Interface
- 1 RJ-45 10/100 Mbps Ethernet
- Alarm In/Out
- 4/1
- Smart Features
- Human/Vehicle classification based on deep learning
- Power Supply
- 12V DC
- Power Consumption
- ≤ 10 W (without HDD)
- Dimensions
- 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
- Weight
- 1.16 kg
