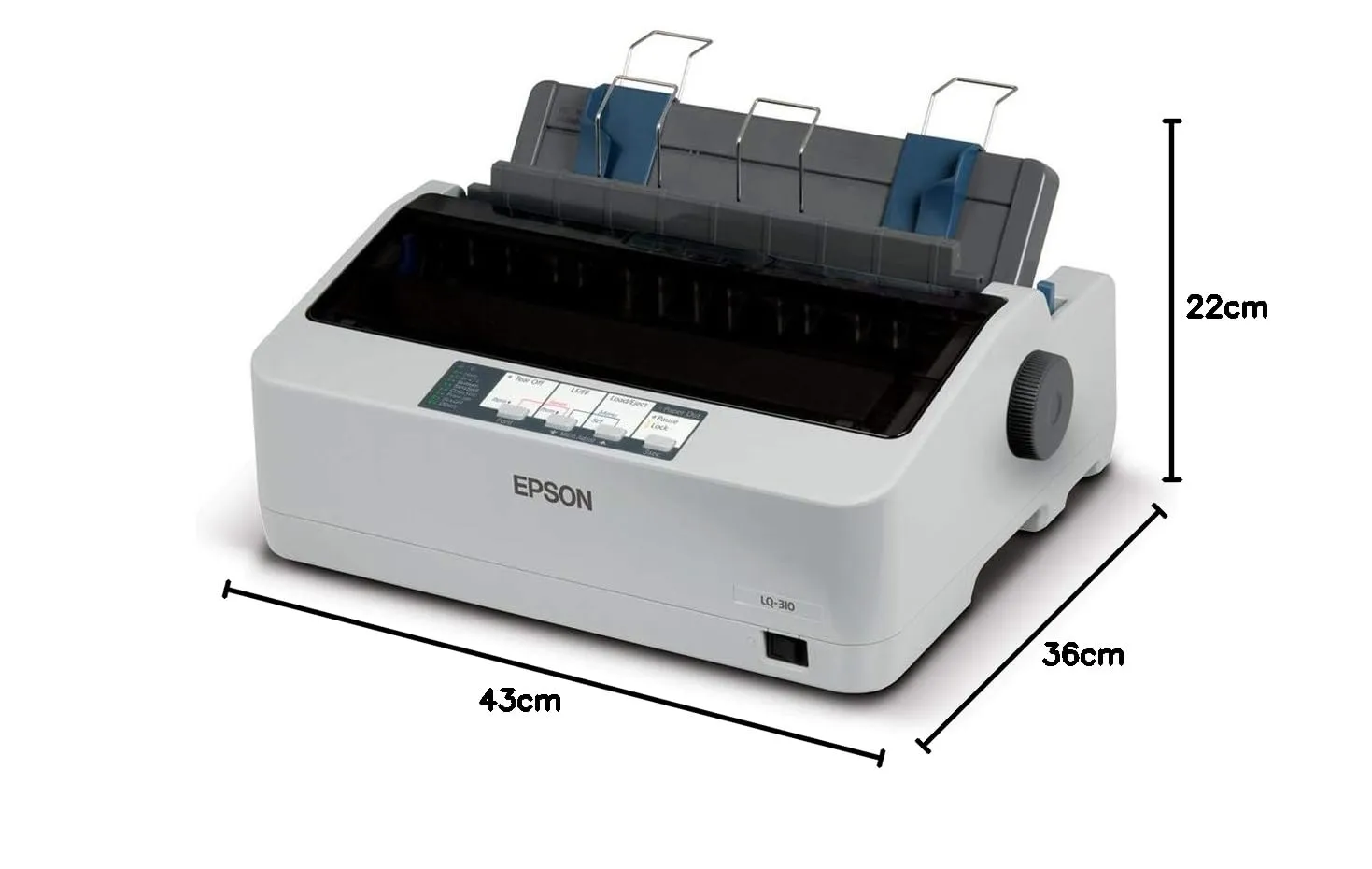

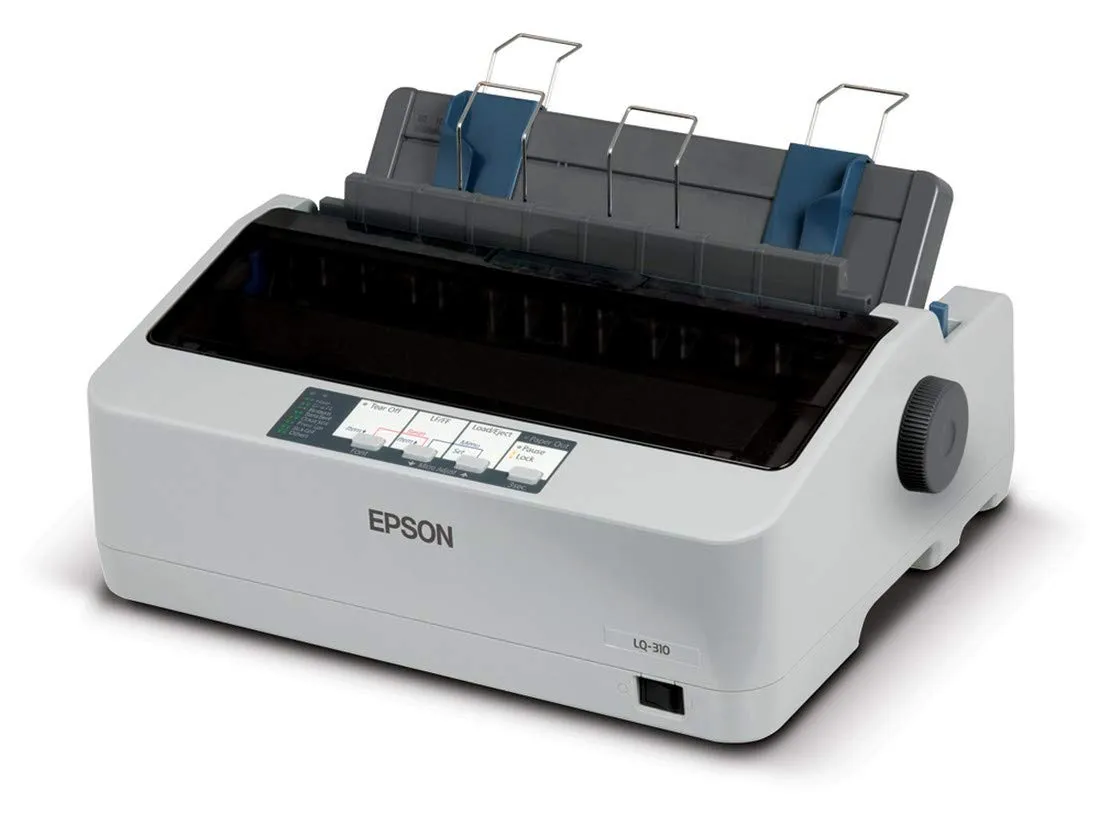

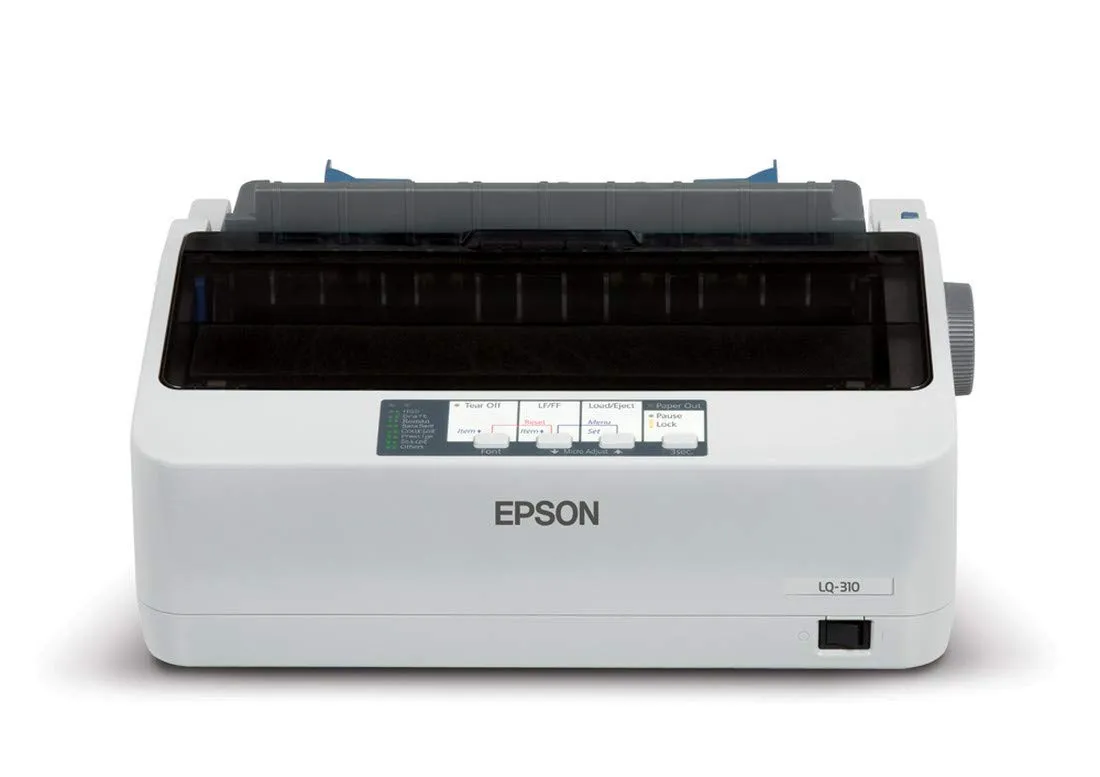

Epson Dot Matrix Printer 24 Pin LQ-310

Product ID: P964
Item CD: 03EZI0W
Model: LQ310
Master Box: 1
Warranty Period: 1 Year On Site from EPSON / Toll Free No:1800-425
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here

Call For Price and Availability: 70738 88300

Specifications

Print Method: Impact dot matrix
Control Panel: 4 switches and 5 LEDs
Print Direction: Bi-direction with logic seeking
Number of Pins in Head: 24 pins
Control Code: ESC/P2 and IBM PPDS emulation
MTBF: Approx. 10,000 POH (25% Duty)
Printhead Life: Approx. 400 million strokes/wire
Mean Print Volume Between Failure (MVBF): Approx. 20 million lines (Except print head)
Character Sets: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap Fonts: Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional
Scalable Fonts: Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)
Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Manual Insertion: Rear in, Top out
Push Tractor: Rear in, Top out
Cut Sheet (Single Sheet): Length: 100 ~ 364 mm (3.9 ~ 14.3") Width: 100 ~ 257 mm (3.9 ~ 10.1") Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")
Cut Sheet (Multi-part Forms): Length: 100 ~ 364 mm (3.9 ~ 14.3") Width: 100 ~ 257 mm (3.9 ~ 10.1") Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)
Envelope (No.6): Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
Envelope (No.10): Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
Continuous Paper (Single Sheet): Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0") Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0") Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
Continuous Paper (Multi-part Forms): Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0") Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0") Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
Roll Paper: Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")
Ribbon Cartridge Black: Approx. 2.5 million characters (Draft 10 cpi, 48 dots/character)
Temperature: 5 ~ 35°C
Humidity: 10 ~ 80 % RH
Acoustic Noise: Approx. 53 dB(A) (ISO 7779 pattern)
Input Data Buffer: 128KB
