- Radio/Range
- 2.4 GHz to 2.5 GHz (ISM Band)
- Adaptive Frequency Hopping
- Bluetooth v4.2
- 100 m (300 ft)
- Line of sight
- Battery
- 2400 mAh Li-ion minimum
- Number of Scans
- Up to 50,000 scans per charge
- Expected Duration of Operation
- 14 hours
- Expected Charge Time
- 4.5 hours
- User Indicators
- Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)
- Dimensions (L x W x H)
- 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)

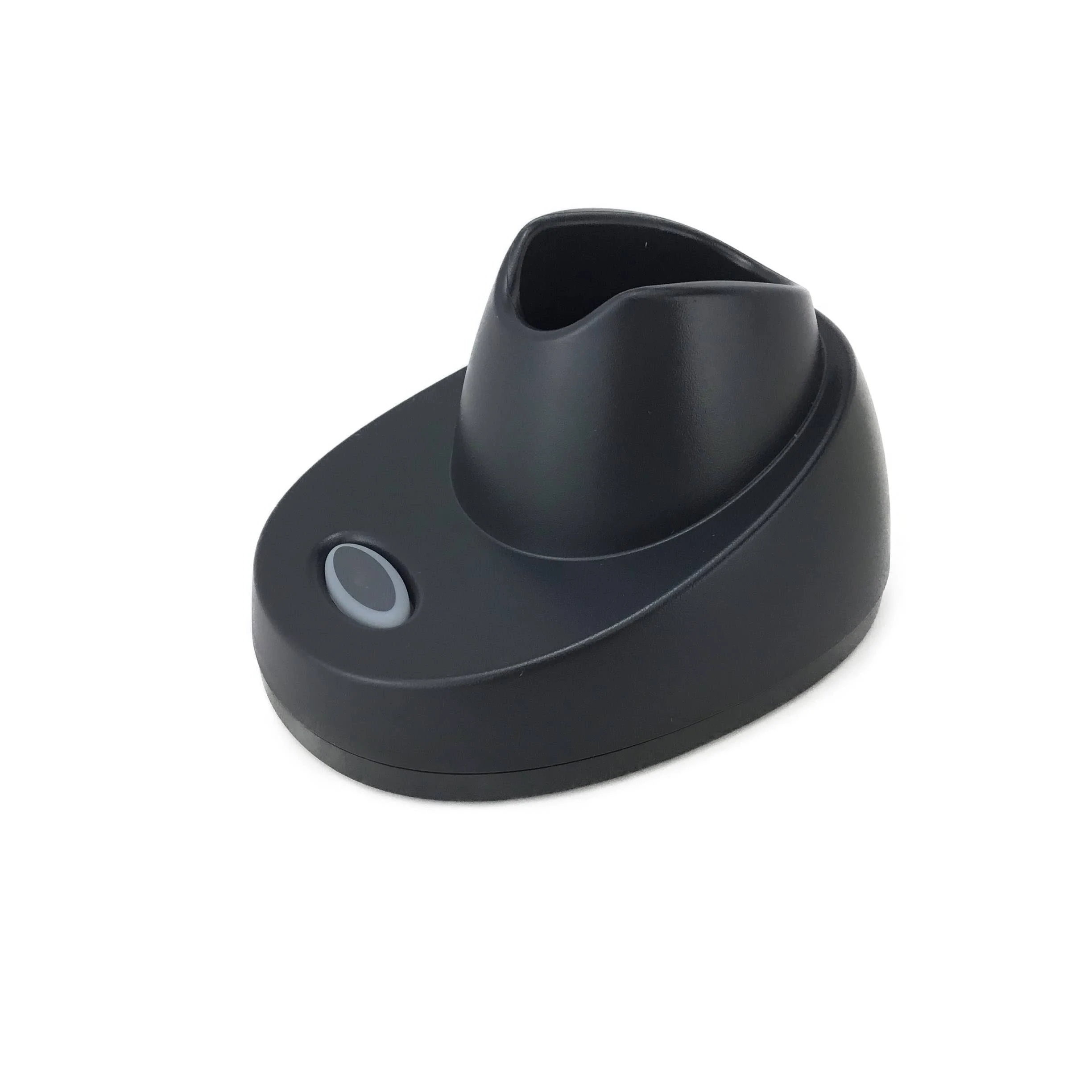

- Charger/Communication Base
- CCB01-010BT-V1N 123 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
- Scanner Weight
- 210 g (7.4 oz)
- Charger/Communication Base Weight
- 179 g (6.3 oz)
- Operating Power (Charging)
- Charger/Communication Base: 5W (1A @ 5V with power supply); 2.5W (0.5A @ 5V with USB)
- Standby Power
- Charger/Communication Base: 0.5 W (0.1 A @ 5V)
- Host System Interfaces
- USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS488)
- Operating Temperature
- Scanner: 5°C to 40°C (41°F to 104°F); Charging: 5°C to 40°C (41°F to 104°F)
- Non-Charging
- 0°C to 50°C (32°F to 122°F)
- Charger/Communication Base
- 5°C to 40°C (41°F to 104°F)
- Non-Charging Temperature
- -40°C to 60°C (-40°F to 140°F)
- Storage Temperature
- -40°C to 60°C (-40°F to 140°F)
- Charger/Communication Base Storage
- -40°C to 70°C (-40°F to 158°F)
- Electrostatic Discharge (ESD)
- Scanners and Cradles: ±8 kV indirect coupling plane, ±15 kV direct air
- Humidity
- 0% to 95% relative humidity, non-condensing
- Drop Spec.
- 1.8 m (6 ft) drops to concrete
- Environmental Sealing
- IP52
- Light Levels
- 0 to 100,000 lux (9,290 to 10,000 foot candles)
- Scan Pattern
- Area Image (1040 x 720 pixel array)
- Motion Tolerance
- 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
- Print Contrast
- 15%
- Scan Angle
- Horizontal: 39.2° nominal; Vertical: 27.4° nominal
- Roll, Pitch, Skew
- ±180°, ±65°, ±70°
- Barcode Types
- Reads standard 1D, PDF, 2D, and DotCode symbologies
- Warranty
- 3-year factory warranty
