TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point

Product ID: A0060
Item CD: 1212UIO
Model: EAP110-OUTDOOR
Master Box: 10
Warranty Period: 3 Years From TPLINK Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For Any Query : 78498 31942

Specifications

Category: Specifications

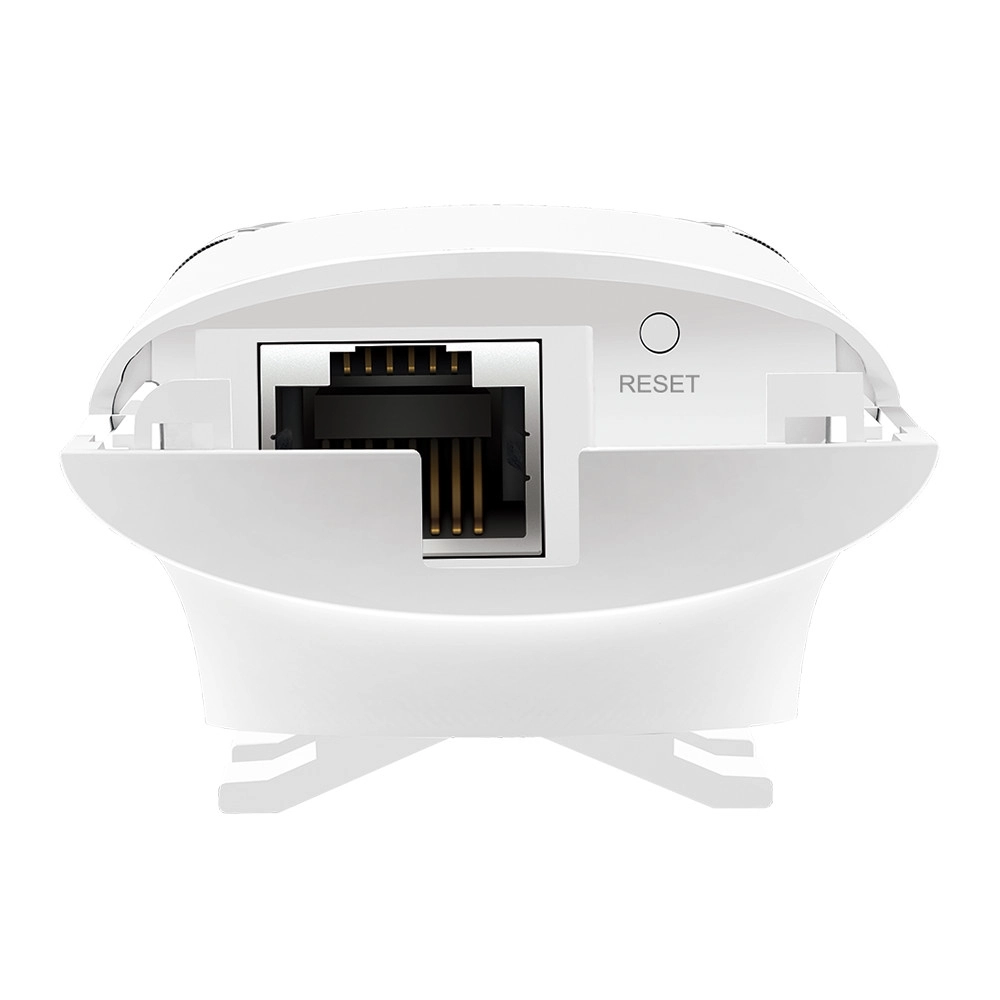

Interface: Fast Ethernet (RJ-45) Port (Supports Passive PoE)
Button: Reset
Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption: 3.12 W

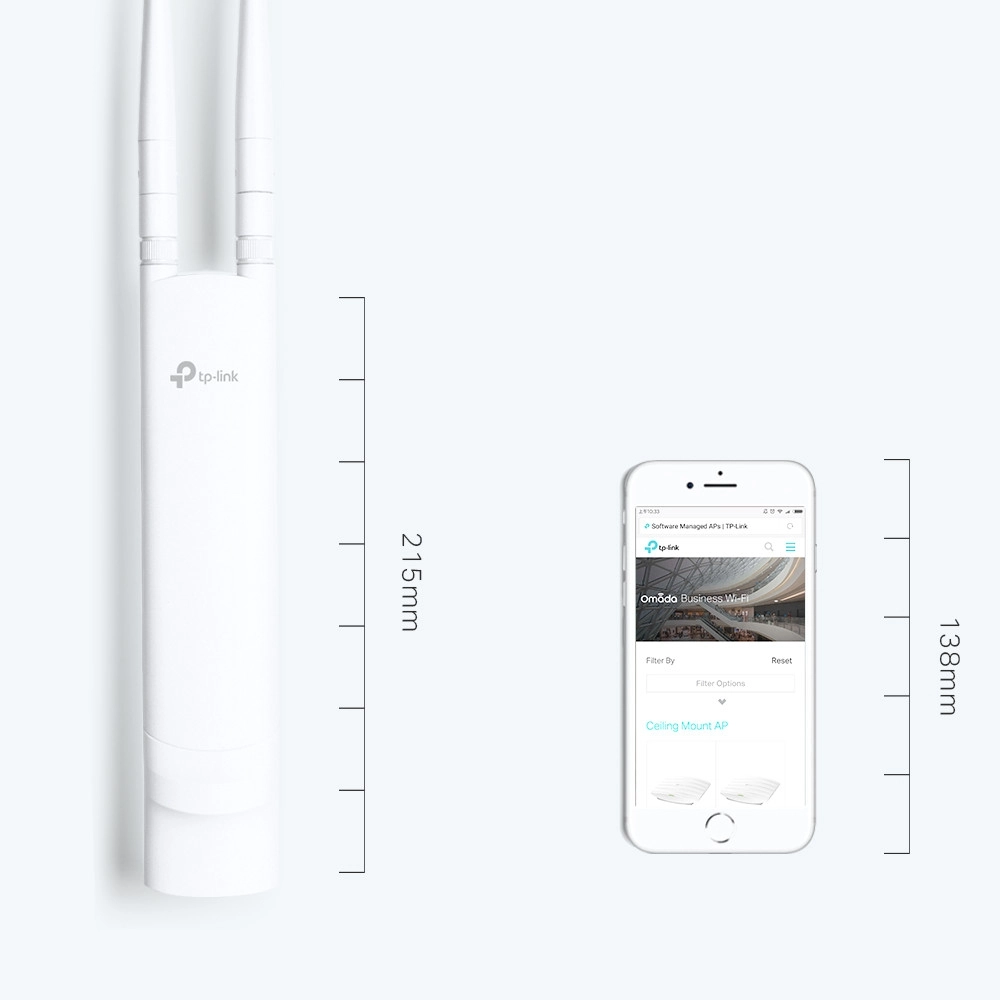

Dimensions (W x D x H): 8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm)
Antenna Type: 2× 3 dBi External Omni waterproof
Weatherproof Enclosure: IP65
Mounting: Pole / Wall Mounting (Kits included)
Wireless Client Capacity: 100+
Concurrent Clients: 100+
Wireless Standards: IEEE 802.11n/g/b
Frequency: 2.4GHz
Signal Rate: 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic)
Transmit Power: CE: ≤20dBm (EIRP) FCC: ≤22dBm
Wireless Functions: Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM), Load Balance, Rate Limit Reboot Schedule, Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Omada App: Yes
Centralized Management: • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, or Omada Software Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Certification: CE, FCC, RoHS
Package Contents: 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment: Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
