- Category
- Specifications
- Wireless
- Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) WiFi Speeds: AX3000 - 5 GHz: 2402 Mbps (802.11ax, HE160) - 2.4 GHz: 574 Mbps (802.11ax) WiFi Range: 1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology: Optional Ethernet backhaul for seamless coverage AI-Driven Mesh: Learns the network environment for ideal Wi-Fi Antennas: 4× Internal (signal-boosting array) WiFi Capacity: High (Dual-Band, 2×2 MU-MIMO, OFDMA, 4 Streams)
- Working Modes
- Router Mode, Access Point Mode
- Security
- Network Security: SPI Firewall, Access Control HomeShield Security: - Real-Time IoT Protection - Malicious Site Blocker - Intrusion Prevention System - DDoS Attack Prevention - Home Network Scanner Guest Network: 1× 5 GHz, 1× 2.4 GHz WiFi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal
- Hardware Features

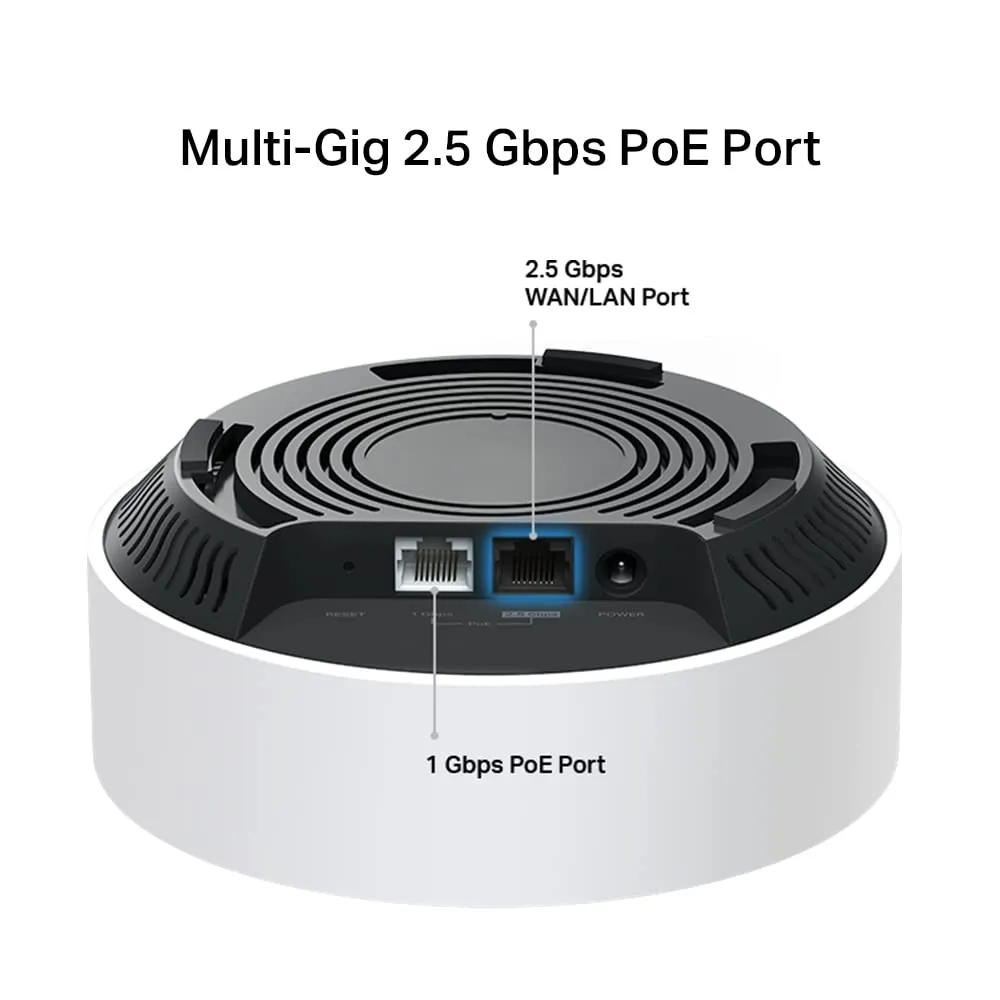

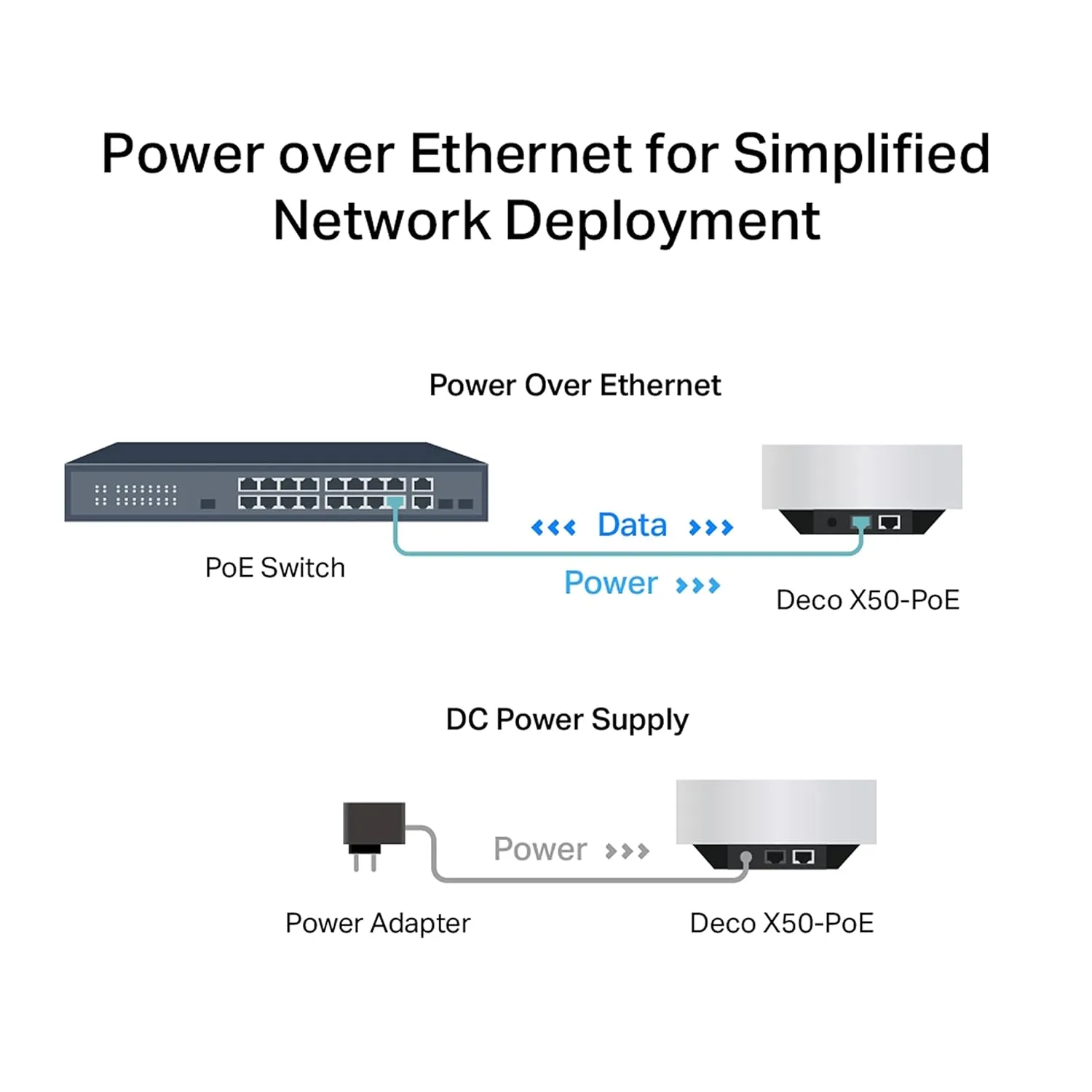

- Power Supply: - 802.3at PoE - 12V DC (EU: 12V/1.2A, US: 12V/1.5A, adapter included) Button: Reset Button Ethernet Ports: 2× 2.5 Gbps ports (supports WAN/LAN auto-sensing)
- Software
- Protocols: IPv4, IPv6 Service Kits: HomeShield Parental Controls: - YouTube Restriction, SafeSearch, Custom Profiles - Professional Content Filter Library - Family Time, Bedtime, Off Time, Time Rewards - Family Online Time Ranking, Pause Internet - Weekly and Monthly Reports WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP Quality of Service: HomeShield QoS (by Device) Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS NAT Forwarding: Port Forwarding, UPnP IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN DHCP: Address Reservation, Client List, Server
- Test Data
- WiFi Transmission Power: - CE: - FCC:
- Physical

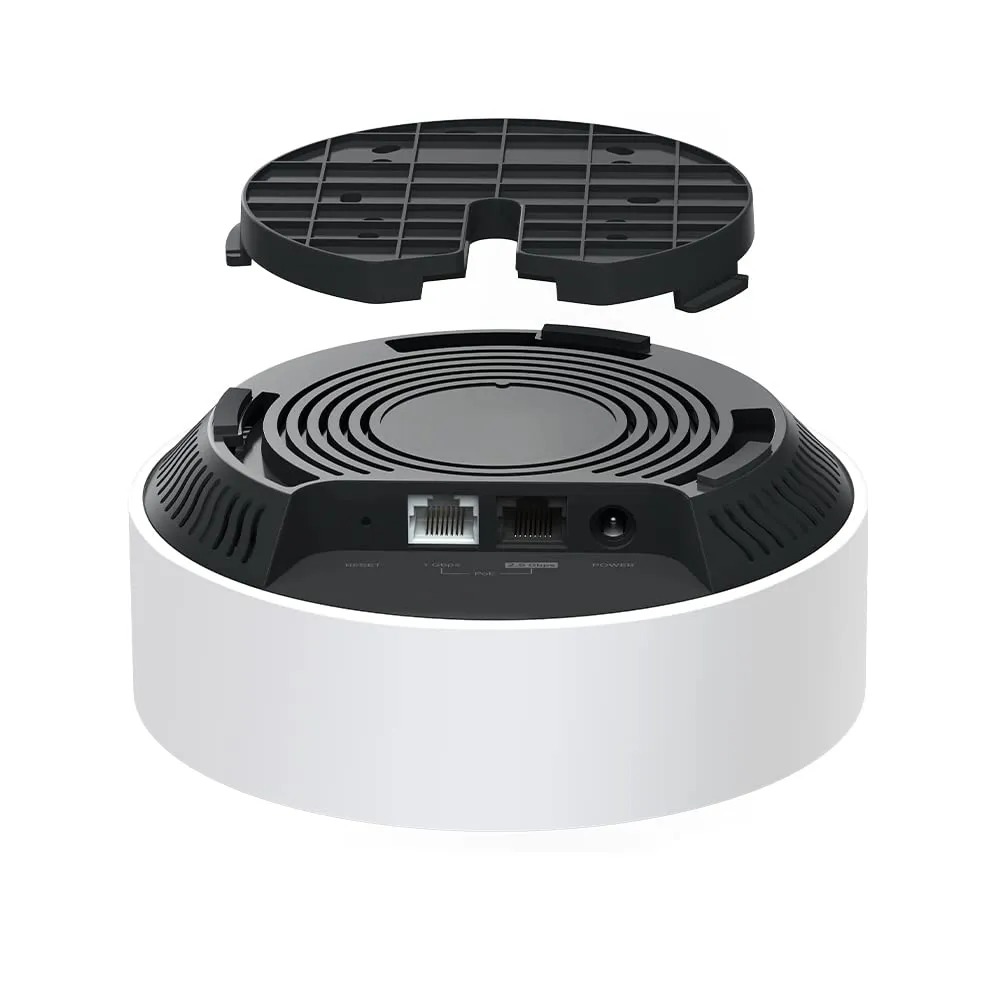

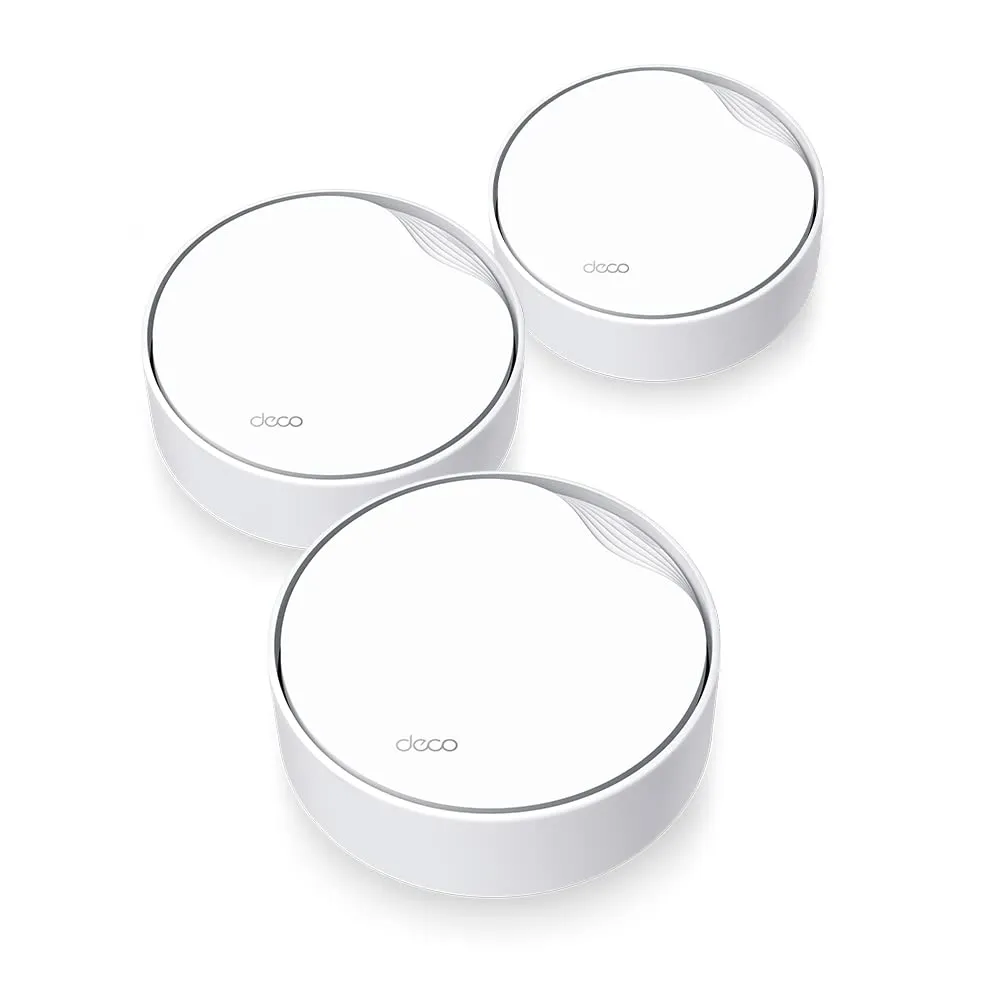

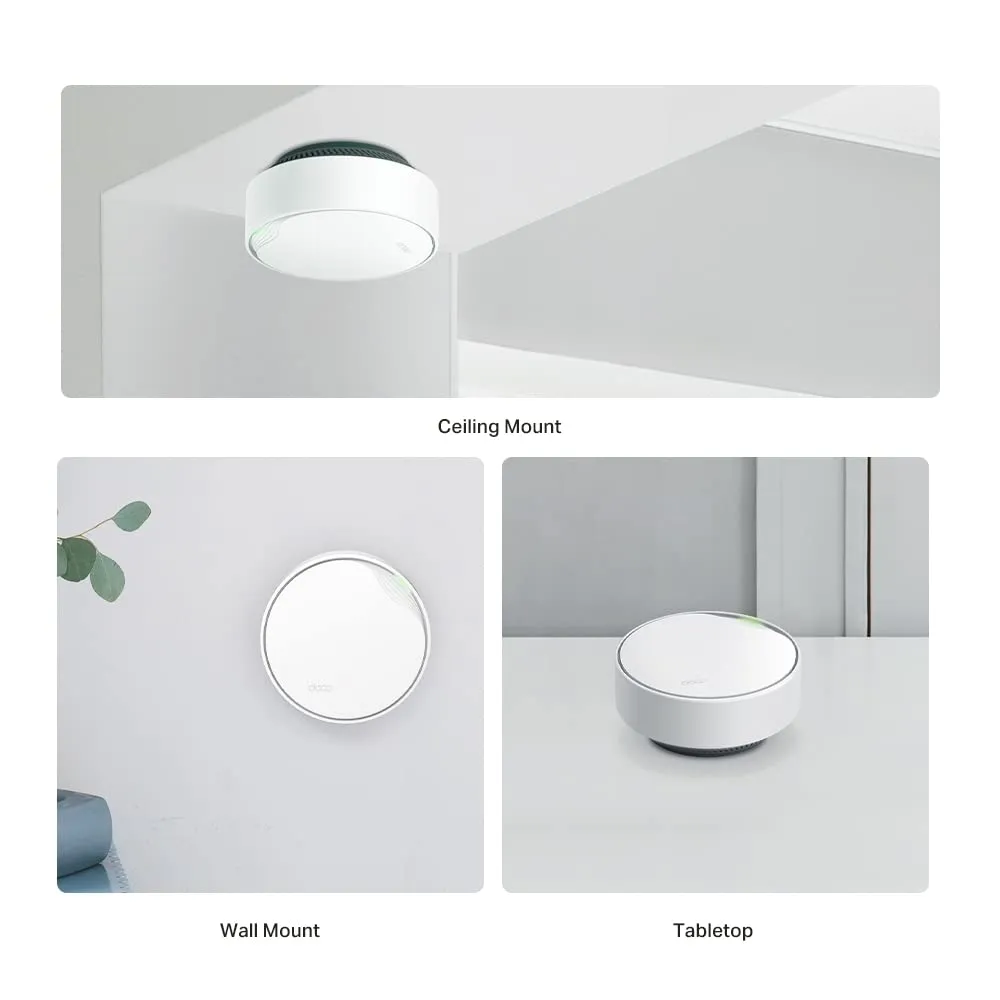

- Dimensions: 6.1 × 6.1 × 2.7 in (154 × 154 × 68.6 mm) Package Contents: - 1-pack: 1× Deco X50-PoE unit, 1× RJ45 Ethernet cable, 1× Power adapter, Mounting Kits, Quick Installation Guide - 2-pack: 2× Deco X50-PoE units, 1× RJ45 Ethernet cable, 2× Power adapters, Mounting Kits, Quick Installation Guide - 3-pack: 3× Deco X50-PoE units, 1× RJ45 Ethernet cable, 3× Power adapters, Mounting Kits, Quick Installation Guide
- Others
- System Requirements: Android 5.0 or later, iOS 9.0 or later Certifications: CE, FCC, RoHS Environment: - Operating Temperature: 0°C~40°C (32 °F~104 °F) - Storage Temperature: -40°C~60°C (-40 °F~140 °F) - Operating Humidity: 10%~90% RH - Storage Humidity: 5%~90% RH
