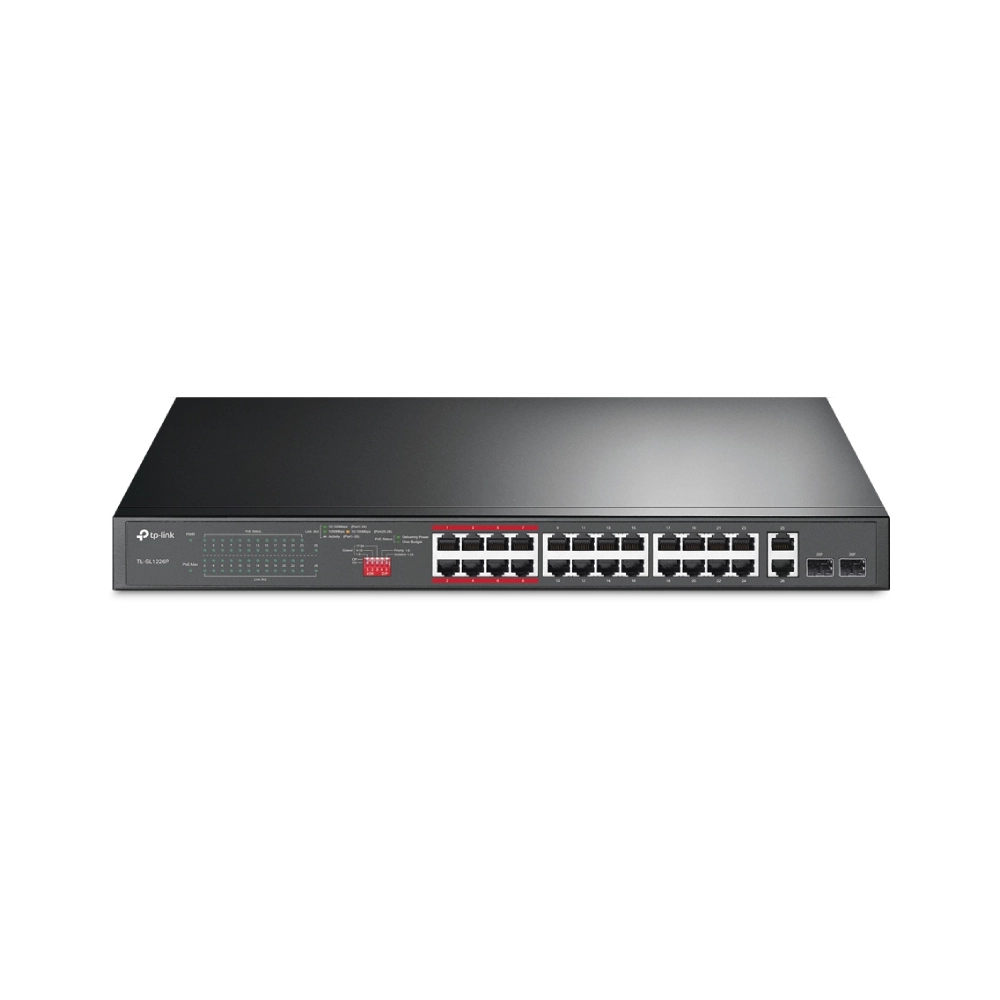

TP-Link Poe Switch 24 Port (24 FE + 2 GE + 2 GE SFP Port) TL-SL1226P

Product ID: A1088
Item CD: 16PBRB4
Model: TL-SL1226P
Warranty Period: 3 Years From TP-LINK Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For Any Query : 78498 31942

Specifications

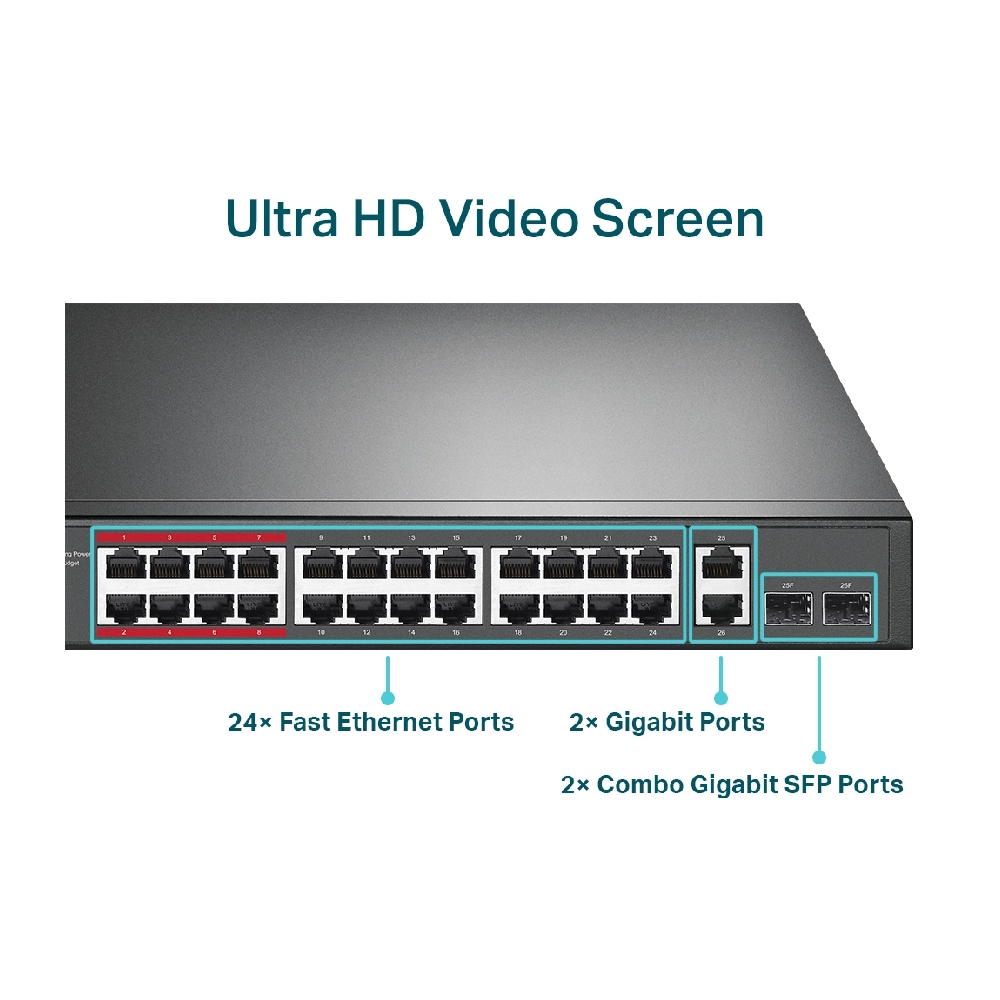

Interface: 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots
Network Media: 10BASE-T: UTP Cat 3, 4, 5 / STP (max 100m) 100BASE-TX: UTP Cat 5, 5e / STP (max 100m) 1000BASE-T: UTP Cat 5, 5e, 6+ / STP (max 100m) 1000BASE-X: MMF, SMF
Fan Quantity: 2 Fans
Physical Security Lock: Yes
Power Supply: 100-240 VAC, 50/60 Hz

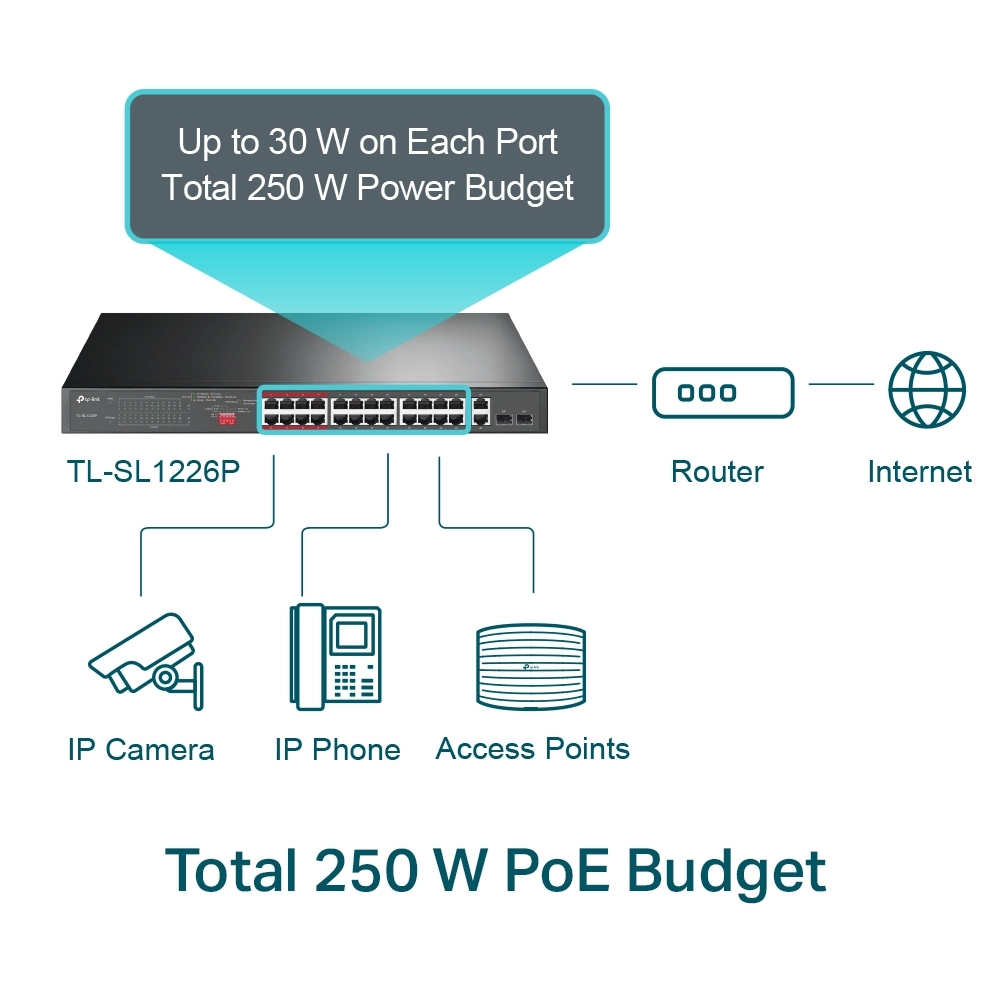

PoE Ports: Standard: IEEE 802.3at/af compliant Ports: 1–24 Power Budget: 250 W
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 6.5472 Mpps
MAC Address Table: 8 K
Jumbo Frame: 10 KB
Dimensions (W × D × H): 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Max Power Consumption: 18.32 W (no PD connected) 294 W (with 250 W PD connected)
Max Heat Dissipation: 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)

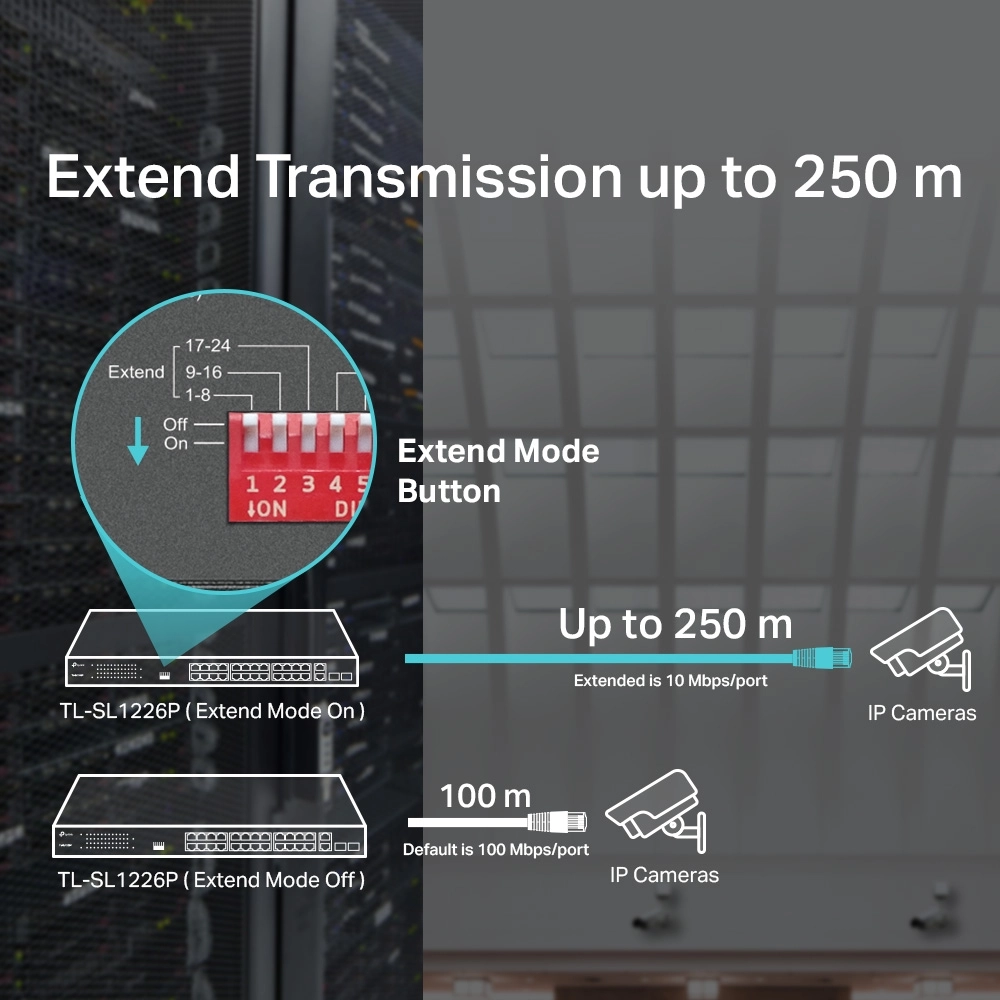

Advanced Features: IEEE 802.3at/af PD Compatibility Extend Mode (up to 250m PoE) Priority Mode Isolation Mode
