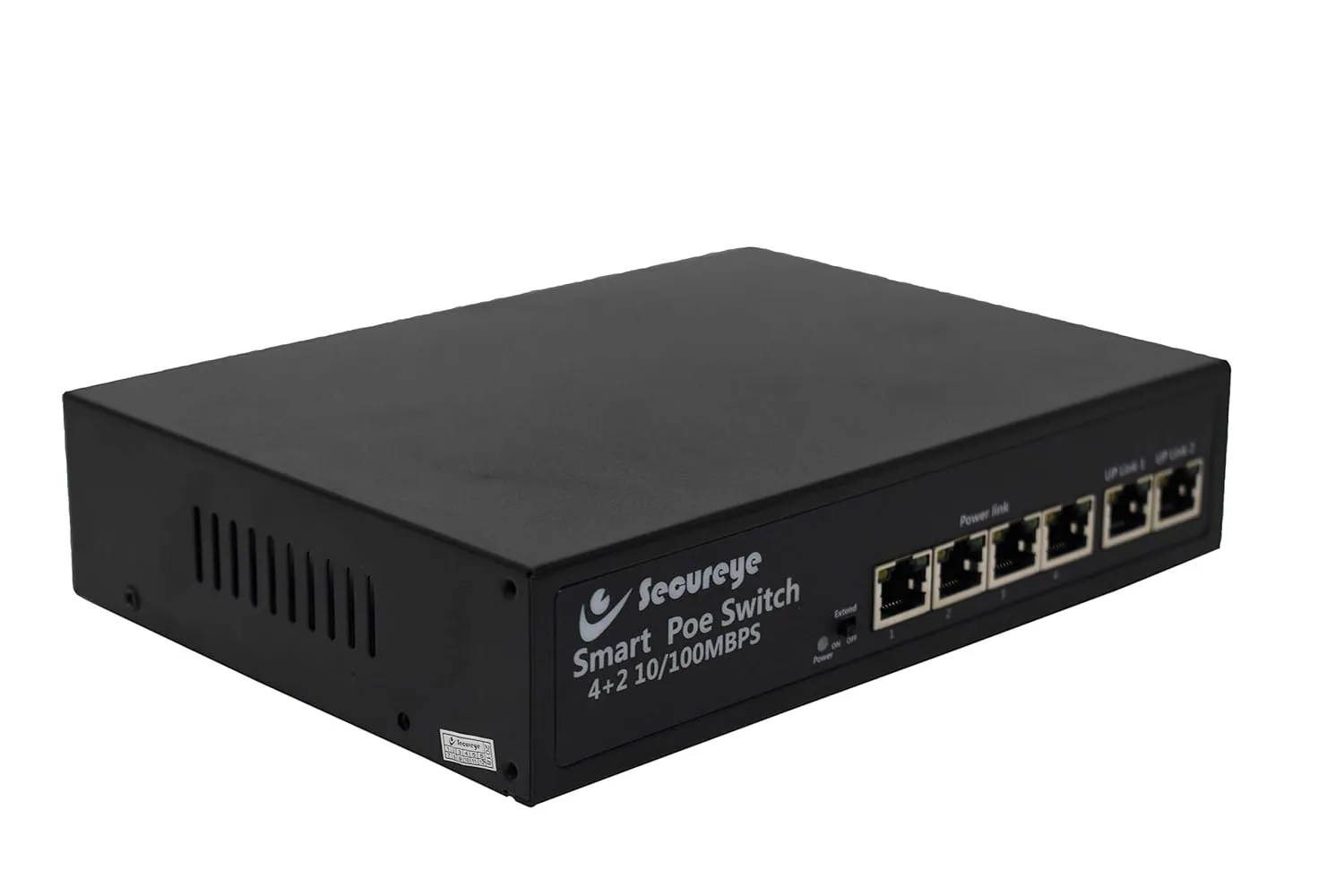

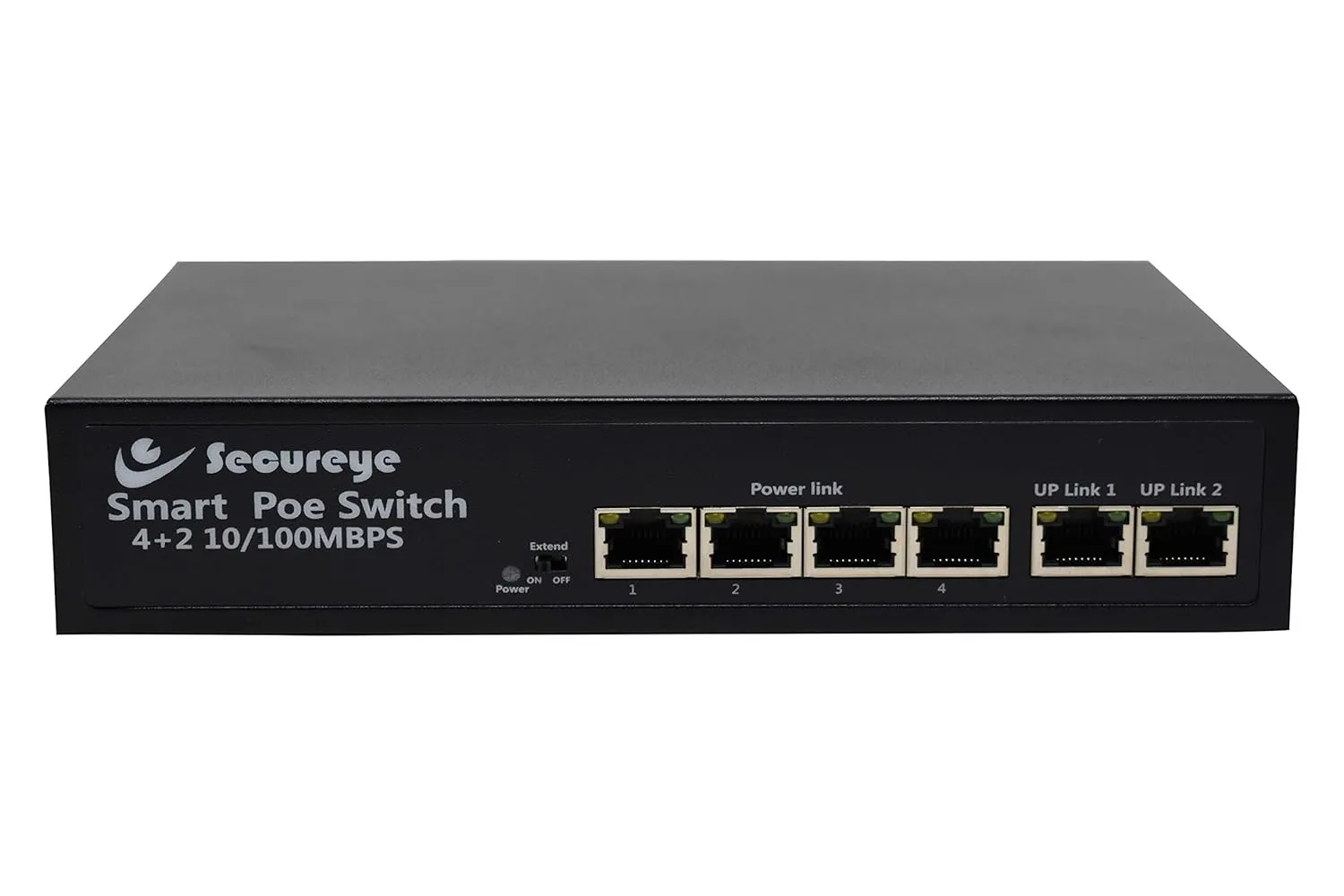

Secureye Poe Switch 4 Port (4 FE+ 2 FE Port) S-4FE-2UE-L-NB

Product ID: P2148
Item CD: 08HA39C
Model: S-4FE2UE-L-NB
Master Box: 16
Warranty Period: 2 Years From SECUREYE Service Center
Service Center List: View
Product URL: View Product
DATASHEET: Click here

Choose Configuration

Channel

Call For Bulk Qty - 83028 85193

Specifications

Network Port: 4 10/100Mbps PoE RJ45 port (Port 1 - Port 4), 2 10/100Mbps RJ45 port uplink (Port 5 - Port 6)
Transfer Rate: 100Mbps Full Duplex, 10 or 100Mbps Half Duplex
Network Protocol: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Performance: Bandwidth: 1.2Gbps (no block) Network delay (100 to 100Mbps): Maximum 20 ps (using 64 byte packet) Frame filtering and transmission rate: 10M port maximum 14,800pps, 100M port maximum 148,800pps
LED Indicator: Power, LINK/ACT, RESV, POE Indicator light
PoE Pin: 1/2+, 3/6-
Power: Max power for single port 30W, Internal power adapter: 60W
Environment: Operating Temperature: 0°-40°C Operating Humidity: 10%-90%, Non-condensing
Safety Regulations: CE/ROHS/FCC/CCC
