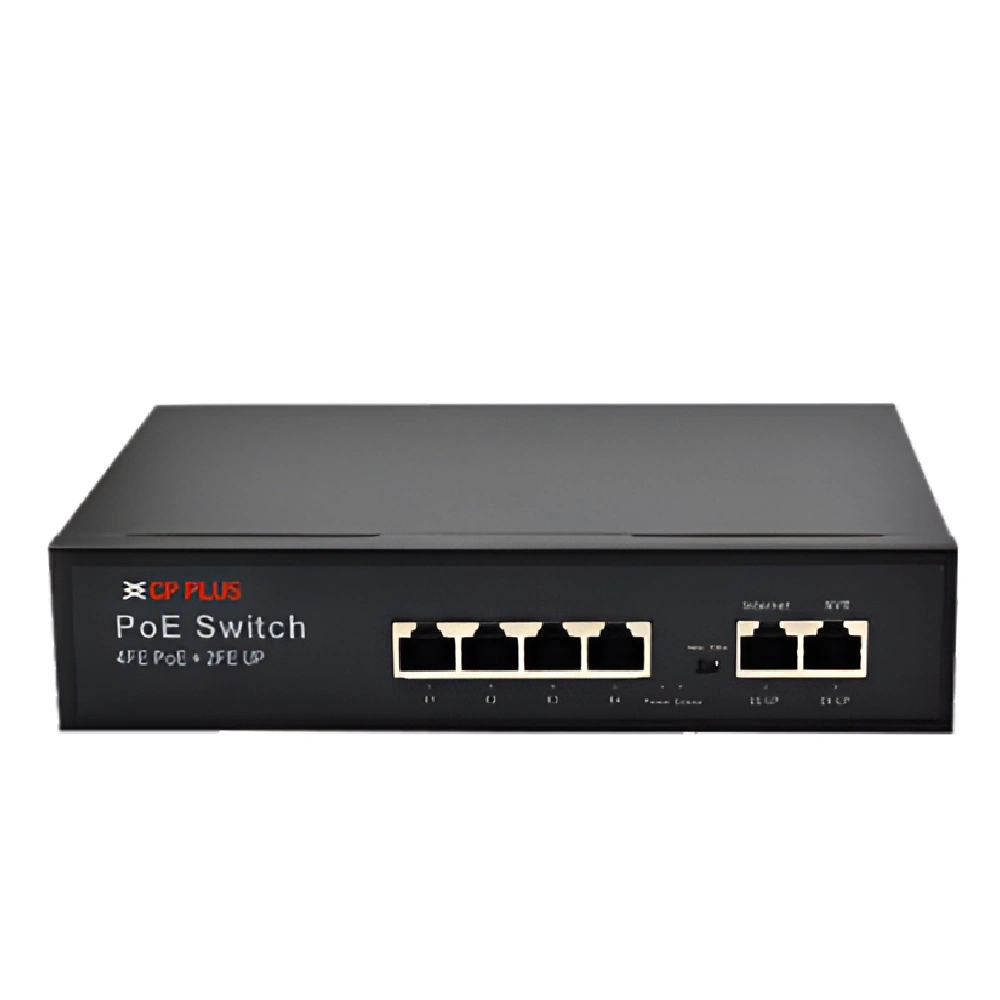

CP-Plus Poe Switch 4 Port (4 FE + 2 FE Port) CP-SAVW-HPU4H2-65

Product ID: A0143
Item CD: 12I8WE8
Model: CP-SAVW-HPU4H2-65
Master Box: 20
Warranty Period: 2 Years
Service Center List: View
Product URL: View Product
Warranty Claim Procedure: Click here
DATASHEET: Click here

Call For Bulk Qty - 83028 85193

Specifications

PoE Standard: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.1W Spanning Tree, IEEE 802.3x flow control
Data Transmission Port: 1×4 RJ45, 1×2 RJ45
Transmission Rate: 10/100Mbps auto-negotiate
Transmission Distance: 10Base-T: ≤250m, 100Base-TX: ≤100m
Forwarding Mode: Store and forward
Transmission Mode: Support Half/Full duplex Mode
MAC Address List: 4K
Case Space: 768Kb
Jumbo Frame: 204
Packet Forwarding Rate: 1.488Mpps@64byte
Bandwidth: 2
PWR (Power Indicator): Green Power
Ethernet Indicator: Green per ethernet port
DIP Switch: 100m: Standard mode - All ports can communicate with each other 250m: Extend mode - Port 1-4 are isolated from each other, transmission distance can go up to 250m, and can communicate with port 5-6
Power Input: AC100~240V, 50Hz
Power Consumption: Standby: ≤3W; Whole: ≤96W
PoE Pin Definition: 1/2+, 3/6-
Port Max. Rate: ≤25.4W
Operating Temperature: -20°C ～50°C
Operating Humidity: 5%～95% non-condensing
Dimensions: 201mm × 140mm × 44mm
Weight: 0.7kg
