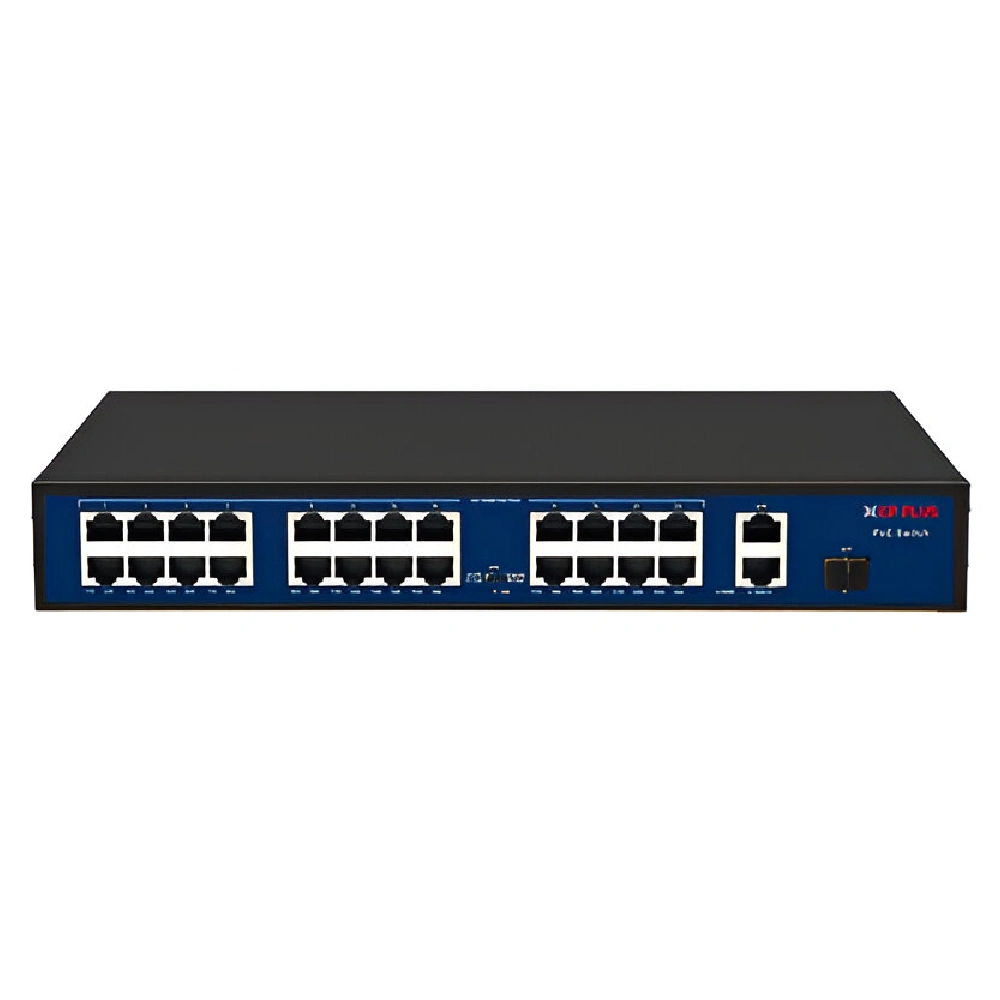

CP-Plus Poe Switch 24 Port (24 FE + 2 GE + 1 SFP Port) CP-DNW-HPU24G2F1-30

Product ID: P8109
Item CD: 0Y6YC5C
Model: CP-DNW-HPU24G2F1-30
Warranty Period: 2 Years
Service Center List: View
Product URL: View Product
Warranty Claim Procedure: Click here

Choose Configuration

Channel

Call For Bulk Qty - 83028 85193

Specifications

Uplink Ports: 2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m
Switch Capacity: 10.8 Gbps (non-blocking)
PoE Power Budget: 300W
Surge Protection: Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV
ESD: Air discharge: 8KV Contact discharge: 6KV
Ethernet Port Light: Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting
Network Port: 27
Transmission Distance: 0-10m/1000Mbps or Port 9-24 Max. 250m/10Mbps via Cat.5e or more under Extend
PoE Ports: Port 1-24 support PoE, Max. 30W Output of Single PoE Port
PoE Power Supply: 1/2(+), 3/6(-)
PoE Standard: IEEE802.3af, IEEE802.3at
Packet Forwarding Rate: 8035 Mpps
MAC Address List: 2K
Power Source: Built-in Power Supply Input: 100-240V AC, 50/60Hz
Operating Temperature: -20°C ~ 45°C
Humidity: 10%-95%, non-condensing
Storage Temperature: -45°C ~ 85°C
Dimension: 320mm x 207mm x 45mm
