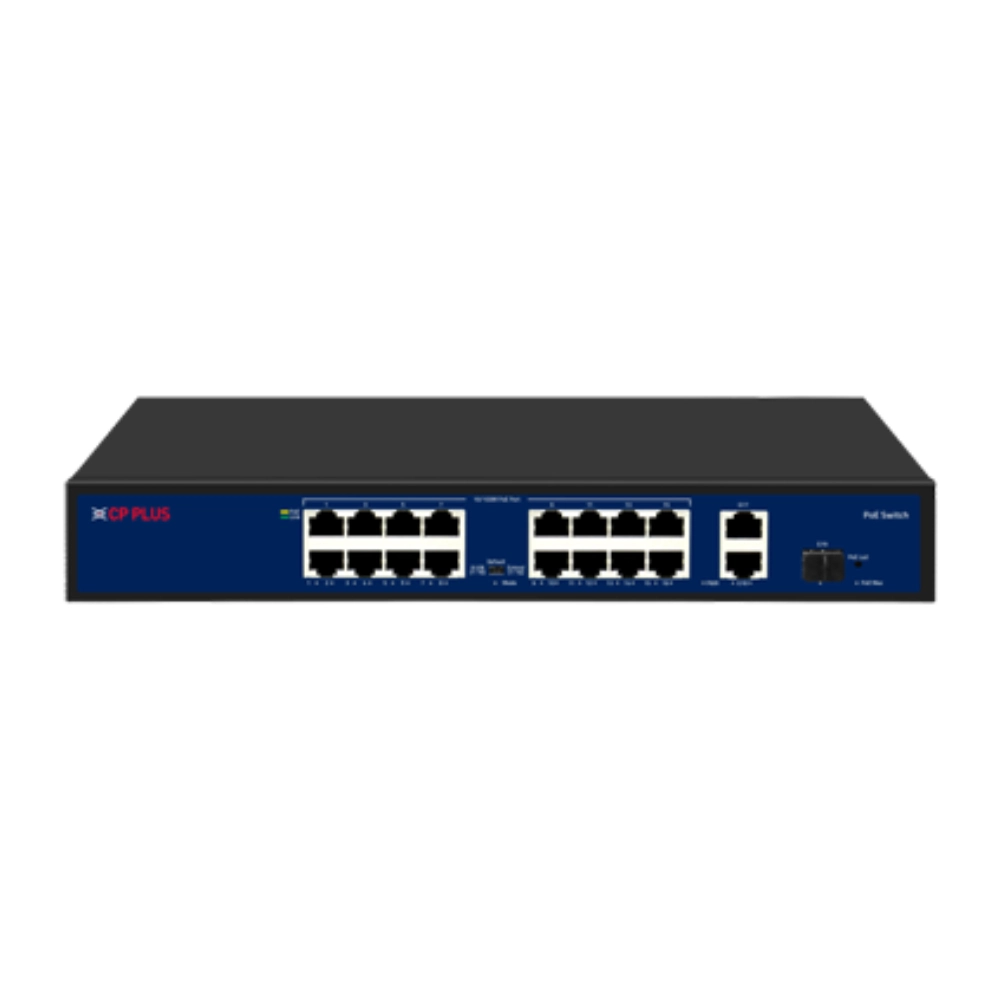

Cp-Plus Poe Switch 16 Port (16 FE+ 2 GE + 1 SFP Port)

Click to expand

Cp-Plus Poe Switch 16 Port (16 FE+ 2 GE + 1 SFP Port)

Product ID: P1106
Item CD: 040IVI8
Model: CP-DNW-HPU16G2F1-20
Warranty Period: 2 Years
Service Center List: View
Product URL: View Product
Warranty Claim Procedure: Click here
DATASHEET: Click here

Call For Bulk Qty - 83028 85193

Specifications

Specifications: Details
PoE Ports: 16 PoE Ports
Network Port: 16 x 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 x 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 x 10/100/1000 Mbps Base-X SFP port (Combo)
LED Light: 16 x Link/Act LEDs, 1 x G1 LED, 1 x G2/SFP2 LED, 1 x Poe-MAX LED, 1 x Power LED
PoE Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
Switch Capacity: 7.2 Gbps
Input Voltage: 100-240V / 50-60Hz
PoE Power Supply: Ports 1-16 support IEEE802.3af/at, 30W per port, 130W total
Forwarding Rates: 5.36 Mbps
Power Consumption: 150W (total device)
MAC Address List: 4K
Four Modes: Standard: Default mode, unmanaged switch behavior. Priority: Ports G1 and G2/SFP2 as uplinks; ports 1–8 prioritized. Extend: Ports 9–16 at 10 Mbps; max 250 meters. VLAN: Ports 1–16 isolated from each other but communicate with G1 and G2/SFP2.
