TP-Link Desktop LAN Switch 24 Port Gigabit SG1024D

Click to expand

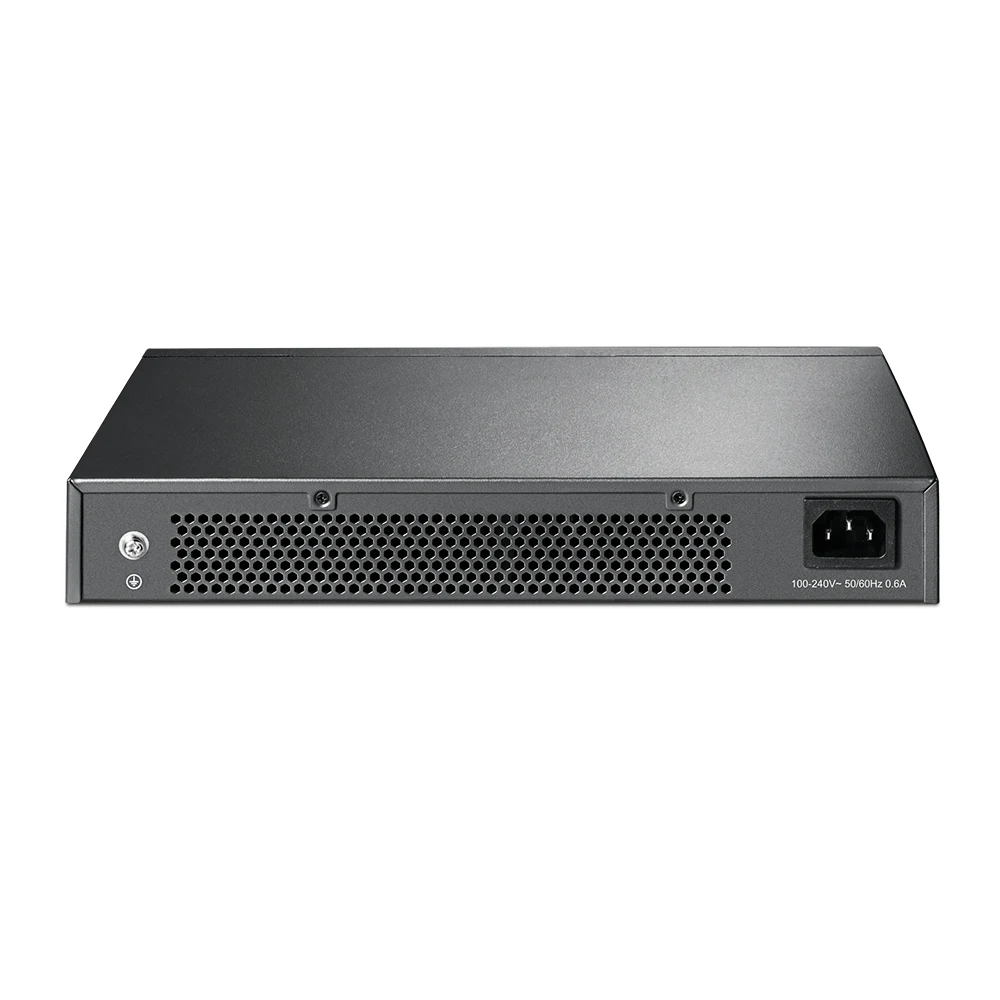

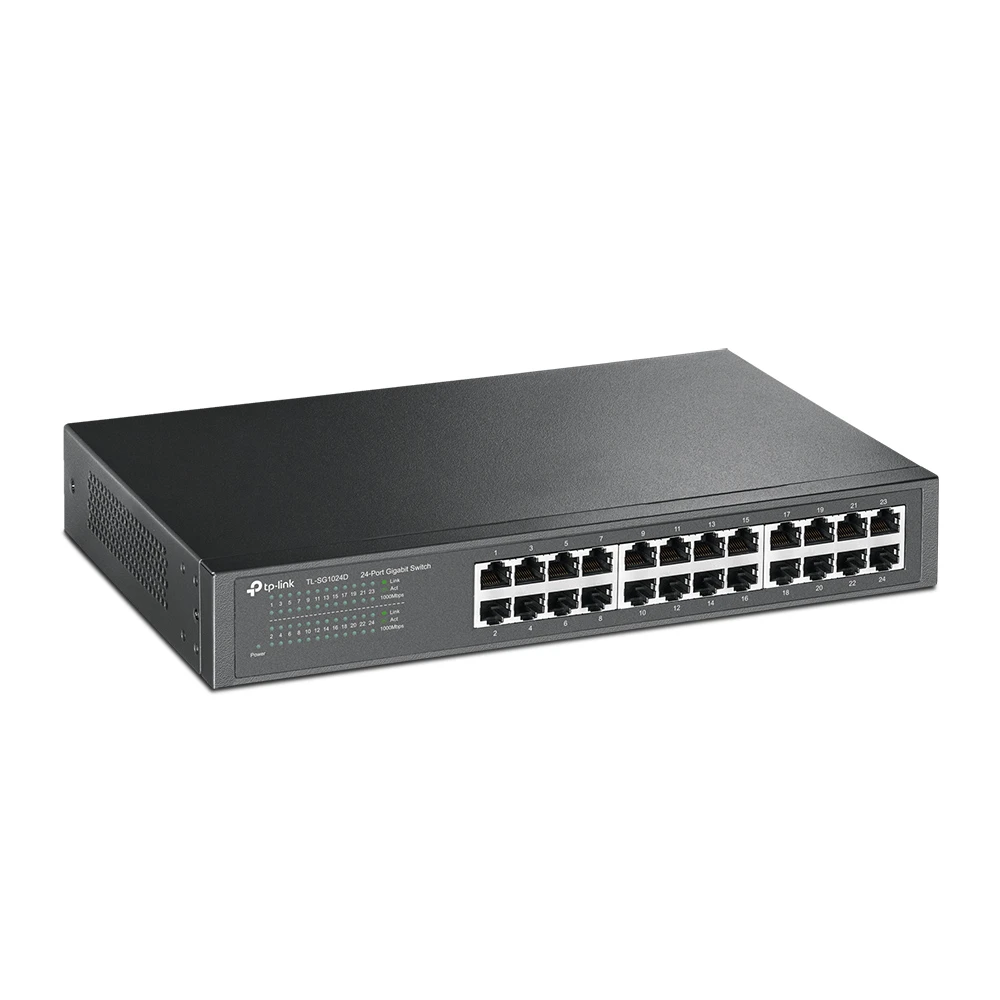

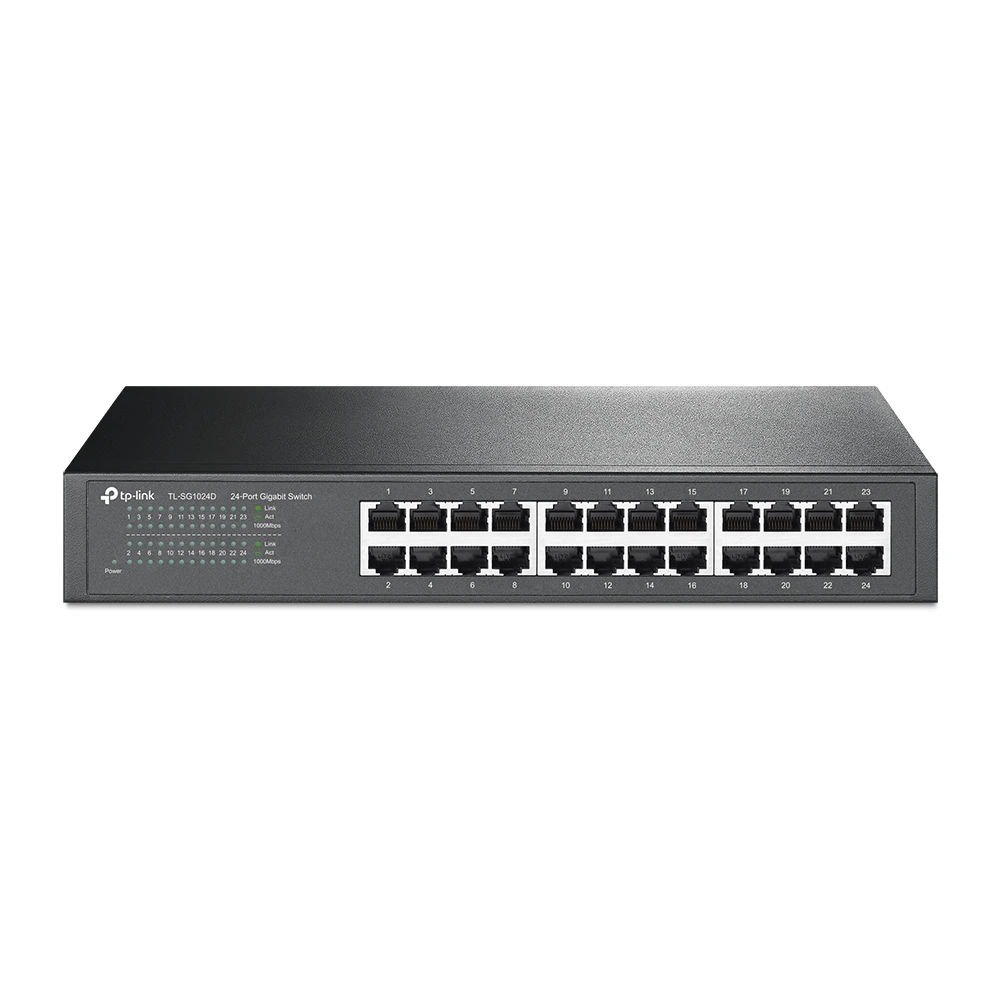

TP-Link Desktop LAN Switch 24 Port Gigabit SG1024D

Product ID: P8648
Item CD: 10J2SJK
Model: SG1024D
Warranty Period: 3 years from TENDA Service Center
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Technical Support: Click here
Installation Guide: Click here

For More Information: 7849831942

Specifications

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: No
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 13.1W (220V/50Hz)
Dimensions (W x D x H): 11.6 * 7.1 * 1.7 in. (294 * 180 * 44 mm)
Mounting: Rack Mountable
Max Power Consumption: 13.62W (220V/50Hz)
Max Heat Dissipation: 46.44 BTU/h
Switching Capacity: 48 Gbps
Packet Forwarding Rate: 35.7 Mpps
MAC Address Table: 8K
Advanced Functions: Isolation Mode: Ports 1-22 Loop Prevention: Ports 1-24
Jumbo Frame: 10 KB
Green Technology: Yes
Transfer Method: Store-and-Forward
Certification: FCC, RoHS
Package Contents: 24-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
