- Specification
- Description
- RoHS Compliance
- Yes
- Control
- 802.3x Flow
- Dimensions
- 280 x 125 x 44 mm
- Discharge
- Air Discharge: 8kV, Contact Discharge: 4kV
- Energy Efficiency Ethernet (EEE)
- Yes
- FAN
- Fanless
- Head-of-line (HOL) Blocking Prevention
- Yes
- Humidity
- Operating: 0% - 95% RH, Storage: 0% - 95% RH

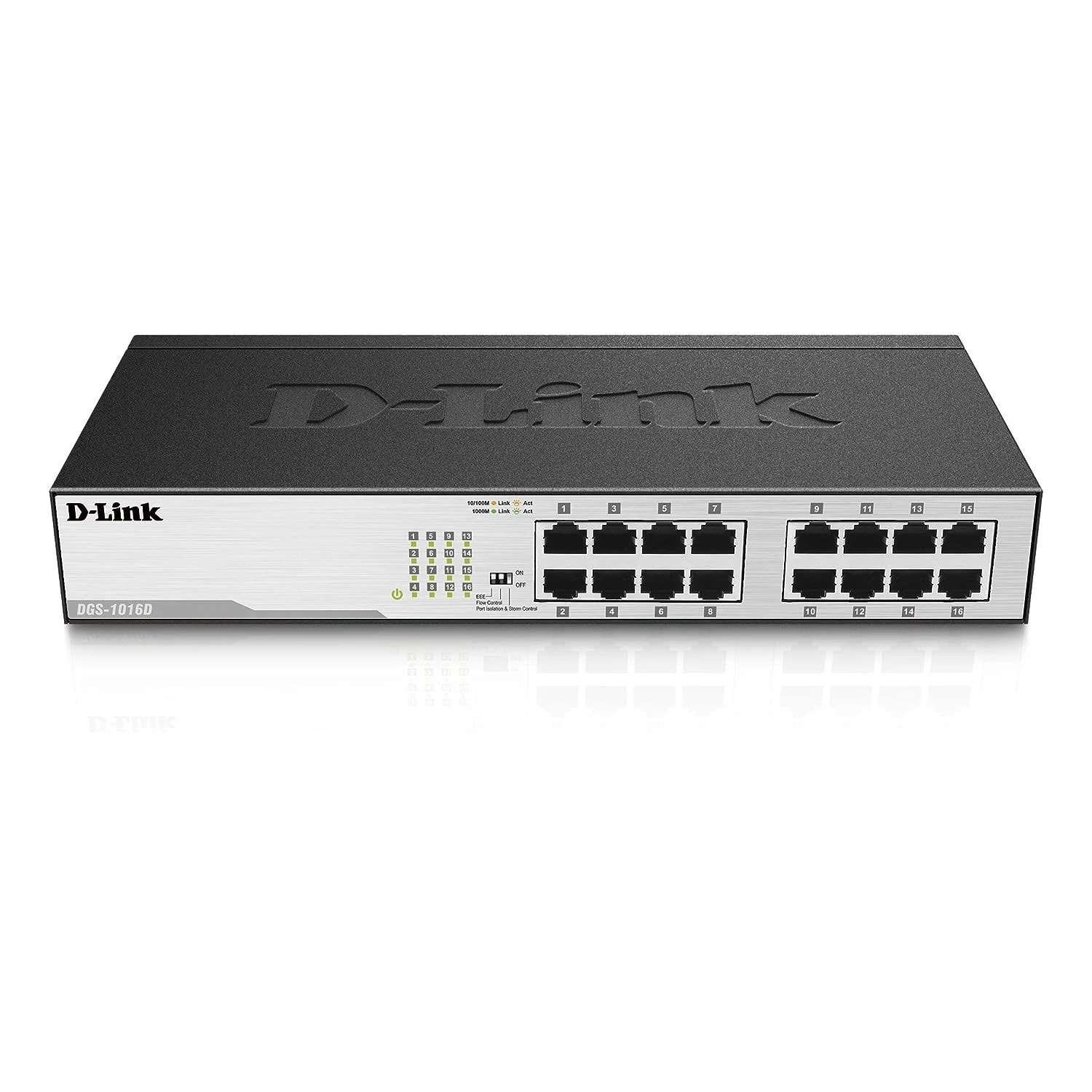

- Interfaces
- 16 x 1000Base-T
- Auto MDI/MDIX
- Yes
- Jumbo Frame
- 10,000 Bytes
- MAC Address Table Size
- 8,192
- Maximum Forwarding Rate
- 23.81 Mpps
- Max Heat Dissipation
- 34.3 BTU/h
- Max Power Consumption
- 10.07 W
- MTBF
- 1,882,372 hours
- Packet Buffer Size
- 512 KBytes
- Power Input
- AC: 100 ~ 240 V
- Power Saving
- By Cable Length, By Link Status
- Protection
- Surge/Lightning Protection: AC Power Inet: 1kV, All Ethernet Ports: 1kV
- Standby Power Consumption
- 3.02 W
- Store & Forwarding
- Yes
- Switching Capacity
- 32 Gbps
- Temperature
- Operating: 0 ~ 40 °C, Storage: -10 ~ 70 °C
- Weight
- 1.023 kg
