MSI PRO H610M-S DDR4 Motherboard For Intel 12th | 13th | 14th Gen

Product ID: P113
Item CD: 0026NSW
Model: PRO H610M-S DDR4
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
Brochure: Click here

For More Information: 70738 88300

Compatible Products

Specifications

Chipset: INTEL H610
CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory: 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics: 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot: 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio: Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage: 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices 2x SATA 6G

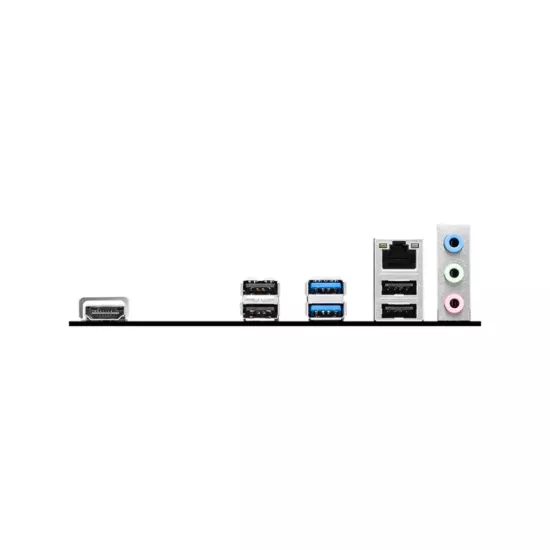

USB: 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN: Realtek® RTL8111H Gigabit LAN
Internal IO: 1x Power Connector (ATX_PWR) 1x Power Connector (CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header (Support TPM 2.0) 4x USB 2.0 ports
