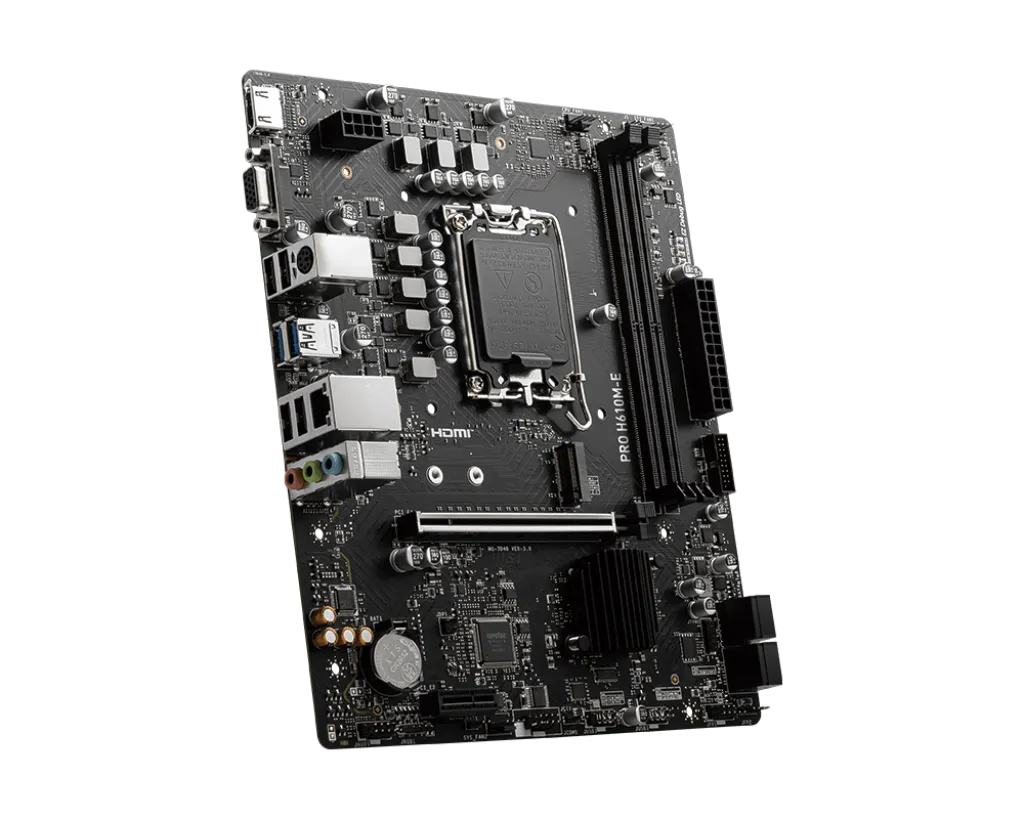

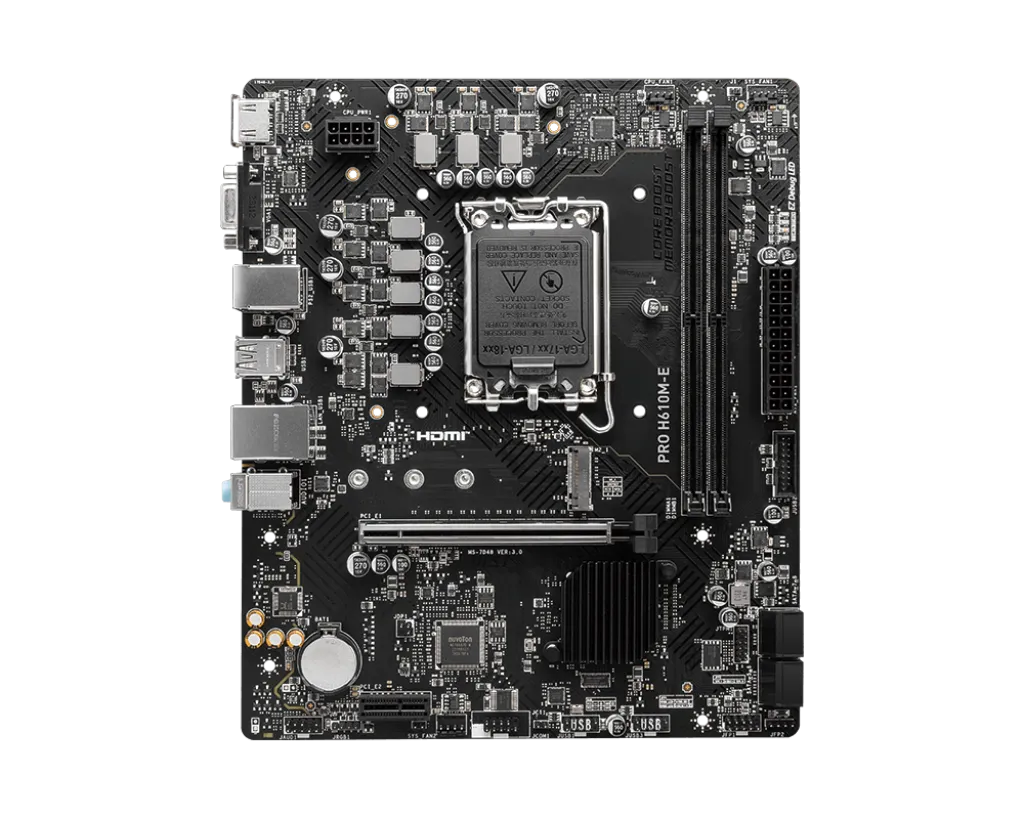

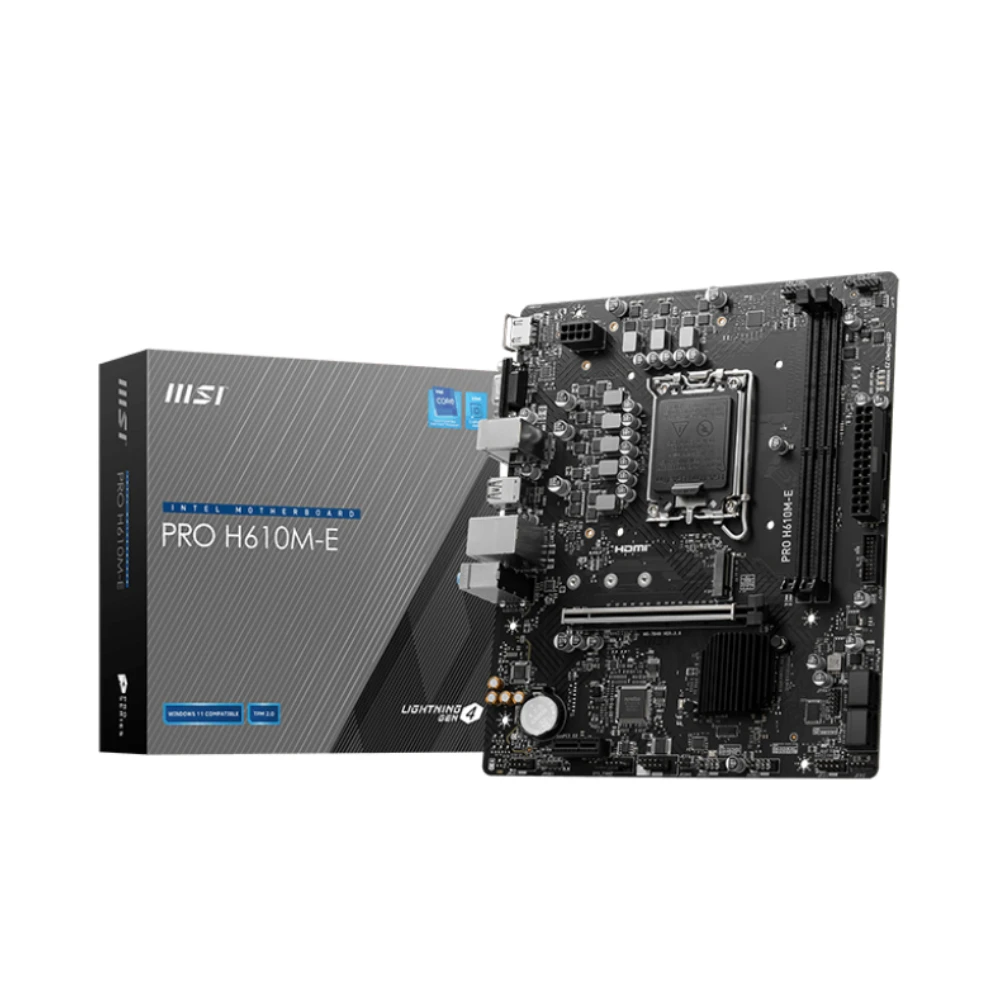

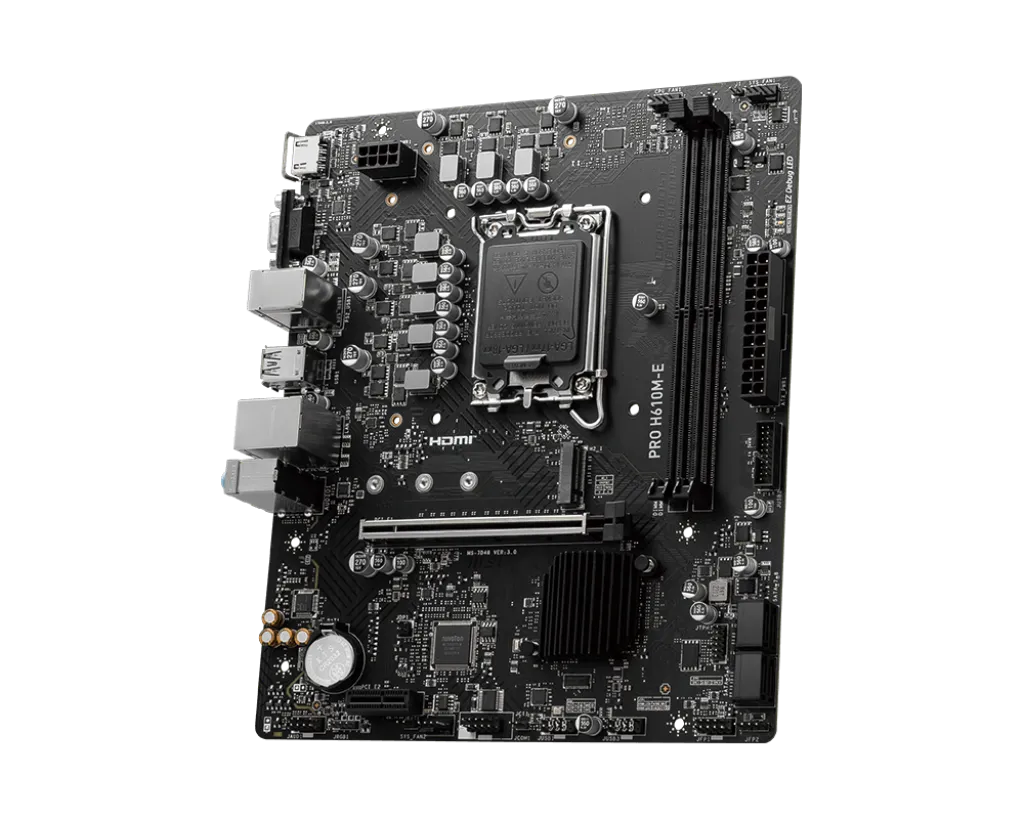

MSI Motherboard PRO H610M-E DDR5 For INTEL 12th | 13th | 14th GEN

Product ID: A1625
Item CD: 191ALFK
Model: MSI PRO H610M-E DDR5
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here

For More Information: 70738 88300

Compatible Products

Specifications

Feature: Description
Model: MSI PRO H610M-E DDR5
CPU Support: Intel 12th/13th/14th Gen, Pentium Gold, Celeron (LGA 1700)
Chipset: Intel H610
Memory: 2x DDR5 DIMMs, up to 96GB, DDR5 5600MHz (JEDEC), Dual Channel
Graphics Output: HDMI (4K@30Hz), VGA (up to 2048x1280@60Hz)*
Expansion Slots: 1x PCI-E 4.0 x16, 1x PCI-E 3.0 x1
Storage: 1x M.2 (PCIe 3.0 x4/SATA), 4x SATA 6Gb/s
Audio: Realtek ALC897, 7.1 HD Audio
LAN: Realtek RTL8111H Gigabit Ethernet

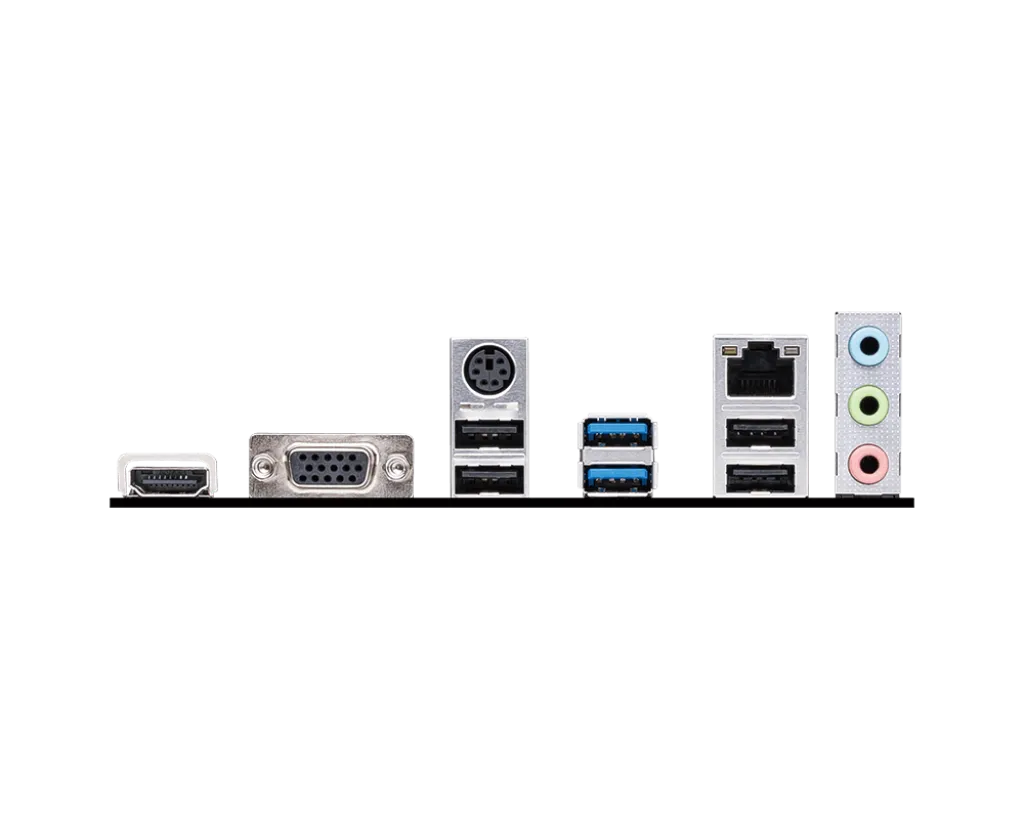

USB Ports: 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type-A (Rear), 2x USB 5Gbps Type-A (Front)
Internal Connectors: ATX_PWR, CPU_PWR, CPU Fan, 2x SYS Fan, Front Panel, JAUD, COM, RGB Header, TPM Header
Special Features: EZ Debug LED, Intel XMP 3.0 Support
Form Factor: Micro-ATX
