- Feature
- Specification
- Model
- GP-UD750GM
- Type
- Intel Form Factor ATX 12V v2.31
- PFC
- Active PFC (>0.9 typical)
- Input Voltage
- 100-240 Vac (full range)
- Input Current
- 12-6A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 750W
- Dimension
- 150 x 140 x 86 mm

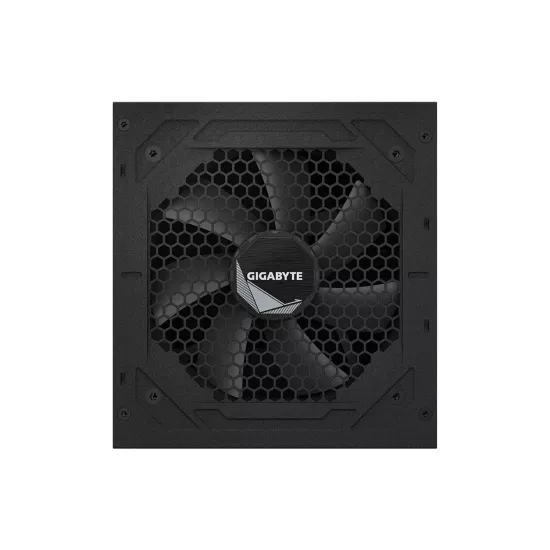

- Fan Type
- 120mm Hydraulic Bearing (HYB) fan
- 80 PLUS
- Gold
- Efficiency
- 90% at typical load
- MTBF
- >100,000 hours
- Protection
- OVP / OPP / SCP / UVP / OCP / OTP
- Power Good Signal
- 100-150ms
- Hold Up Time
- >16ms
- Cable Type
- Flat, All black

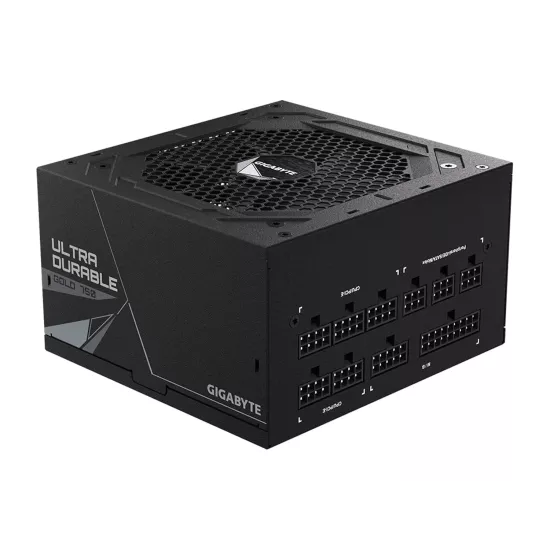

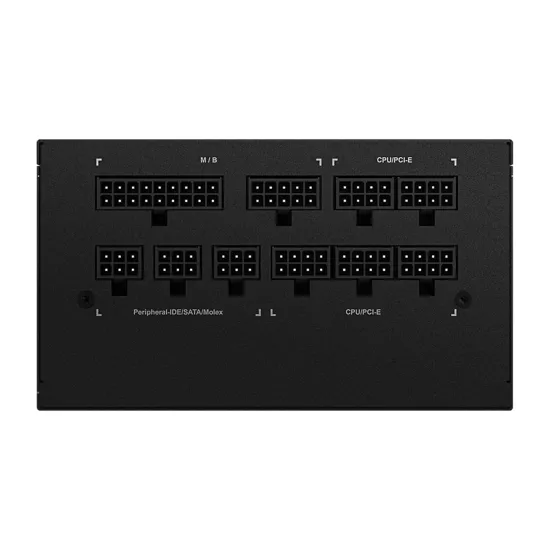

- Connectors
- ATX/MB 20+4 Pin x 1 : 610mm CPU/EPS 4+4 Pin x 2 : 600mm PCI-e 6+2 Pin x 4 : 600mm + 150mm SATA x 8 : 600mm + 150mm + 150mm + 150mm 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm + 120mm + 120mm + 150mm
