- Capacity (VA/W)
- 1000VA / 600W
- Nominal voltage
- 220-240 VAC
- Voltage range
- 140-300 VAC
- Frequency
- 50/60 Hz
- Plug type
- 3 Pin plug
- Voltage range (AC mode)
- 230VAC ± 5 %
- Voltage range (Batt. mode)
- 230 VAC ± 10 %
- Frequency range (Batt. mode)
- 50 / 60 Hz ± 1%
- Transfer time
- 4 - 8 ms typ.
- Wave form
- Simulated sine wave

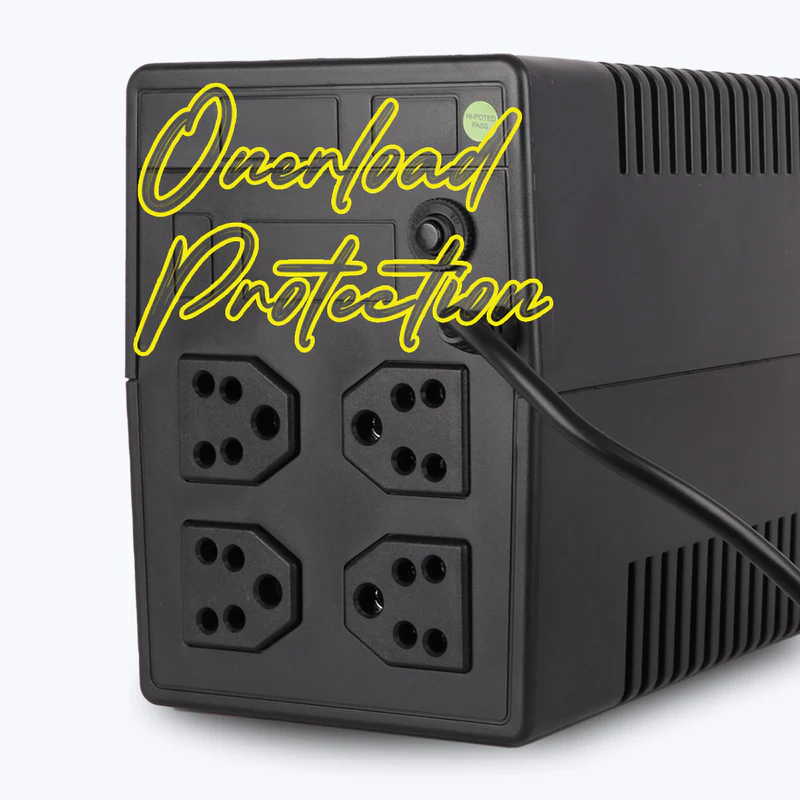

- No. of output sockets
- 4
- Protections
- Overload, Short circuit, Over discharge & Over charge
- Battery type
- 12V 7Ah x 2 nos
- Charging current
- 1.2A
- Recharge time
- 6 - 8H typ. (up to 90% capacity after complete discharge)
- No. of LEDs
- 3 LEDs
- AC mode
- Green LED glows
- Battery mode
- Orange LED blinks in an interval of 10 seconds
- Fault
- Red LED Glows
- Battery mode Alarm
- Beeping every 10 seconds
- Low battery Alarm
- Beeping every 1 second
- Overload Alarm
- Beeping every 0.5 second
- Fault Alarm
- Continuous beeping
- Product dimension (W x D x H)
- 13 x 31.4 x 17.5 cm
- Net weight
- 7.19 kg
- Package dimension (W x D x H)
- 36.8 x 17.3 x 24.8 cm
- Operational temperature
- 0-40⁰C
