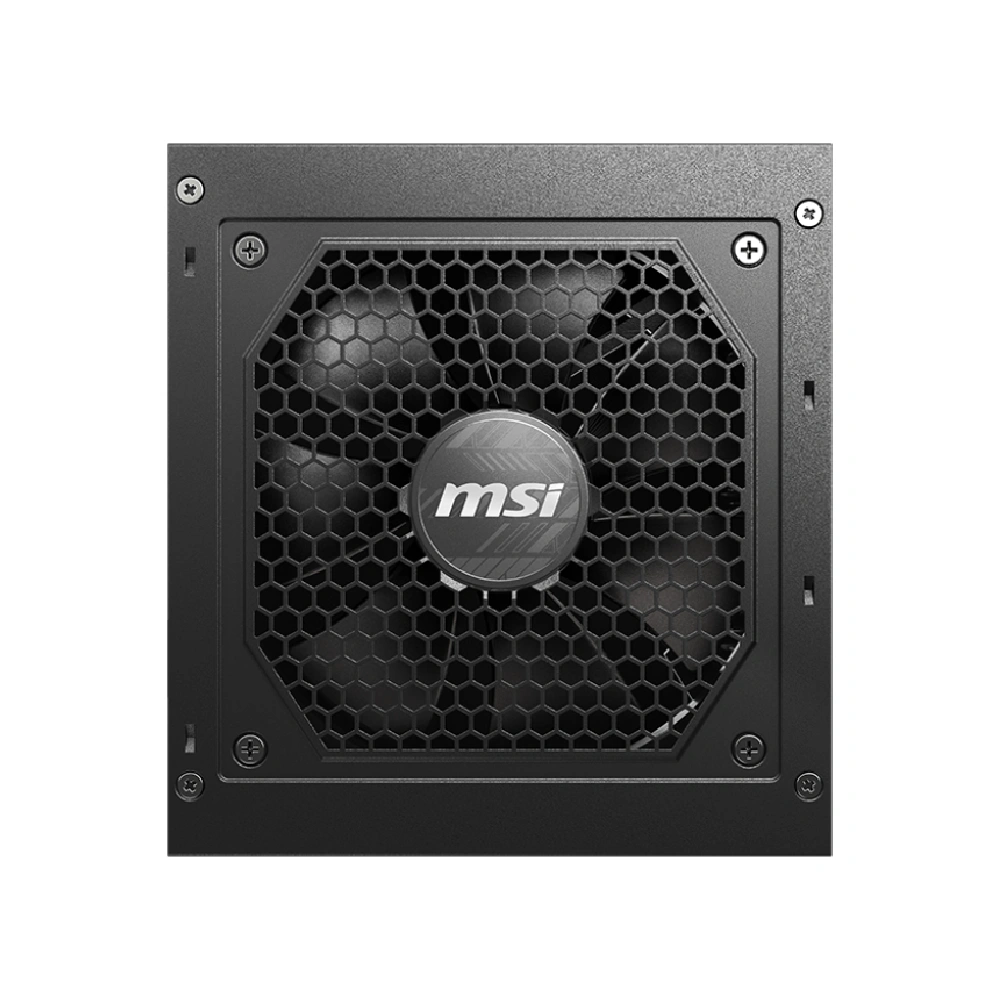

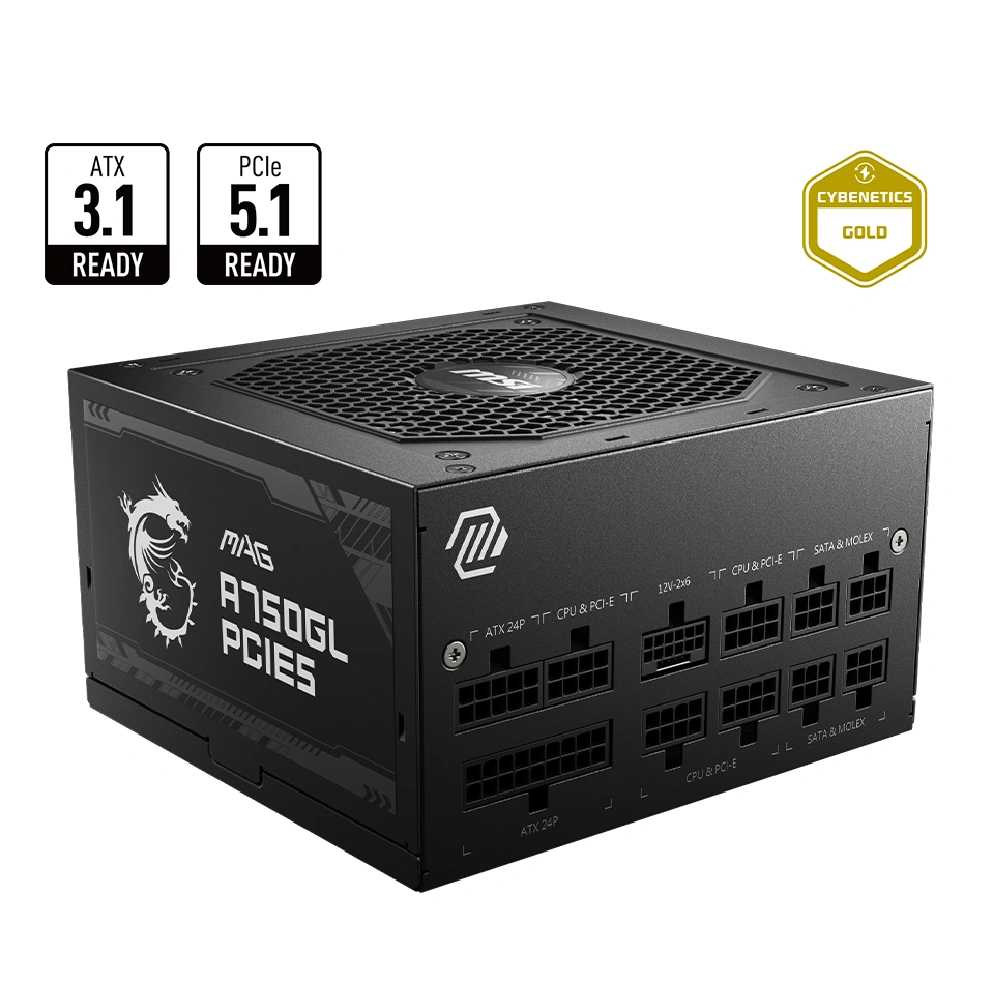

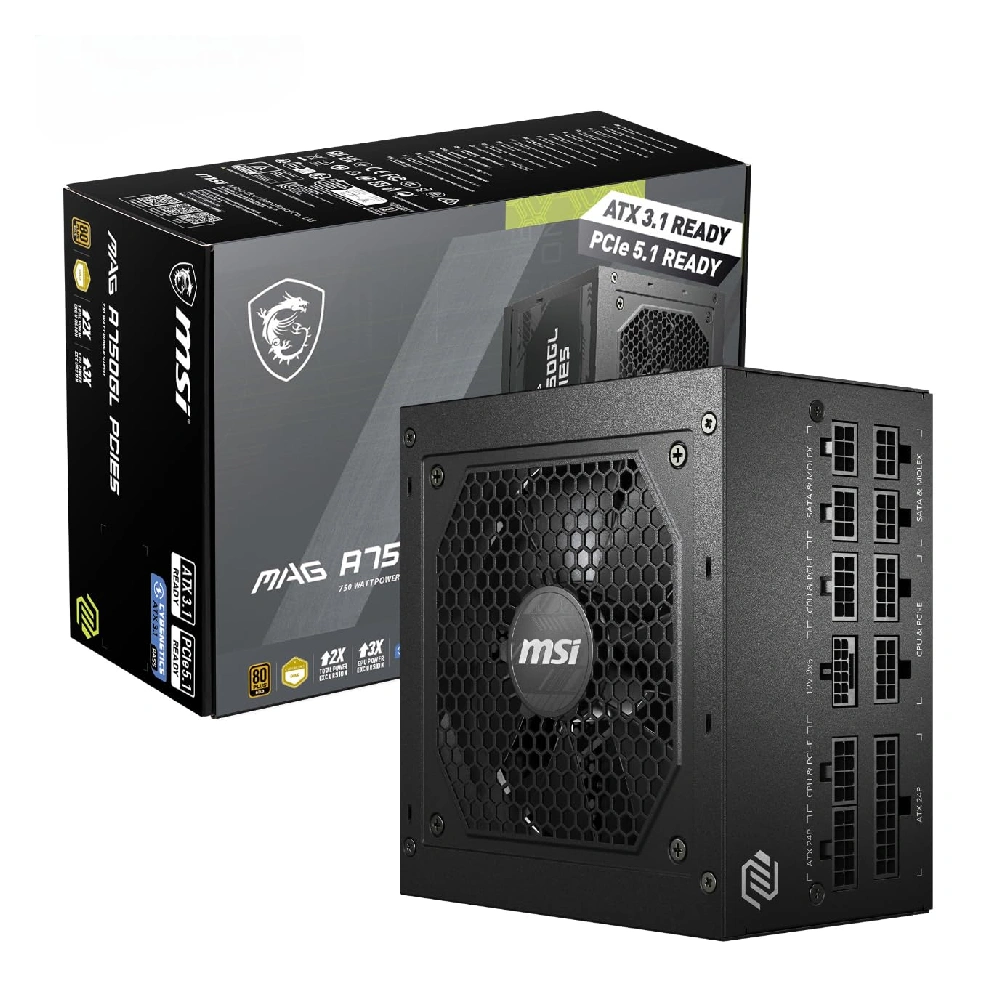

MSI MAG A750GL PCIE5 750w 80 Plus Gold Desktop Power Supply

Product ID: A0960
Item CD: 165CKJK
Model: MAG A750GL PCIE5
Warranty Period: 5 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here
Warranty Claim Procedure: Click here
DATASHEET: Click here

For More Information: 70738 88300

Specifications

Component: Specification
Efficiency Rating: 80 PLUS Gold (up to 90%)
Modular: Yes (Full Modular)
Fan Size: 120 mm
Fan Bearing: Fluid Dynamic Bearing
Dimensions (DxWxH): 140 x 150 x 86 mm
PFC Type: Active PFC
Input Voltage Range: 100~240 VAC
Power Watt: 750W
Power Excursion: 1500W (up to 200% for 100μs)
Input Frequency Range: 47–63 Hz
Protection: OCP / OVP / OPP / OTP / SCP / UVP

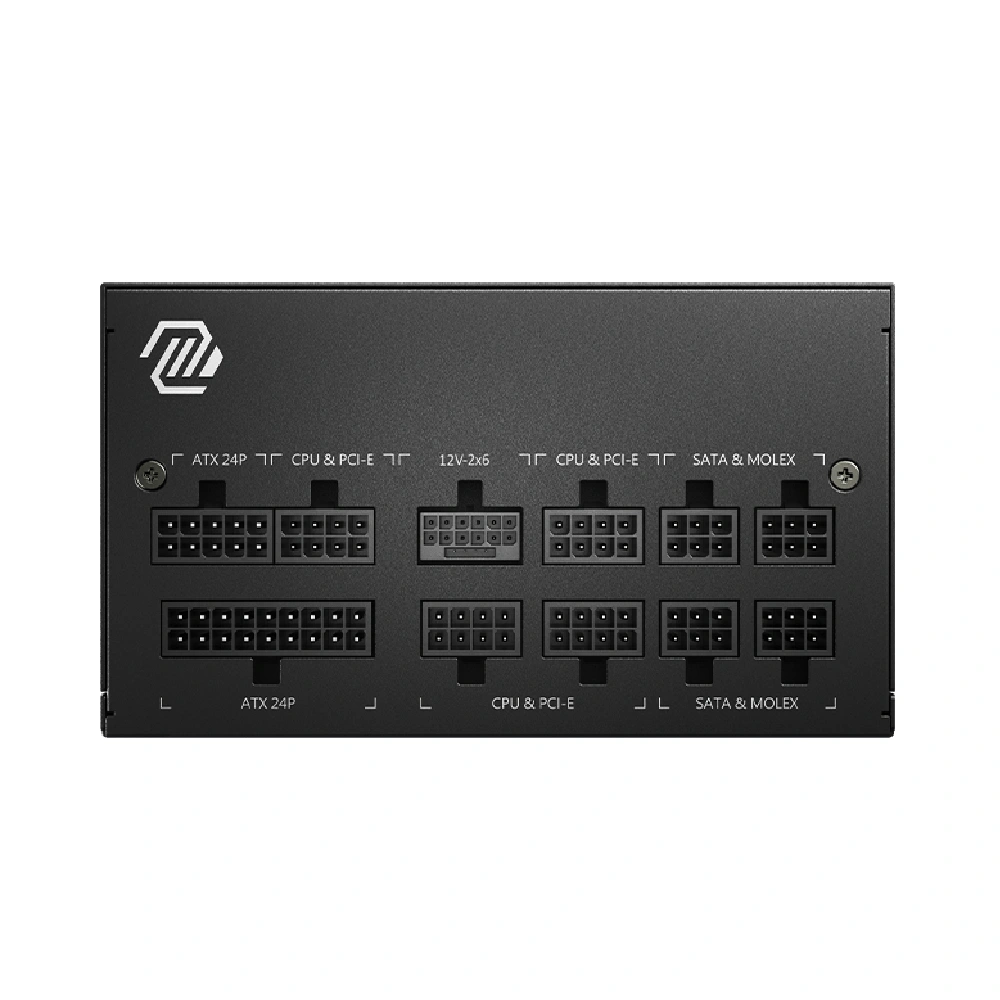

ATX (24 pin): 1
EPS (4+4 pin): 2
PCI-E 5.0 (16 pin): 1 (450W)
PCI-E (6+2 pin): 3
SATA (15 pin): 8
PERIPHERAL (4 pin): 4
FDD (4 pin): 1
