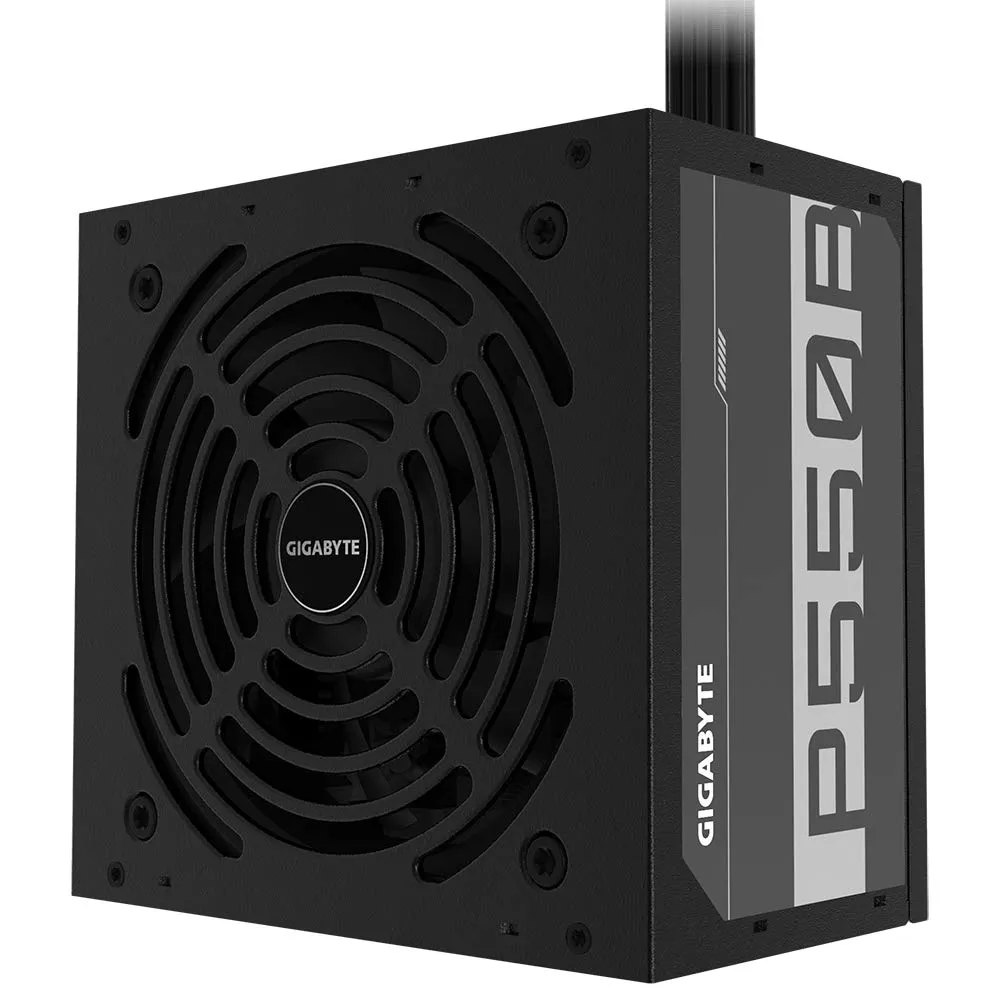

Gigabyte P550B 550w 80 Plus Bronze Desktop Power Supply

Product ID: P4753
Item CD: 0JNHD6O
Model: GP-P550B
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

Choose Configuration

For More Information: 70738 88300

Specifications

Feature: Specification
Model: P550B
Type: Intel Form Factor ATX 12V v2.31
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 8-4 A
Input Frequency: 60-50 Hz
Output Capacity: 550W
Dimension: 150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing (HYB) Fan
80 PLUS: Bronze
Efficiency: 85% at typical load
MTBF: >100,000 hours
Protection: OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal: 100-500ms
Hold Up Time: >16ms
Cable Type: Flat, All black
Connectors: ATX/MB 20+4 Pin x 1 : 550mm CPU/EPS 4+4 Pin x 1 : 600mm PCI-e 6+2 Pin x 2 : 550mm+150mm SATA x 6 : 500mm+120mm+120mm 4 Pin Peripheral x 3 + 4-Pin Floppy x 1 : 500mm+120mm+120mm+120mm
