- Category
- Specification
- Model

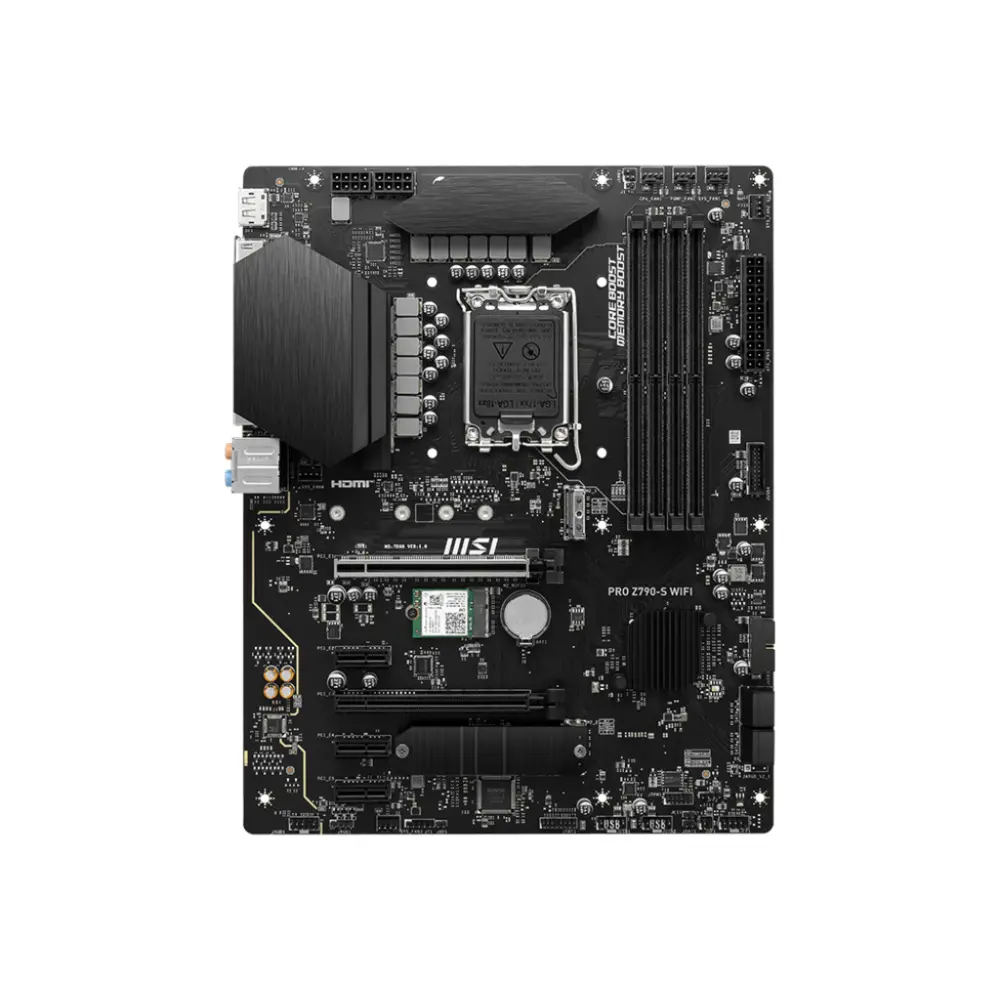

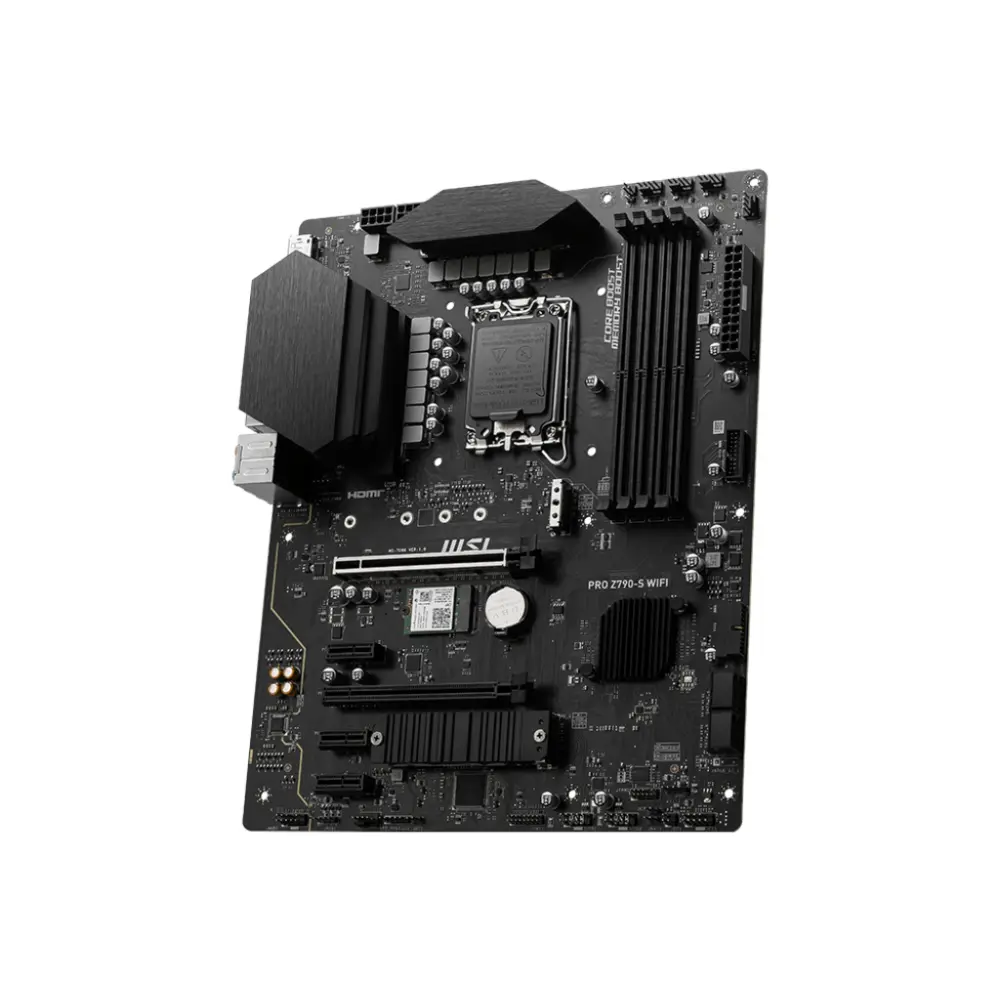

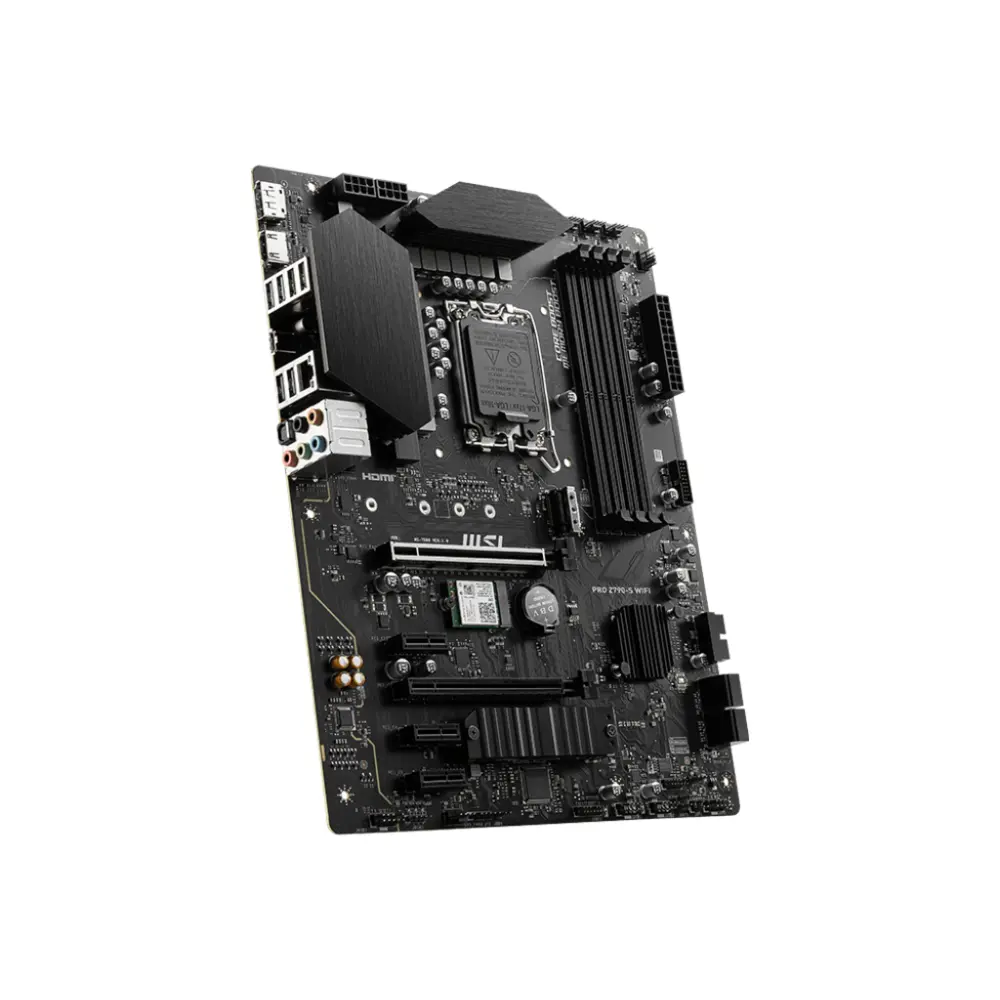

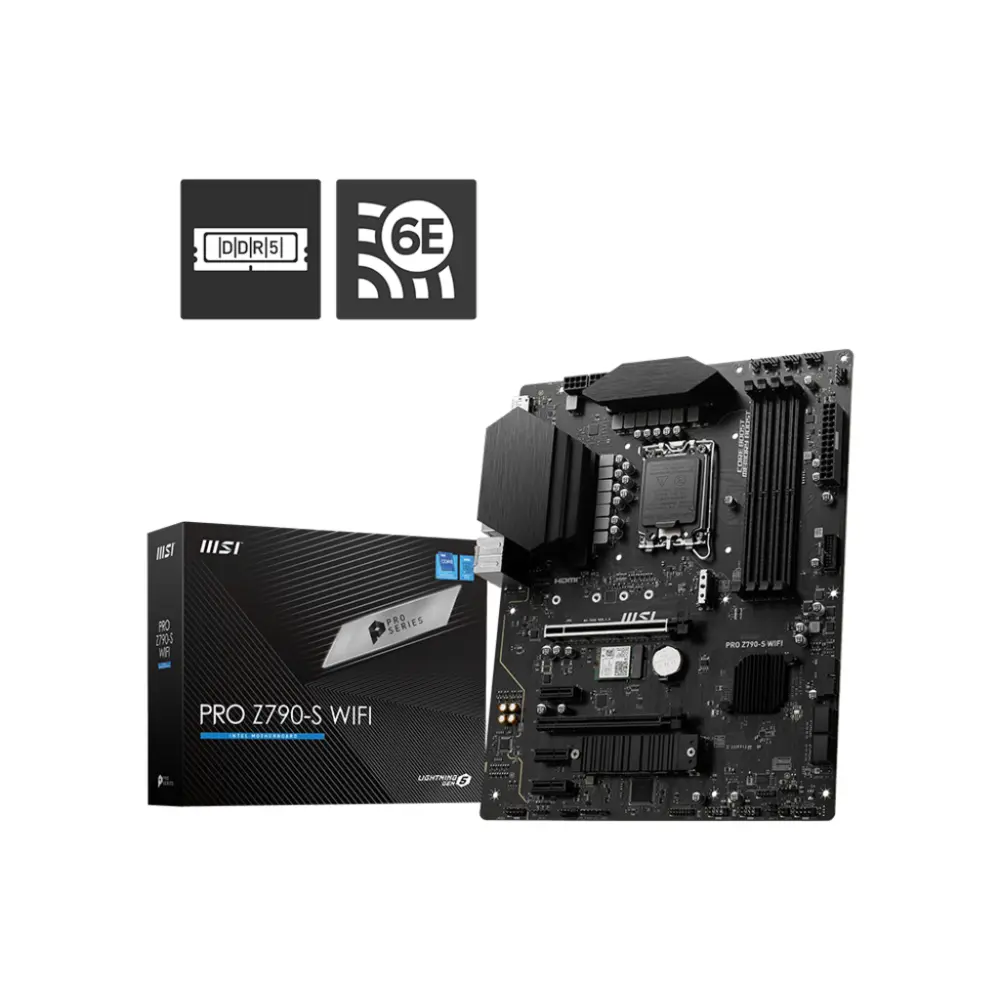

- MSI PRO Z790-S WIFI DDR5
- CPU Support
- Intel 12th, 13th & 14th Gen Core / Pentium Gold / Celeron (LGA 1700)
- Chipset
- Intel Z790
- Memory Support
- 4 x DDR5 DIMMs, Dual Channel, up to 192GB, 6600+ MHz (OC)
- Expansion Slots
- 1 x PCIe 5.0 x16 4 x PCIe 3.0 x1
- Storage
- 2 x M.2 slots (PCIe 4.0 x4) 4 x SATA 6Gb/s ports
- LAN
- Realtek RTL8125BG 2.5Gbps LAN
- Wireless
- Intel Wi-Fi 6E, Bluetooth 5.3
- Audio
- Realtek ALC897, 7.1-Channel HD Audio, S/PDIF Out
- USB Ports (Rear)
- 2 x USB 2.0 4 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C
- USB Ports (Front)
- 4 x USB 2.0 4 x USB 3.2 Gen 1
- Form Factor
- ATX (243.84mm x 304.8mm)
