- Brand
- MSI
- Model
- PRO Z890-S WIFI6E
- Chipset
- Intel Z890
- CPU Support
- Supports Intel Core Ultra Processors (Series 2) | LGA 1851 Socket
- Memory Support
- 4 x DDR5 UDIMM | Up to 256GB | Up to 8800+ MHz (OC)
- Expansion Slots
- 4 x PCIe x16 Slots (PCIe 5.0 / 4.0 / 3.0)
- Storage
- 3 x M.2 Slots (PCIe 5.0 / 4.0) | 4 x SATA 6Gb/s
- Graphics Output
- 1 x HDMI 2.1 | 1 x DisplayPort 1.4 (Up to 4K 60Hz)
- LAN
- Realtek 2.5Gbps Ethernet
- Wireless
- Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) | Bluetooth 5.3
- Audio
- Realtek ALC897 | 7.1 Channel HD Audio

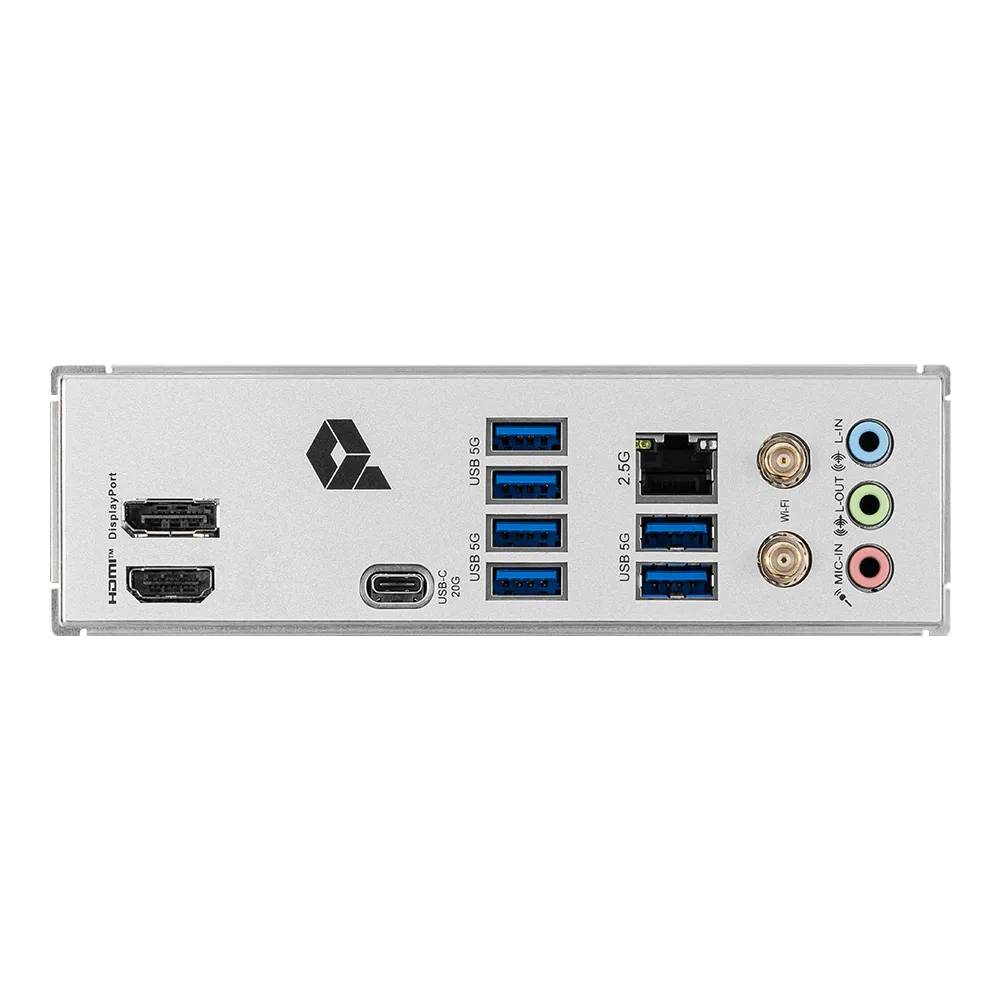

- USB Ports
- USB 20Gbps Type-C | USB 5Gbps Type-A | USB 2.0
- RAID Support
- RAID 0, 1, 5, 10 (SATA) | RAID 0, 1, 5 (NVMe)
- LED Feature
- EZ Debug LED
