- Model

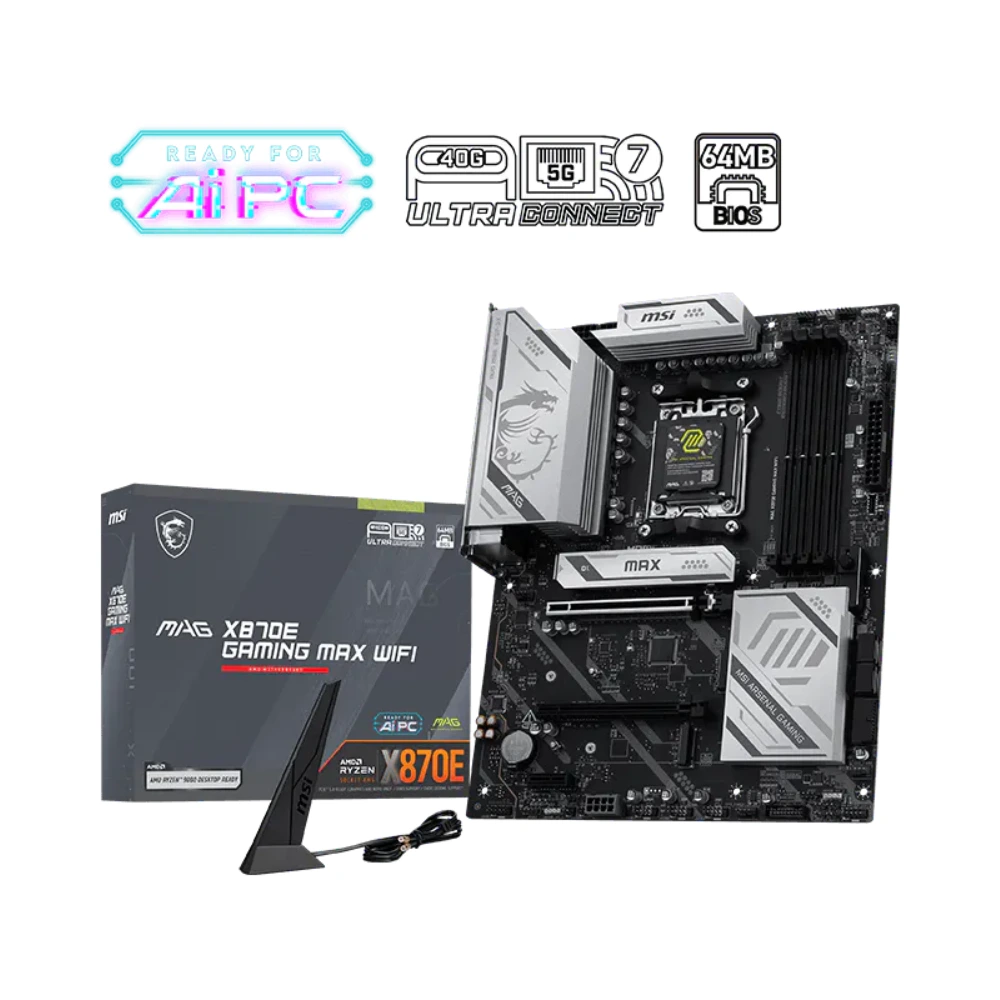

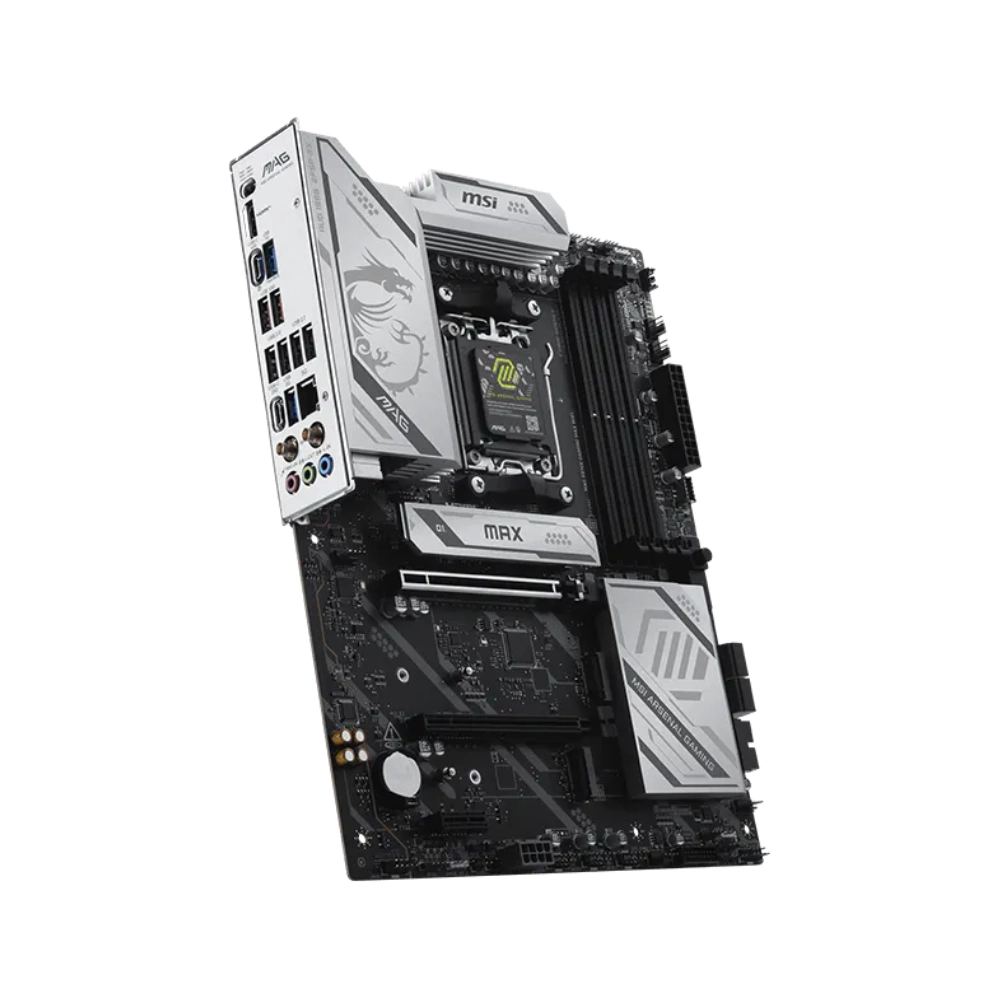

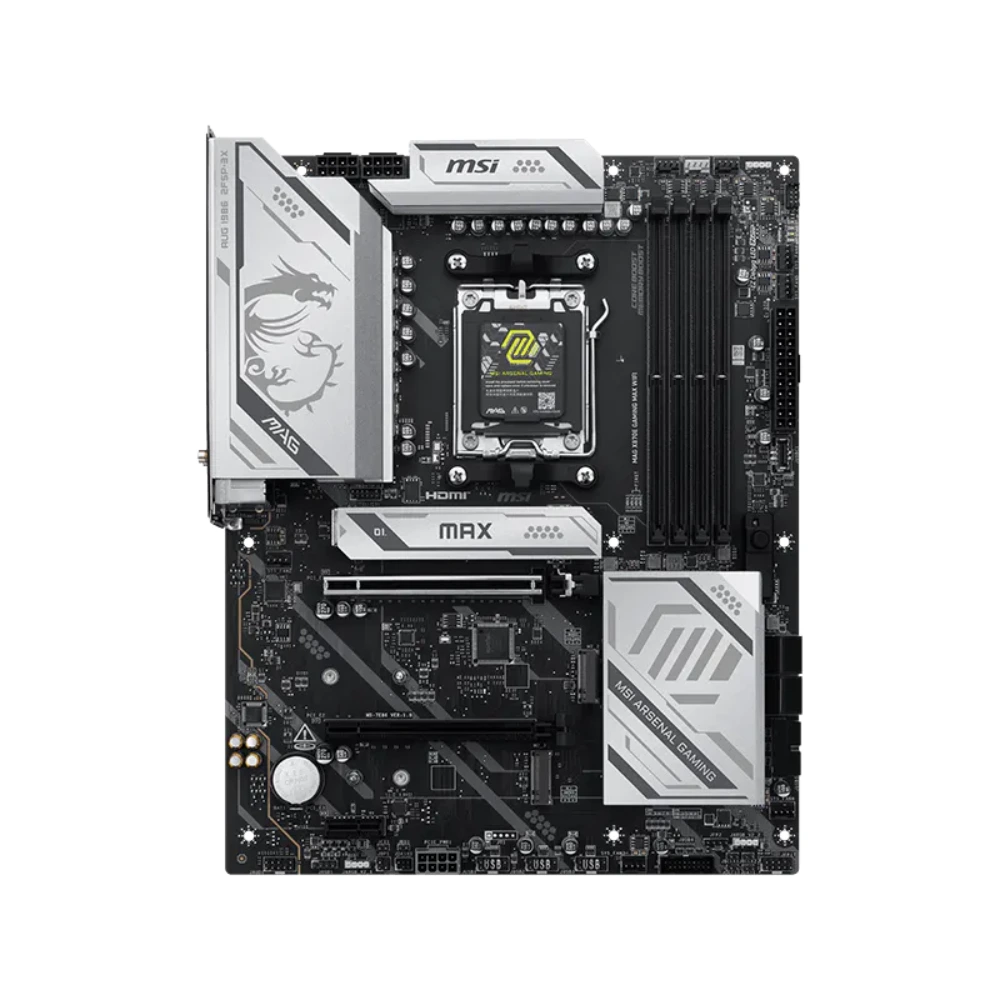

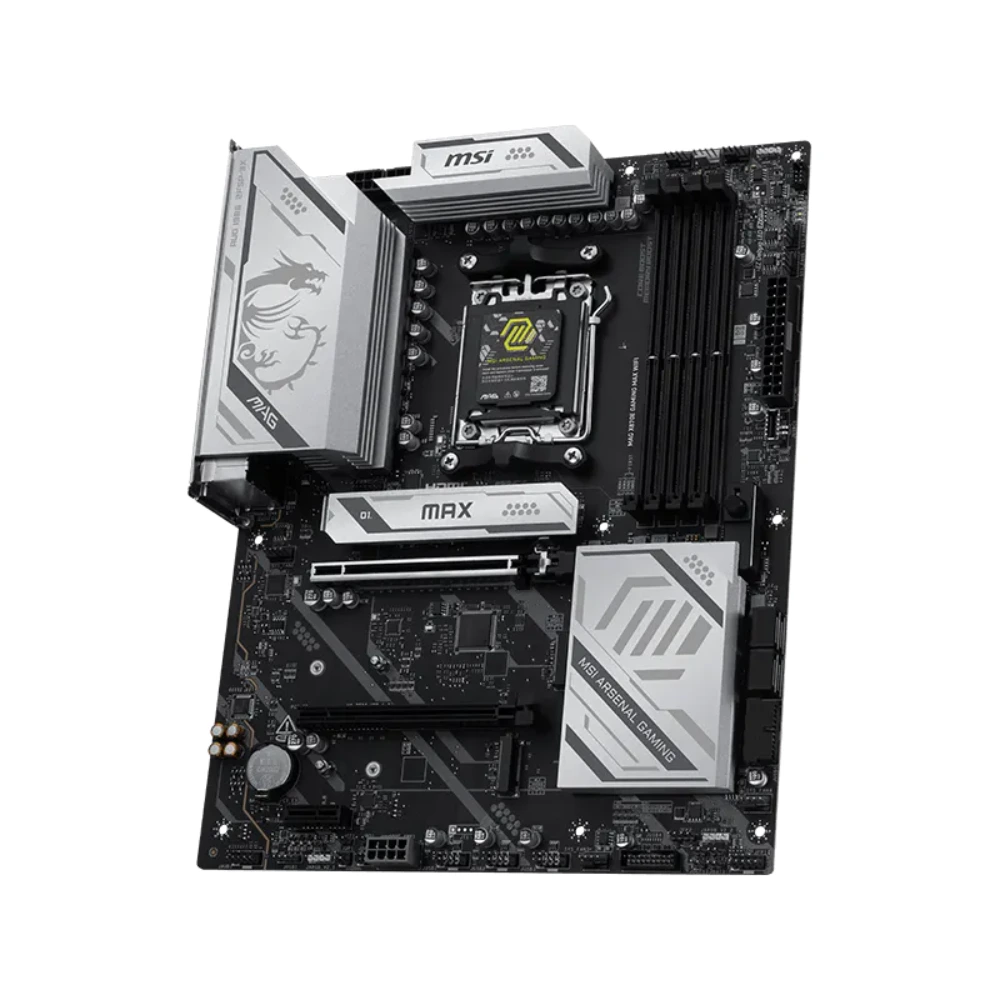

- MSI MAG X870E GAMING MAX WIFI
- Chipset
- AMD X870E
- CPU Support
- AMD Ryzen™ 9000, 8000 & 7000 Series Processors (Socket AM5)
- Memory Support
- 4 x DDR5 DIMM, Up to 256GB, DDR5 8200+ MT/s (OC)
- Memory Features
- Dual Channel, AMD EXPO™, Memory Overclocking, Non-ECC UDIMM
- Graphics Output
- 1 x HDMI 2.1 (4K@60Hz), 1 x USB4 Type-C DisplayPort (4K@120Hz)
- Expansion Slots
- 2 x PCIe x16 Slots, 1 x PCIe x1 Slot
- PCIe Support
- PCIe 5.0 x16, PCIe 4.0 x4 & PCIe 3.0 x1
- Storage
- 3 x M.2 Slots (1 x PCIe 5.0, 2 x PCIe 4.0) & 4 x SATA 6Gb/s
- RAID Support
- RAID 0, 1, 5, 10 (SATA) & RAID 0, 1, 5 (NVMe)
- Audio
- Realtek ALC897 7.1 Channel HD Audio
- LAN
- Realtek 8126 5G Ethernet
- Wireless Connectivity
- Wi-Fi 7 & Bluetooth 5.4

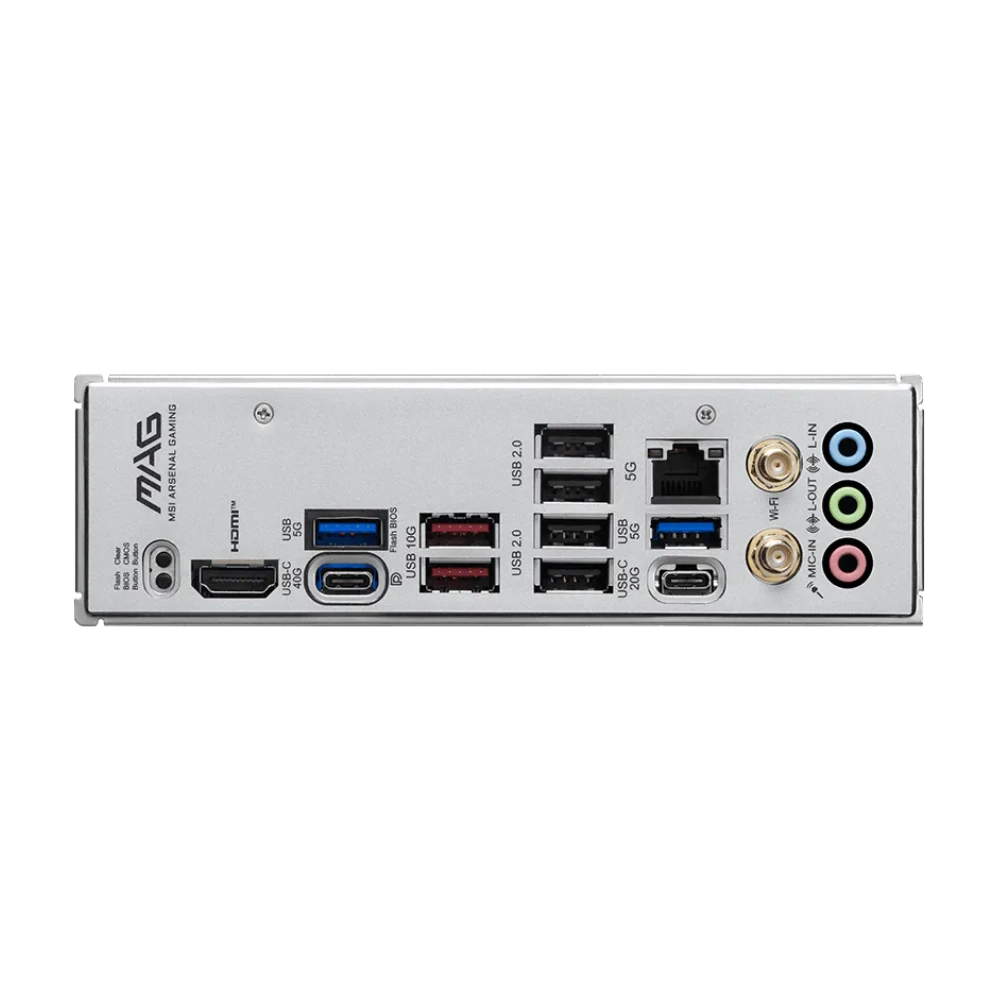

- USB Ports
- USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C & USB4 40Gbps Type-C
- Internal Connectors
- ATX Power, CPU Power, PCIe Power, Fan Headers, RGB Headers, TPM & Front USB Headers
- RGB Support
- 3 x Addressable RGB Gen2 Headers & 1 x RGB Header
- Cooling Support
- 1 x CPU Fan, 1 x Pump/System Fan & 6 x System Fan Headers
- Special Features
- Wi-Fi 7, PCIe 5.0, USB4, EZ Debug LED, AMD EXPO™, Direct OC Jumper & High-Speed Connectivity
- Form Factor
- ATX
