Category

Specification

CPU

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series, Socket AM5

Chipset

AMD X870

Memory

4x DDR5 UDIMM, up to 256GB DDR5 8400–5600 (OC), 5600–4800 (JEDEC) Dual-Channel, Non-ECC, Un-buffered, AMD EXPO™, CUDIMM (bypass mode) Max OC (Ryzen 9000): • 1DPC 1R – 8400+ • 1DPC 2R / 2DPC 1R – 6400+ • 2DPC 2R – 4800+ * CUDIMM/boot speeds may vary by CPU

Graphics

1x HDMI 2.1 FRL (8K@60Hz) 2x USB4 Type-C DisplayPort 1.4 (4K@60Hz) *Available only with processors featuring integrated graphics

Audio

Realtek® ALC4080, 7.1-Channel USB Audio, 32-bit/384kHz, S/PDIF output

LAN

Realtek® 8126-CG 5G LAN

Wi-Fi / Bluetooth

Wi-Fi 7, Bluetooth® 5.4, MU-MIMO, 2.4/5/6GHz (320MHz), up to 5.8Gbps

PCIe Slots

3x PCIe x16: • PCI_E1: Gen 5.0 x16 / 4.0 x8 / 4.0 x4 (CPU) • PCI_E2: Gen 3.0 x1 (Chipset) • PCI_E3: Gen 4.0 x4 (Chipset)* * PCI_E3 runs at x2 when M2_3 is used (or x4 with M2_3 disabled)

Storage

4x M.2: • M2_1 / M2_2: PCIe 5.0 x4 (CPU) • M2_3: PCIe 4.0 x2 (Chipset) • M2_4: PCIe 4.0 x4 (Chipset) 4x SATA 6Gb/s * M2_2 disabled on Ryzen 8500/8300 ** M2_2 shares bandwidth with rear USB4 (PCIe 5.0 x4 split to x2 each unless set in BIOS)

Multi-GPU

AMD MULTI-GPU Support

RAID

SATA: RAID 0, 1, 10 NVMe: RAID 0, 1, 5, 10 * RAID 5 only with Ryzen 9000 * RAID 10 (NVMe) supported on Ryzen 9000/7000 only

USB Ports

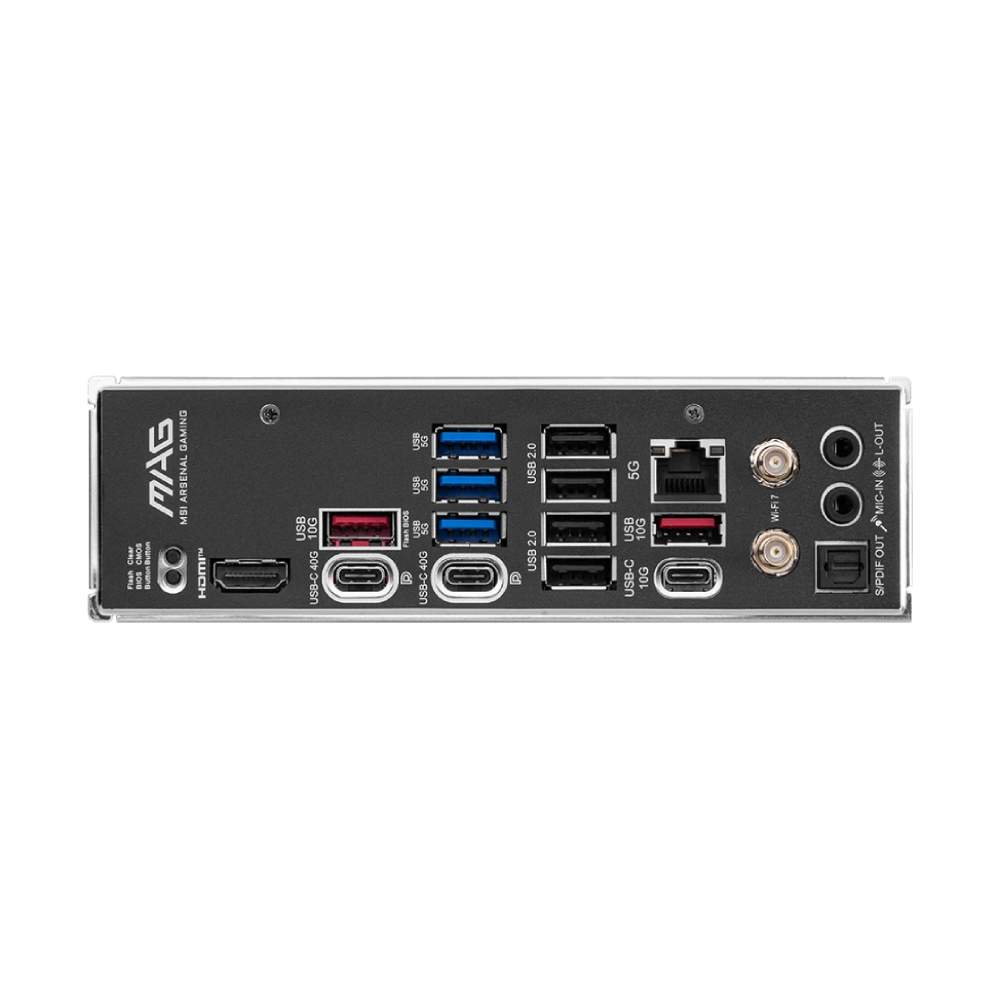

Rear: 4x USB 2.0, 3x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 40Gbps Type-C Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C

Internal Connectors

ATX_PWR, 2x CPU_PWR, PCIE_PWR (8pin) CPU Fan, Pump/Sys Fan Combo, 6x System Fan EZ Conn Header, JAUD, JCI, JFP (2x), TPM 2.0 3x JARGB_V2, 1x JRGB USB Headers: 4x USB 2.0, 4x USB 5Gbps, 1x USB 20Gbps Type-C

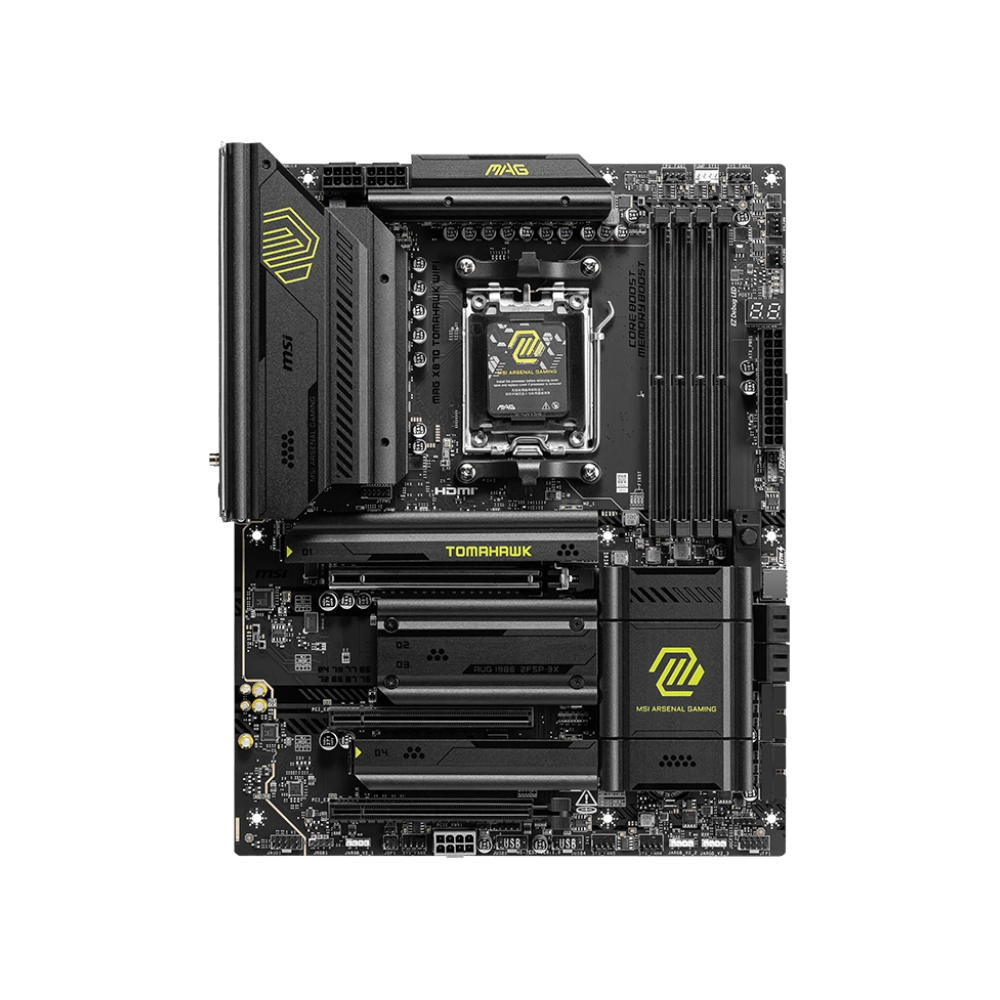

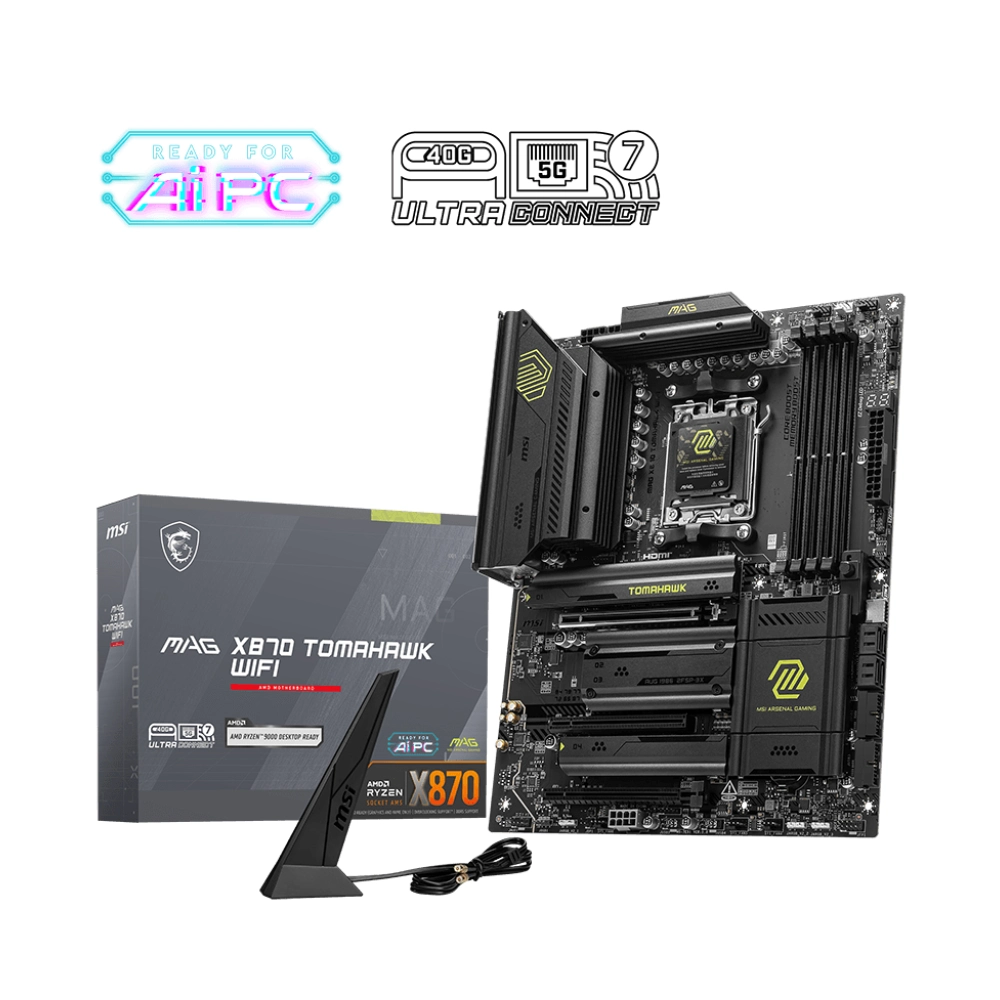

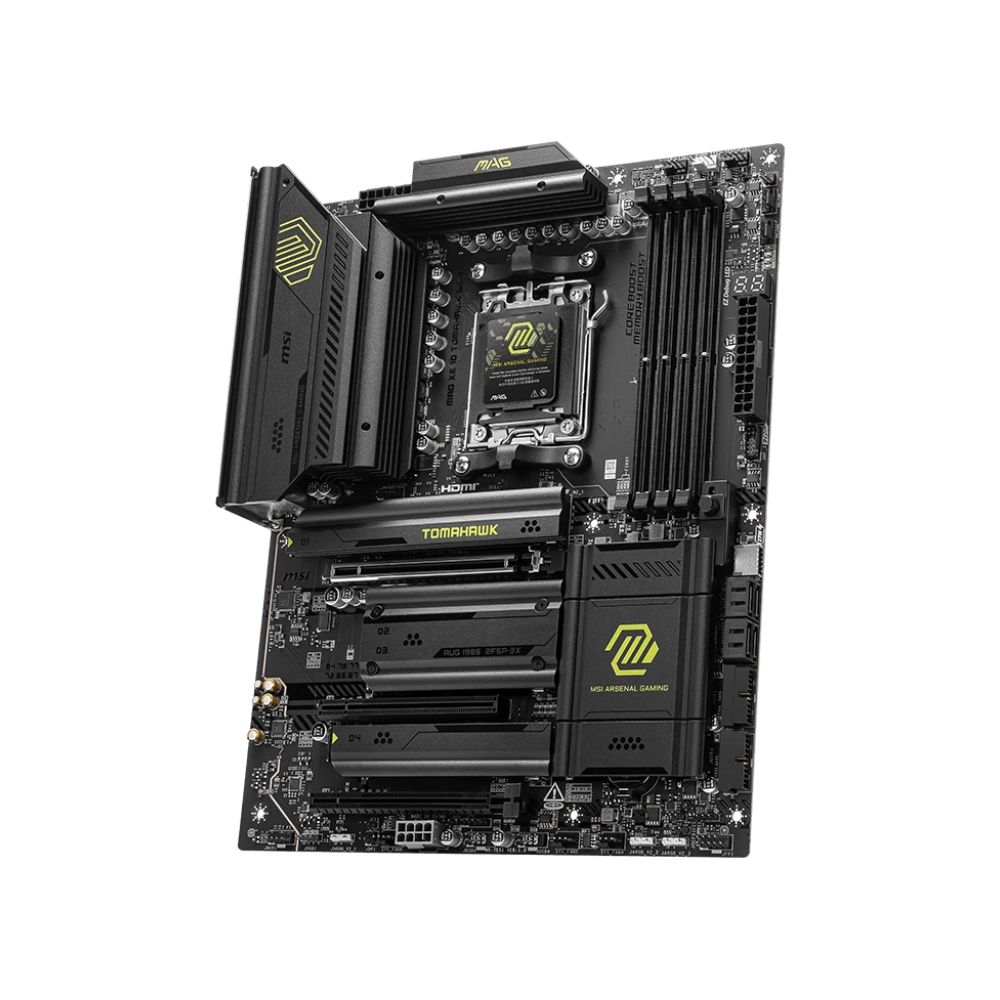

MSI Motherboard MAG X870 Tomahawk WIFI DDR5 For AMD
