- Category
- Specifications
- CPU
- Socket AM5, Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Chipset
- AMD X670
- Memory
- 4x DDR5, up to 256GB DDR5 7800+(OC) ~ 4800 JEDEC MHz Dual Channel, non-ECC, un-buffered Supports AMD EXPO™
- Graphics
- 1 x HDMI™ 2.1 (4K@120Hz) 1 x DisplayPort 1.4 (4K@60Hz) 1 x Type-C DP 1.4 (4K@120Hz)
- Audio
- Realtek® ALC1200, 7.1-Channel HD Audio, S/PDIF Out
- LAN
- Realtek® RTL8125BG 2.5Gbps LAN
- Wi-Fi / Bluetooth
- AMD Wi-Fi 6E, Bluetooth® 5.3
- PCIe Slots
- 3 x PCIe x16 (CPU/Chipset) 1 x PCIe x1 (Chipset) PCI_E1: PCIe 5.0 x16, PCI_E3: PCIe 4.0 x4, PCI_E4: PCIe 4.0 x2
- Storage
- 4 x M.2 (1x PCIe 5.0, 3x PCIe 4.0) 4 x SATA 6Gb/s RAID 0/1/10 (SATA) RAID 0/1/5/10 (NVMe, Ryzen 9000 only for RAID 5)
- USB Ports
- Rear: 4 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C Front: 4 x USB 2.0, 4 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C
- Internal Connectors
- ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 6x Sys Fan, RGB/ARGB headers, TPM, Front Panel, Audio, JDASH

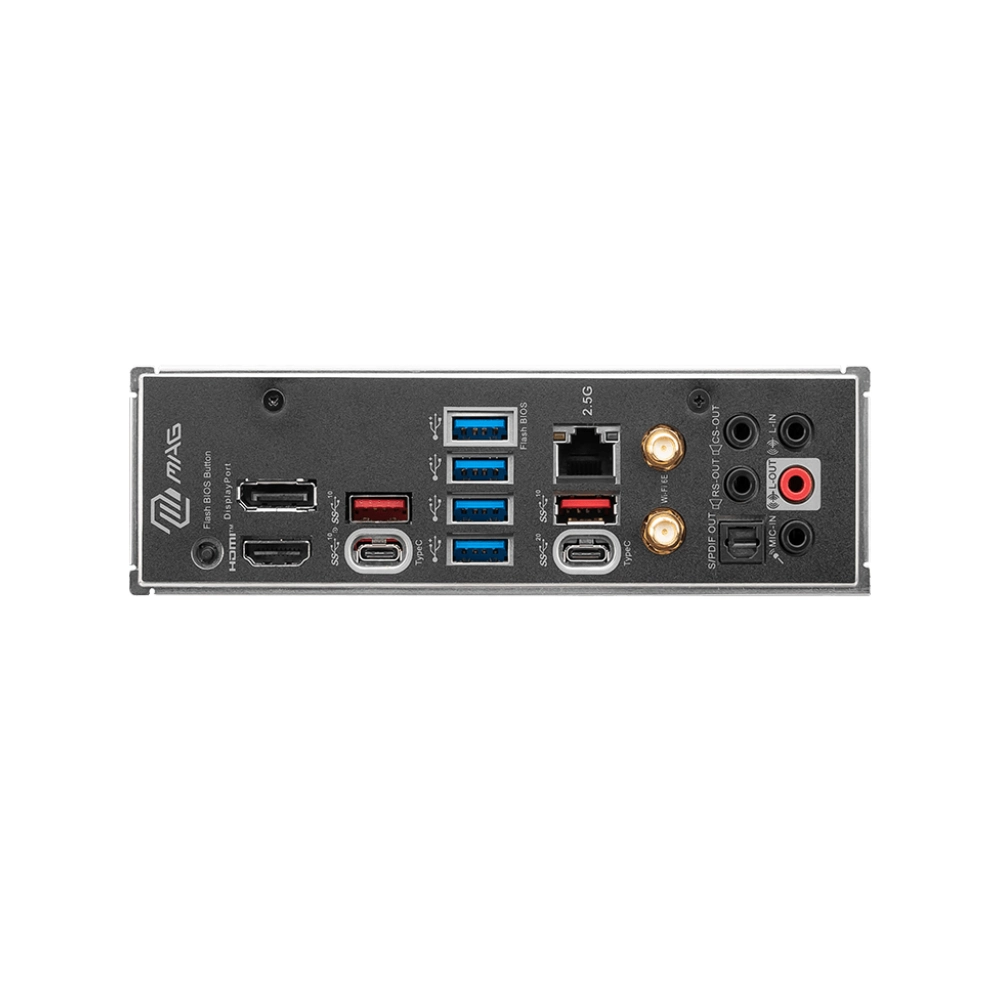

- Back Panel
- HDMI, DP, USB 2.0/3.2/Type-C, LAN, Audio, Wi-Fi Antennas (via internal M.2 Key-E)
