- Specification
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
- Chipset
- Intel B860
- Memory
- 4x DDR5 UDIMM, up to 256GB Support up to 9200+ MT/s (OC), Dual-Controller Dual-Channel, Intel® XMP 3.0, CUDIMM, Non-ECC Un-buffered
- Graphics

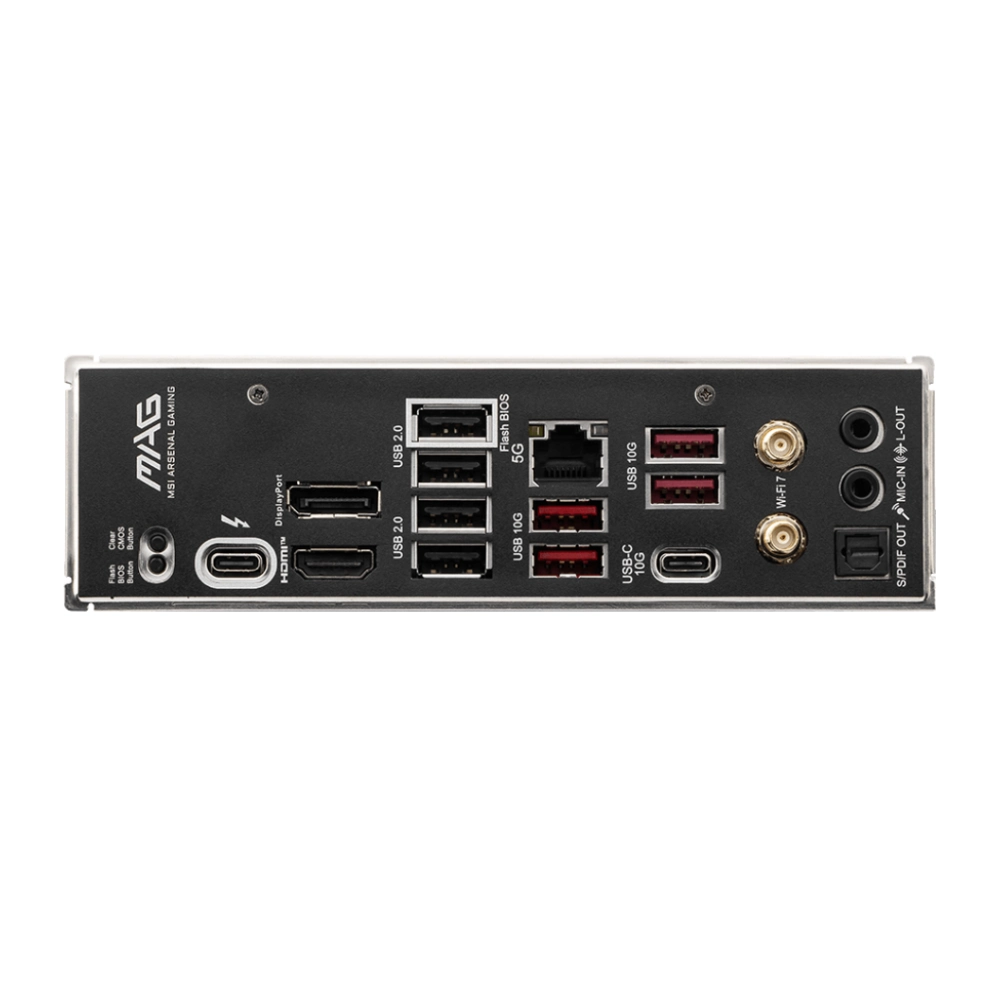

- 1x HDMI 2.1 (8K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) 1x USB-C Thunderbolt™ 4 (DP 2.1 up to 8K@60Hz) *Requires CPU with integrated graphics
- PCIe Slots
- 2x PCIe x16 (1x Gen5 x16, 1x Gen4 x4) 1x PCIe x1 Gen4 *PCI_E3 runs at x2 if PCI_E2 is populated
- Storage
- 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) 4x SATA 6Gb/s RAID 0/1/5/10 supported
- LAN & Wireless
- Intel® Killer™ E5000 5Gbps LAN Intel® Killer™ BE1750x Wi-Fi 7, BT 5.4, MLO, 4KQAM
