Specifications

CPU

Socket AM5, Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Chipset

AMD B650

Memory

4x DDR5, up to 256GB DDR5 7600+(OC) ~ 4800 MHz (JEDEC) Max OC Frequency: • 1DPC 1R: 7600+ MHz • 1DPC 2R / 2DPC 1R: 6400+ MHz • 2DPC 2R: 5400+ MHz

Graphics

1 x HDMI™ 2.1 (4K@60Hz) 1 x DisplayPort 1.4 (8K@60Hz) *Only available with processors featuring integrated graphics

Audio

Realtek® ALC4080 Codec, 7.1-Channel High Performance Audio, S/PDIF Output Up to 32-Bit/384kHz playback (front panel)

LAN

Realtek® RTL8125B 2.5Gbps LAN

Wi-Fi / Bluetooth

AMD Wi-Fi 6E, Bluetooth® 5.3, MU-MIMO, 2.4GHz / 5GHz / 6GHz support

PCIe Slots

2 x PCIe x16 • Ryzen 9000/7000: x16/x4 • Ryzen 8700/8600/8400: x8/x4 • Ryzen 8500/8300: x4/x4 1 x PCIe x1 • PCI_E1 (CPU): Gen 4.0 x16 • PCI_E2 (Chipset): Gen 3.0 x1 • PCI_E3 (Chipset): Gen 4.0 x4

Storage

2 x M.2 • M2_1 (CPU): PCIe 4.0 x4 (2280/2260) • M2_2 (CPU): PCIe 4.0 x4 (2280/2260) *M2_2 unavailable with Ryzen 8500/8300 6 x SATA 6Gb/s

RAID

• SATA: RAID 0, 1, 10 (*SATA_A1_A2 not supported) • NVMe: RAID 0, 1

USB Ports

Rear: 4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 20Gbps Type-C Front: 4 x USB 2.0, 2 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C

Internal Connectors

ATX_PWR, 2 x CPU_PWR, CPU Fan, Pump Fan, 3 x System Fan, RGB/ARGB headers, TPM, JDASH, JAUD, JFP, JCI

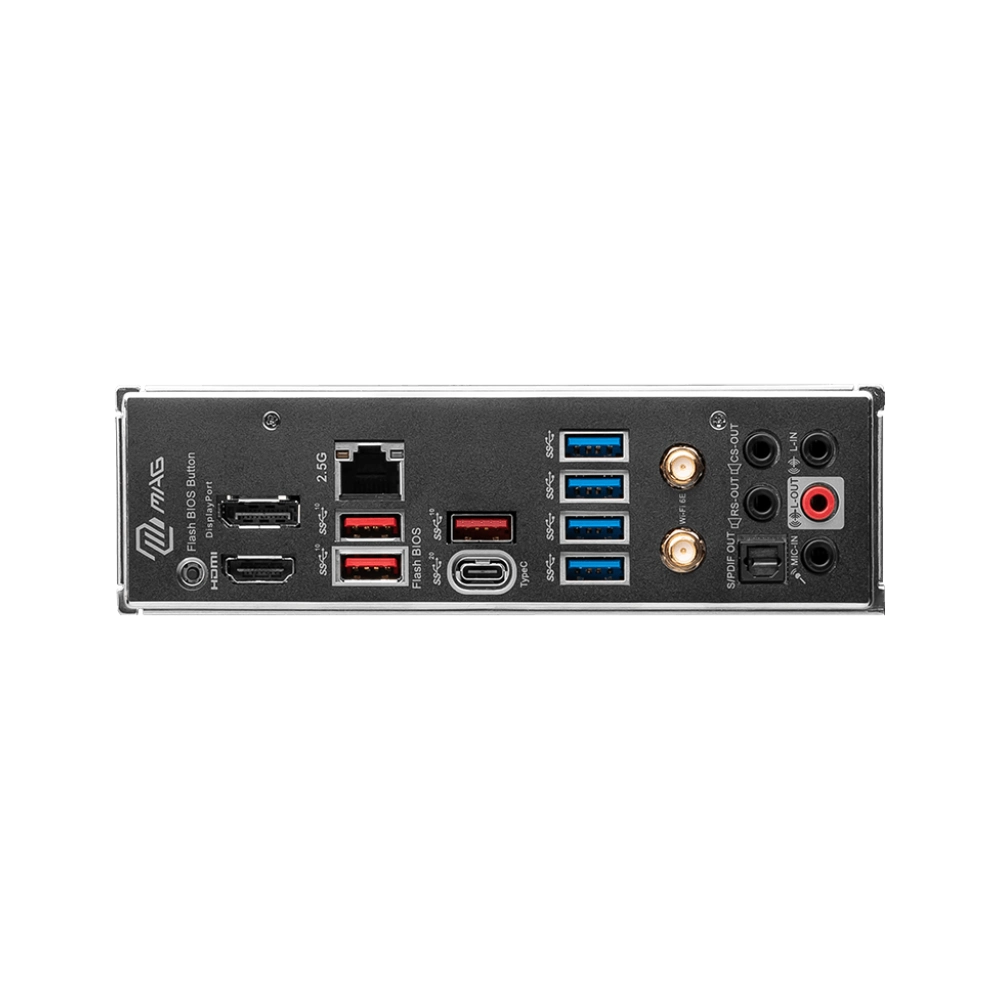

Back Panel

HDMI, DP, USB 2.0/3.2/Type-C, LAN, Audio, Wi-Fi Antennas (via internal M.2 Key-E)
