- Category
- Specification
- CPU
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series, Socket AM5
- Chipset
- AMD B650
- Memory
- 4x DDR5, up to 256GB DDR5 7600+(OC) to 4800 (JEDEC) MHz Dual-Channel, non-ECC, un-buffered, AMD EXPO Max OC: • 1DPC 1R – 7600+ • 1DPC 2R / 2DPC 1R – 6400+ • 2DPC 2R – 5400+
- Graphics
- 1x HDMI 2.1 (4K@60Hz) 1x DisplayPort 1.4 (8K@60Hz) *Only with CPUs featuring integrated graphics
- Audio
- Realtek® ALC4080, 7.1-Channel, S/PDIF, 32-bit/384kHz
- LAN
- Realtek® RTL8125BG 2.5Gbps LAN
- Wi-Fi / Bluetooth
- Wi-Fi 6E, Bluetooth® 5.3 (M.2 Key-E, MU-MIMO)
- PCIe Slots
- 2x PCIe x16 (x16/x2, x8/x2, x4/x2 based on CPU) 1x PCIe x1 PCI_E1: Gen 4.0 x16 (CPU) PCI_E2: Gen 4.0 x2 (Chipset) PCI_E3: Gen 3.0 x1 (Chipset)
- Storage
- 3x M.2: • M2_1 (CPU): PCIe 4.0 x4 (22110/2280) • M2_2 (CPU): PCIe 4.0 x4 (2280/2260) • M2_3 (Chipset): PCIe 4.0 x4 (2280/2260) 6x SATA 6Gb/s *M2_2 disabled with Ryzen 8500/8300 **M2_3 & PCI_E2 share bandwidth
- RAID
- SATA: RAID 0, 1, 10 (except SATA_A1_A2) NVMe: RAID 0, 1

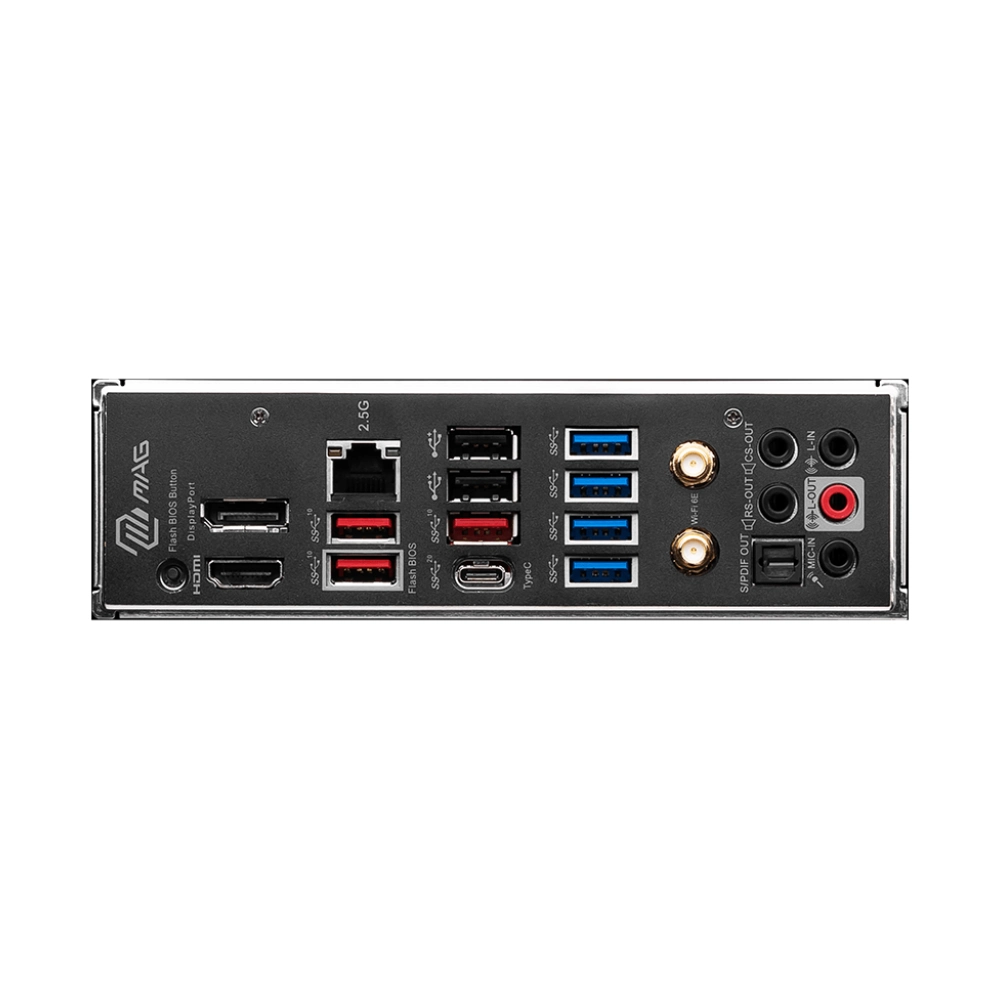

- USB Ports
- Rear: 2x
