- Brand & Model

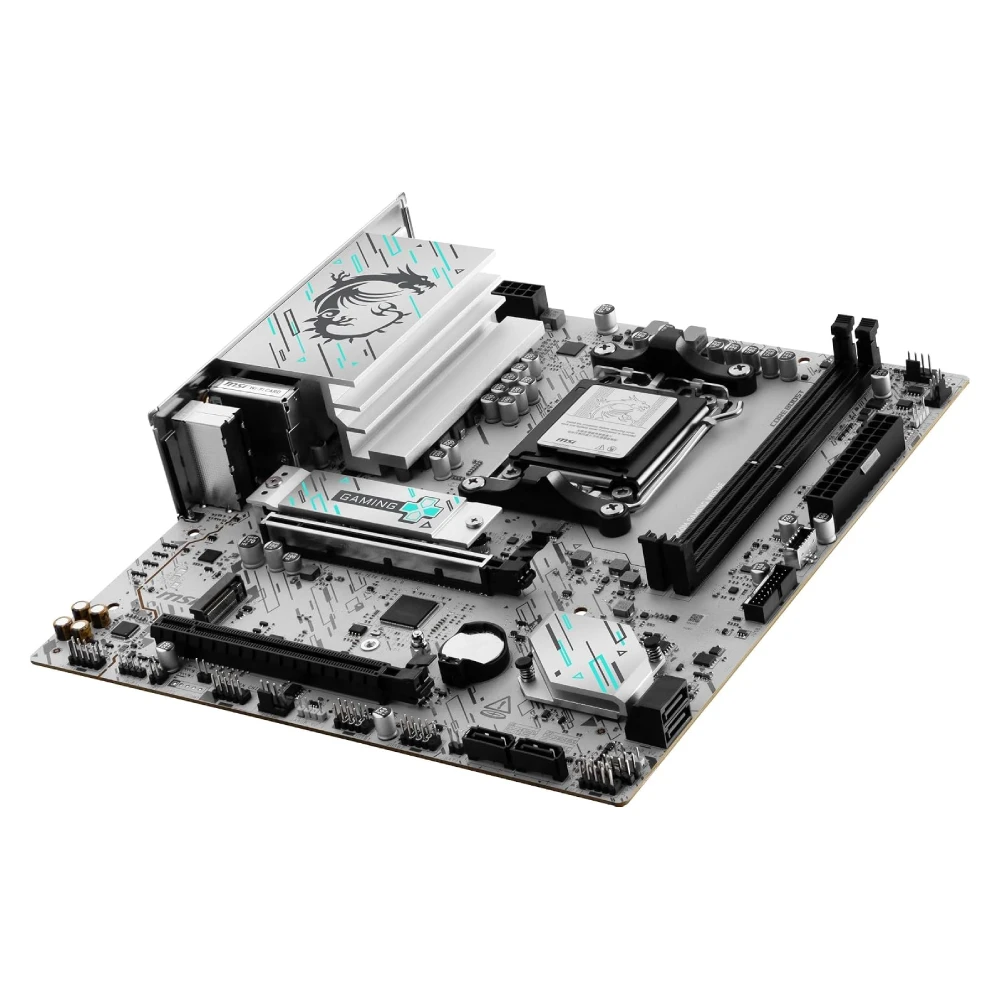

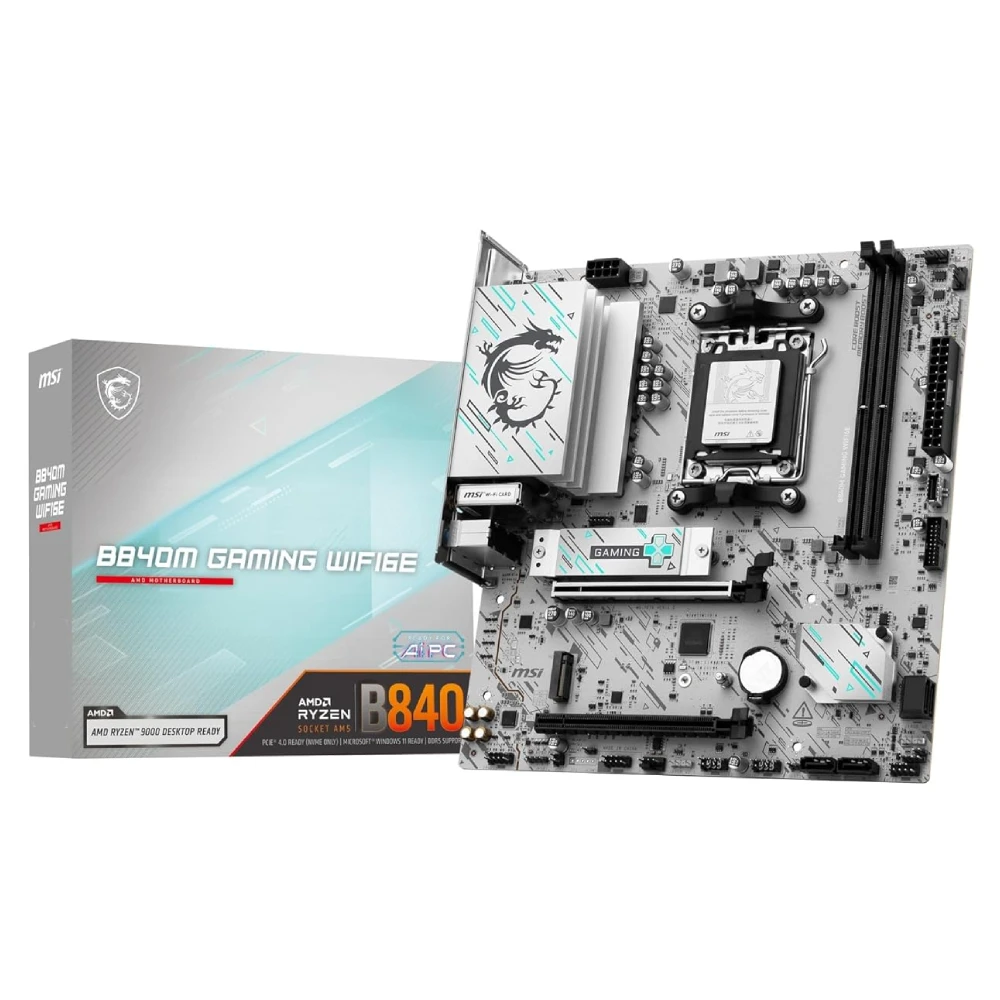

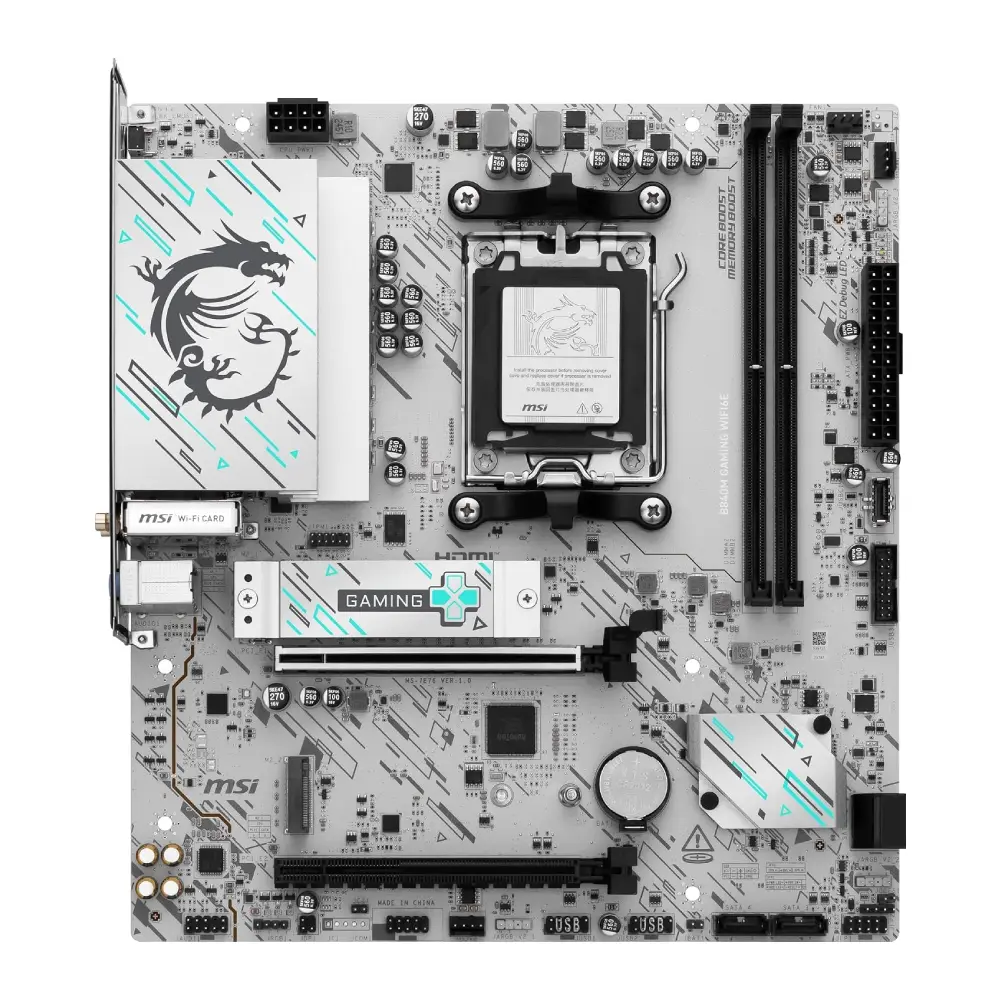

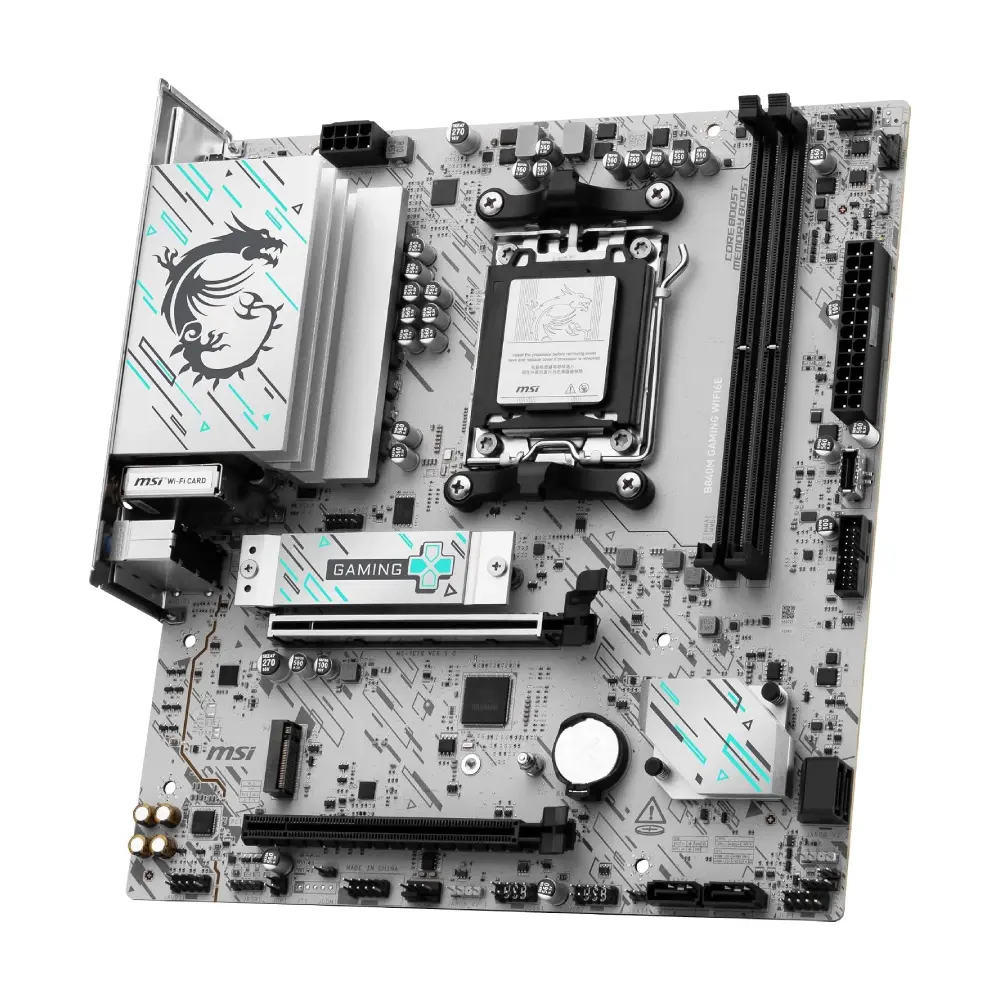

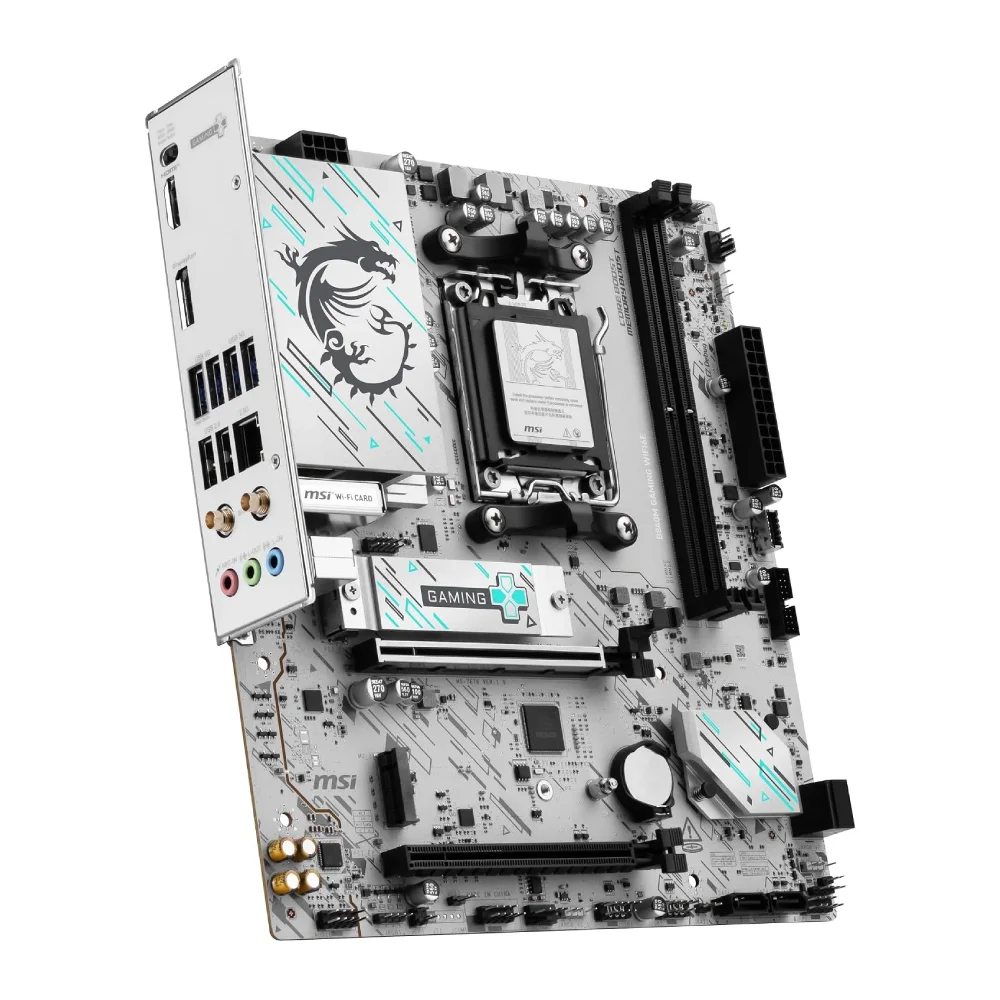

- MSI B840M GAMING WIFI6E
- Chipset & Socket
- AMD B840 Chipset, AM5 Socket
- Processor Support
- AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
- Memory Support
- 2 × DDR5 DIMM Slots, Up to 128GB, Dual Channel, Up to 8000+ MT/s (OC), AMD EXPO Support
- Graphics Output
- 1 × HDMI 2.1, 1 × DisplayPort 1.4, Up to 4K @ 60Hz (Requires Processor with Integrated Graphics)
- Expansion Slots
- 1 × PCIe 4.0 x16 Slot, 1 × PCIe 3.0 x16 Slot (x4 Mode); PCIe 4.0 Slot Bandwidth Varies by CPU
- Storage Support
- 2 × M.2 PCIe 4.0 x4 Slots (2260/2280), 4 × SATA 6Gb/s Ports, RAID 0/1/10 Support for SATA
- Audio
- Realtek ALC897 Codec, 7.1-Channel High Definition Audio
- LAN Connectivity
- Realtek 8125D 2.5 Gigabit Ethernet LAN
- Wireless Connectivity
- Wi-Fi 6E (802.11ax), 2.4GHz / 5GHz / 6GHz, Up to 2.4Gbps, MU-MIMO Support, Bluetooth 5.3
- USB Connectivity
- Rear: 4 × USB 5Gbps Type-A, 2 × USB 2.0; Front Headers: 2 × USB 5Gbps Type-A, 1 × USB 5Gbps Type-C, 4 × USB 2.0
- Additional Features
- 4 × EZ Debug LEDs, EZ Memory Detection LED, RGB & ARGB Headers, TPM 2.0 Header, CPU & System Fan Headers
