- Specification
- CPU
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series, Socket AM5
- Chipset
- AMD B650
- Memory
- 4x DDR5, up to 256GB DDR5 7200+ (OC) down to 4800 (JEDEC) MHz Dual-Channel, Non-ECC, Un-buffered, AMD EXPO™ Max OC: • 1DPC 1R – 7200+ MHz • 1DPC 2R / 2DPC 1R – 6000+ MHz • 2DPC 2R – 5400+ MHz
- Graphics
- 1x HDMI 2.1 (4K@60Hz, HDR) 1x DisplayPort 1.4 (4K@60Hz) *Available only with processors featuring integrated graphics
- Audio
- Realtek® ALC897, 7.1-Channel High Definition Audio
- LAN
- Realtek® 8125BG 2.5G LAN
- Wi-Fi / Bluetooth
- Wi-Fi 6E, MU-MIMO, 2.4GHz/5GHz/6GHz, Bluetooth® 5.3
- PCIe Slots
- 2x PCIe x16 (x16/x4, x8/x4, x4/x4 depending on CPU) 1x PCIe x1 (Gen 3.0) PCI_E1: Gen 4.0 x16 (CPU) PCI_E2: Gen 3.0 x1 (Chipset) PCI_E3: Gen 4.0 x4 (Chipset)
- Storage
- 2x M.2: • M2_1: PCIe 4.0 x4 (CPU, 22110/2280) • M2_2: PCIe 4.0 x4 (CPU, 2280/2260) *M2_2 runs PCIe 4.0 x2 on Ryzen 8500/8300 4x SATA 6Gb/s
- Multi-GPU
- AMD MULTI-GPU Support
- RAID
- SATA: RAID 0, 1, 10 NVMe: RAID 0, 1
- USB Ports

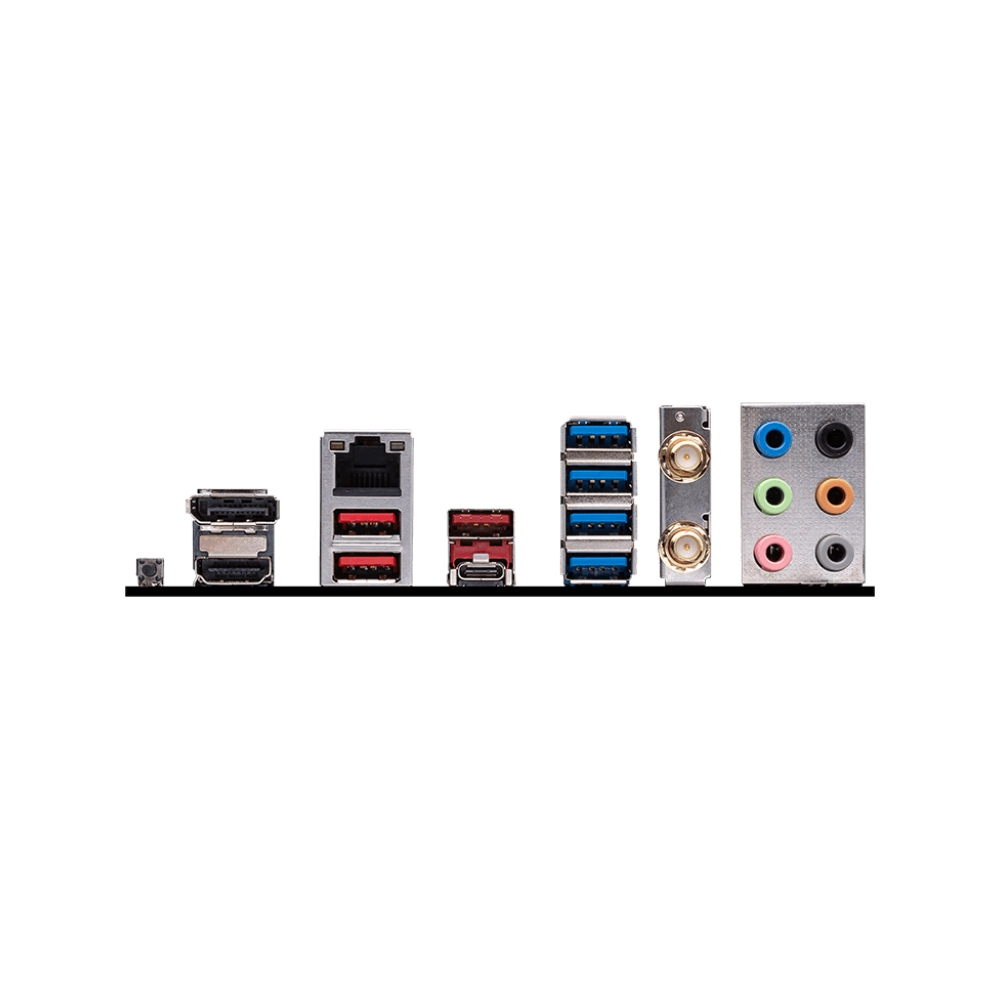

- Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
- Internal Connectors
- ATX_PWR, 2x CPU_PWR CPU Fan, Pump Fan, 4x System Fan 2x JFP, JCI, JAUD, JCOM, JDASH 2x JARGB_V2, 2x JRGB TPM 2.0 Header USB: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps Type-C
