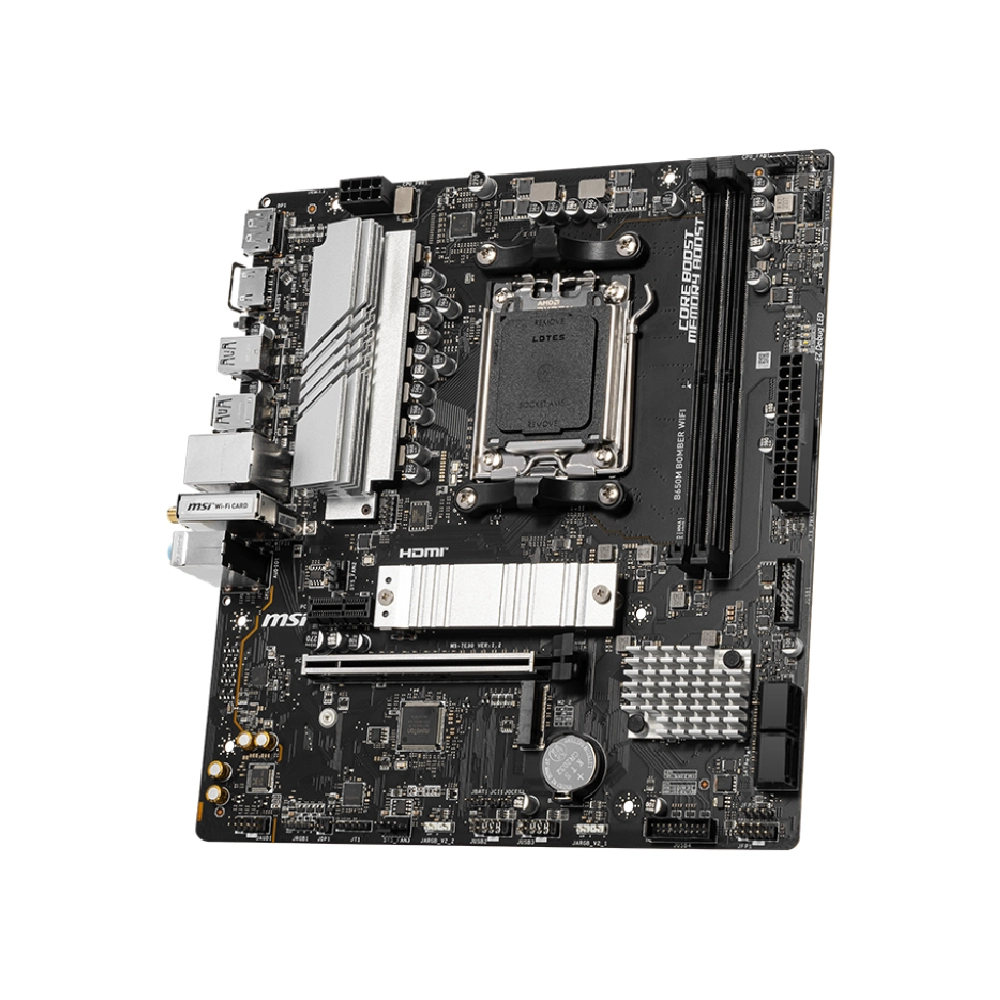

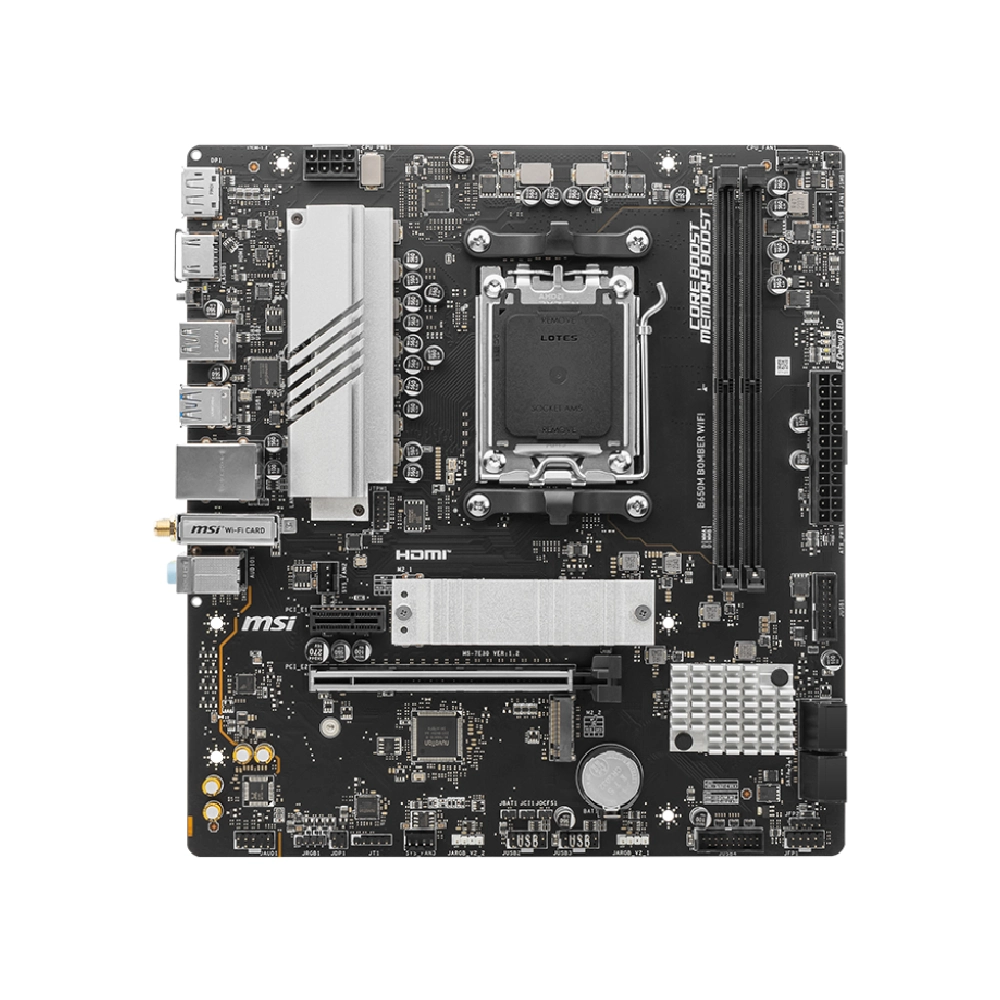

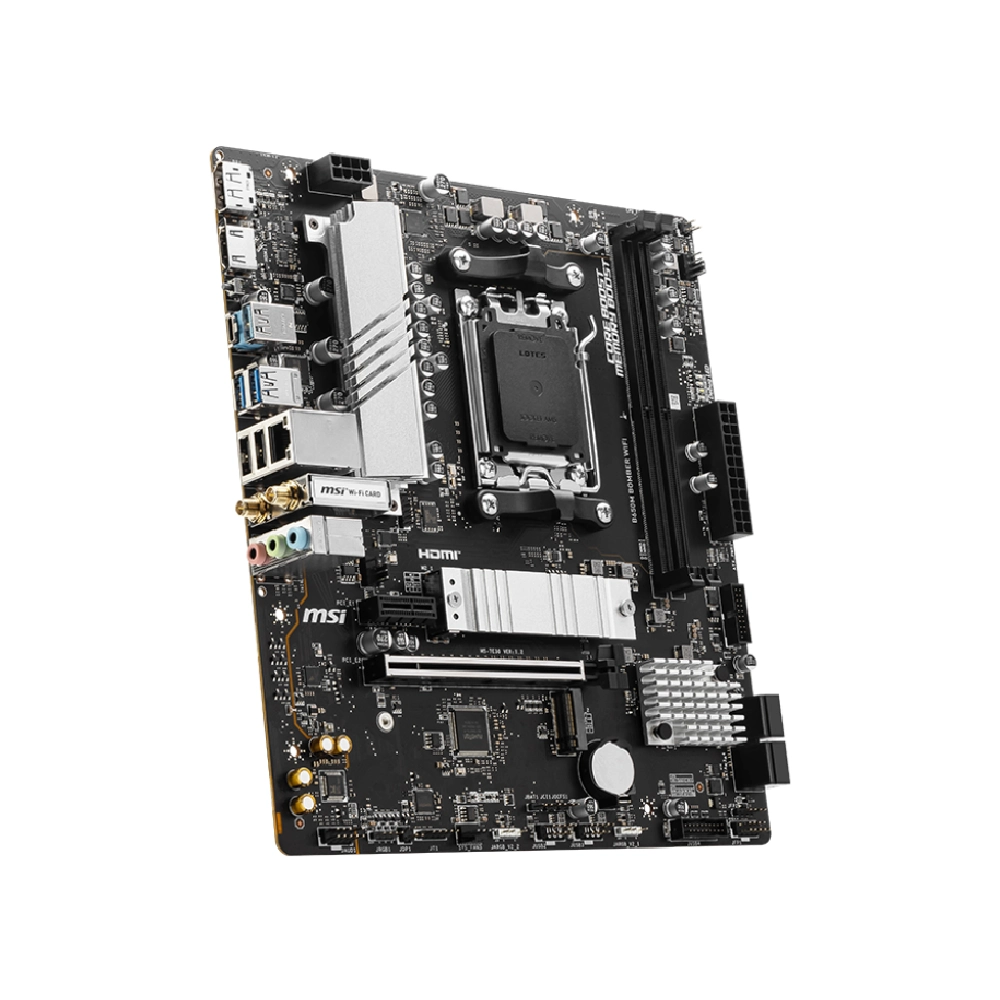

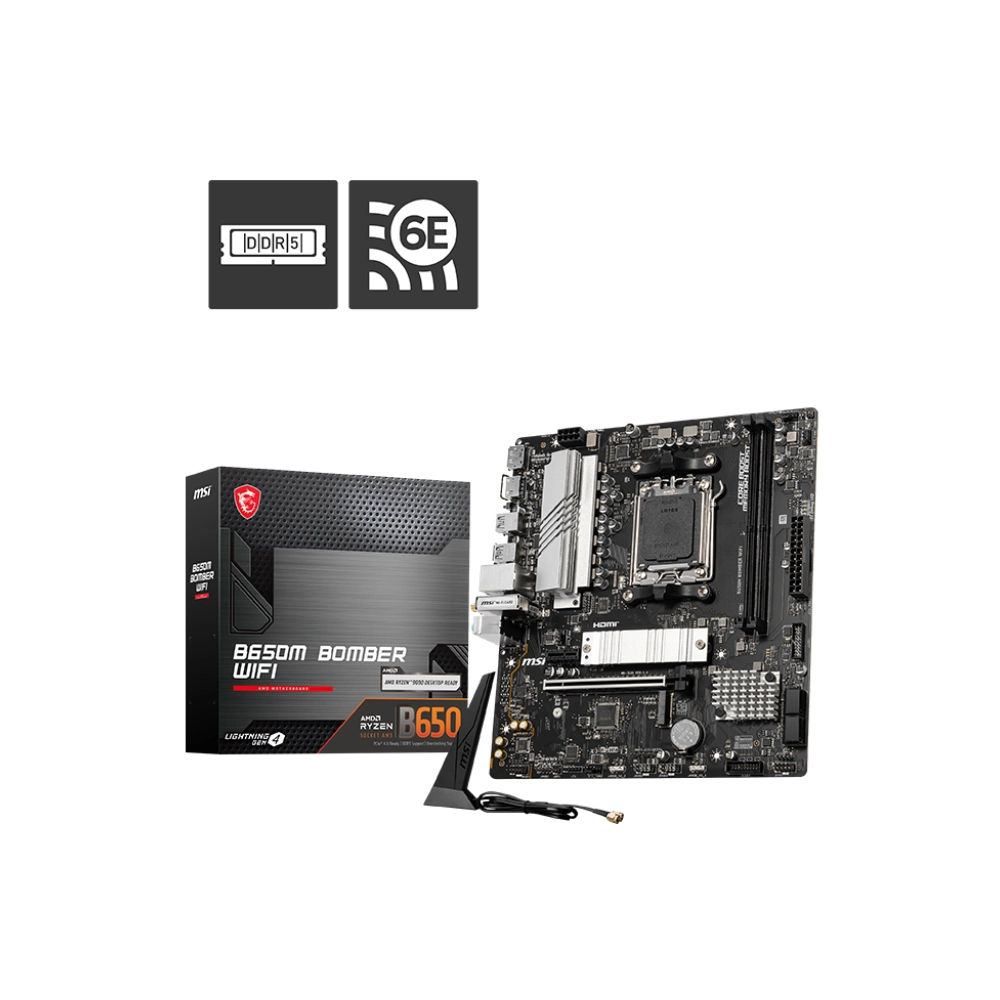

Discover the MSI B650M BOMBER WIFI DDR5 Motherboard, perfect for AMD processors on Mega Jaipur. With top-notch features like DDR5 memory support, premium Wi-Fi capability, robust USB connections and more, it delivers a superior computing experience.
| Component | Specification |
|---|---|
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5) |
| Memory | 2x DDR5, up to 128GB Supports DDR5 7800+ (OC) to 4800 (JEDEC) Dual-channel, non-ECC, un-buffered, AMD EXPO™ |
| Graphics Outputs | 1x HDMI 2.1 (4K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) *Available only with CPUs with integrated graphics |
| Expansion Slots | 1x PCI-E x16 (CPU-dependent lanes: x16/x8/x4) 1x PCI-E x1 (Gen 3.0) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage | 2x M.2 PCIe 4.0 x4 (2280) 4x SATA 6Gbps *M.2_2 disabled with Ryzen™ 8500/8300 |
| RAID | RAID 0/1/10 for SATA & M.2 NVMe |

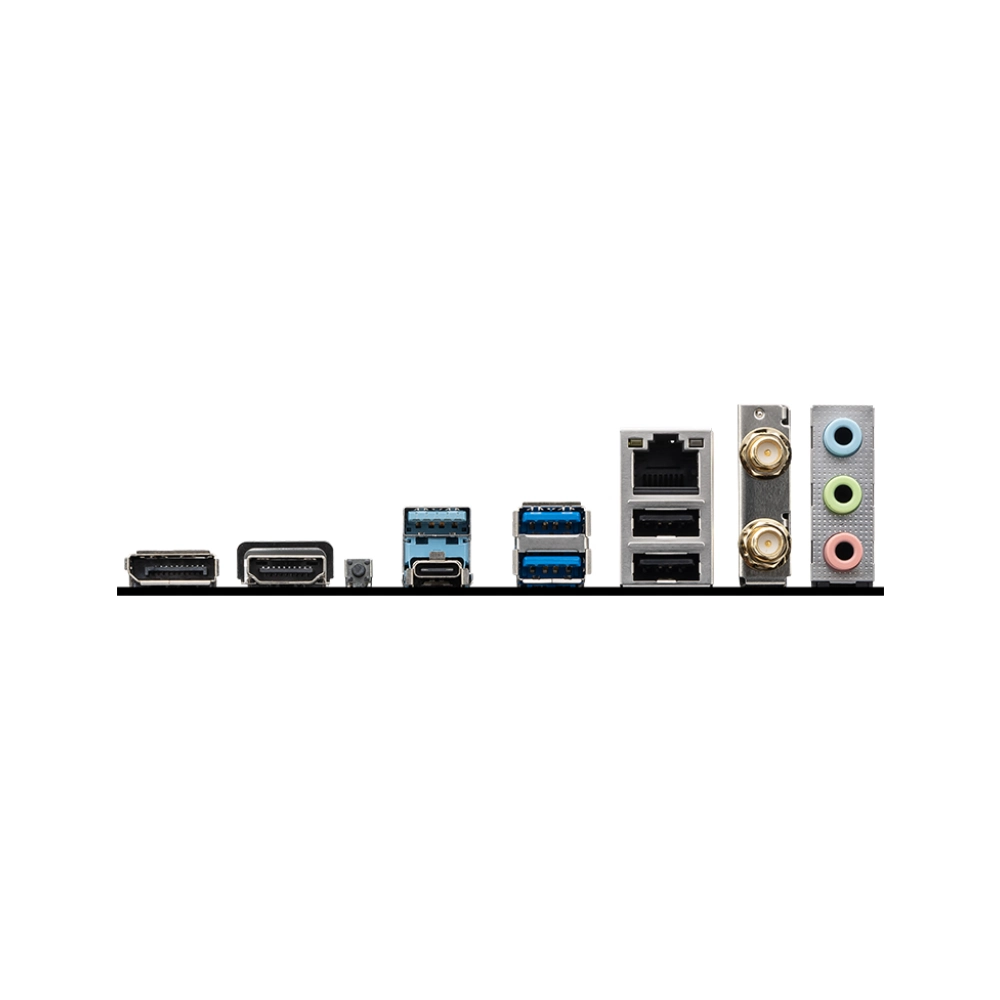

| USB Ports | Rear: 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C Front: 4x USB 2.0, 4x USB 5Gbps Type-A |
| LAN | Realtek® RTL8125BG 2.5Gbps |
| Wireless | Wi-Fi 6E |
| Internal Connectors | ATX_PWR, CPU_PWR, CPU Fan, 3x System Fan, JFP, JAUD, JCI 2x ARGB (JARGB_V2), 1x RGB (JRGB), TPM 2.0 Header USB: 4x USB 2.0, 4x USB 5Gbps Type-A |
