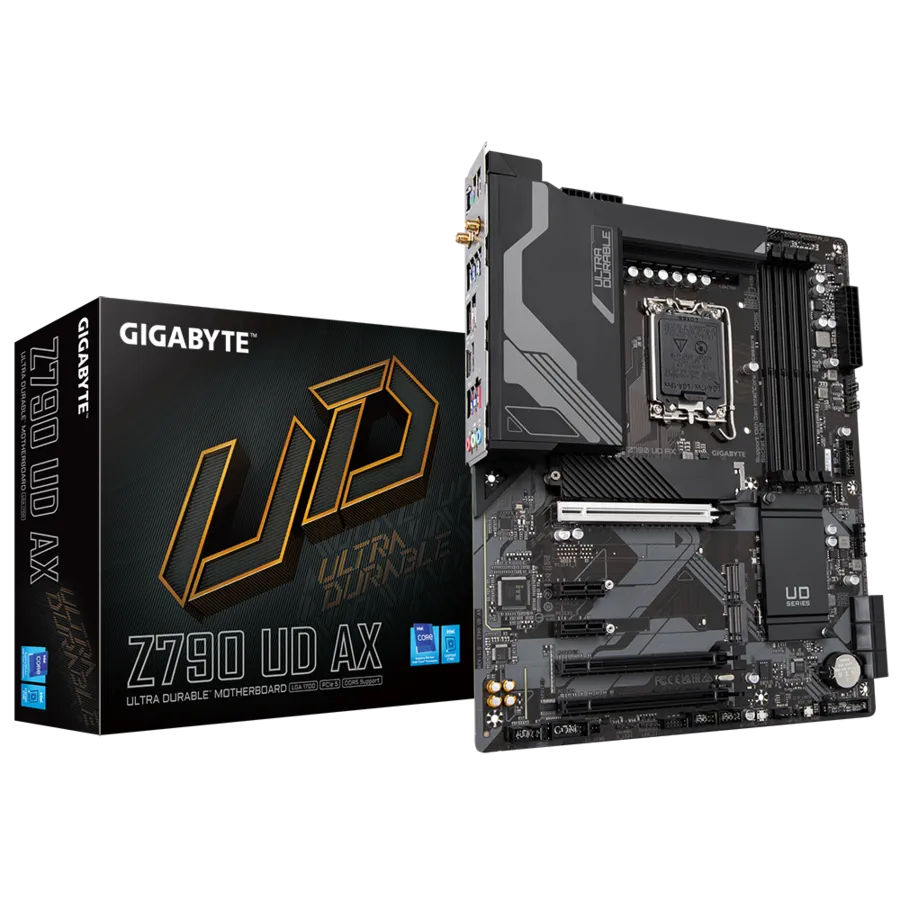

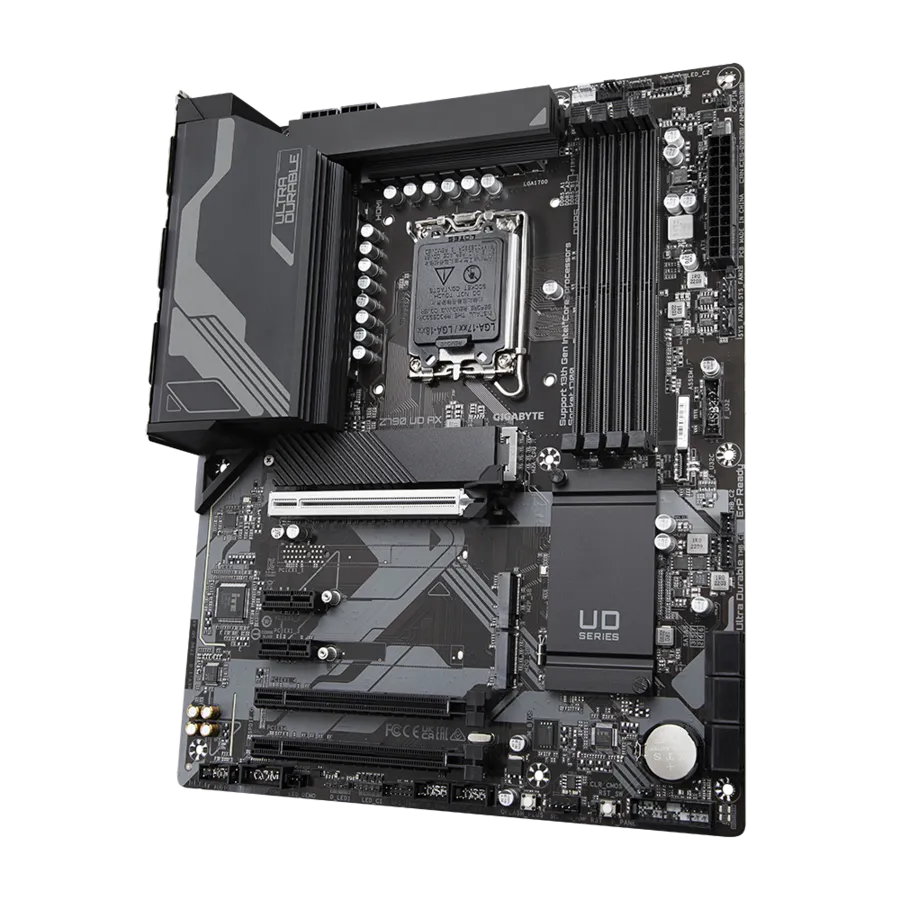

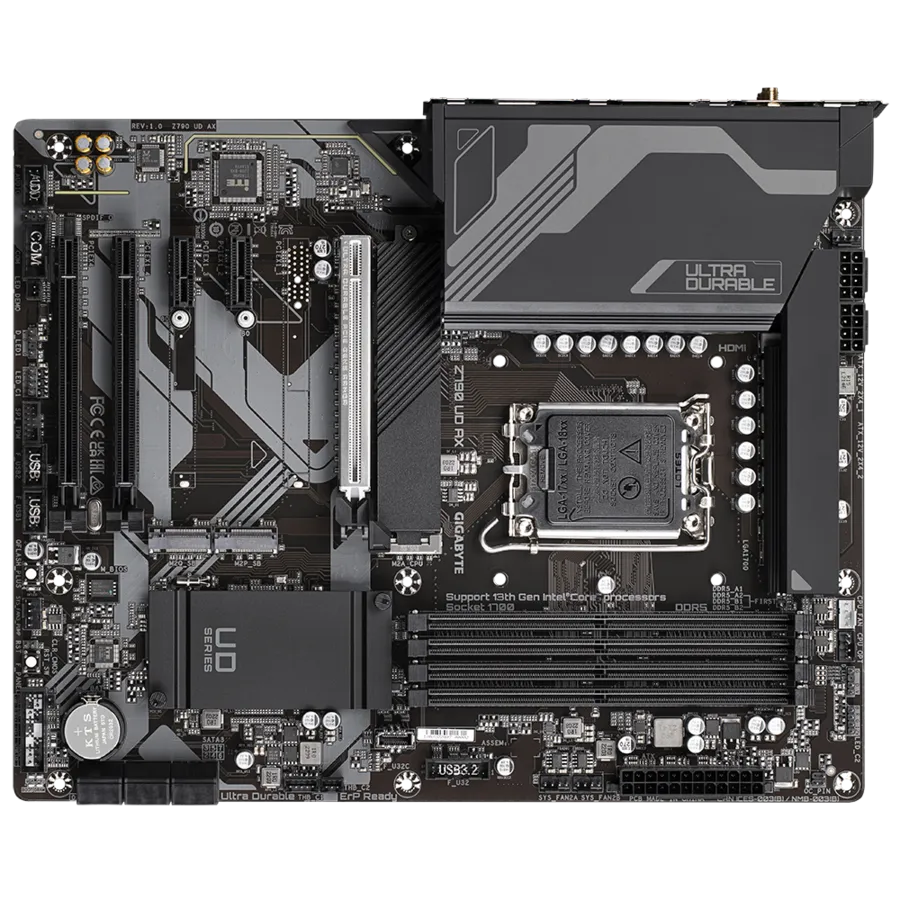

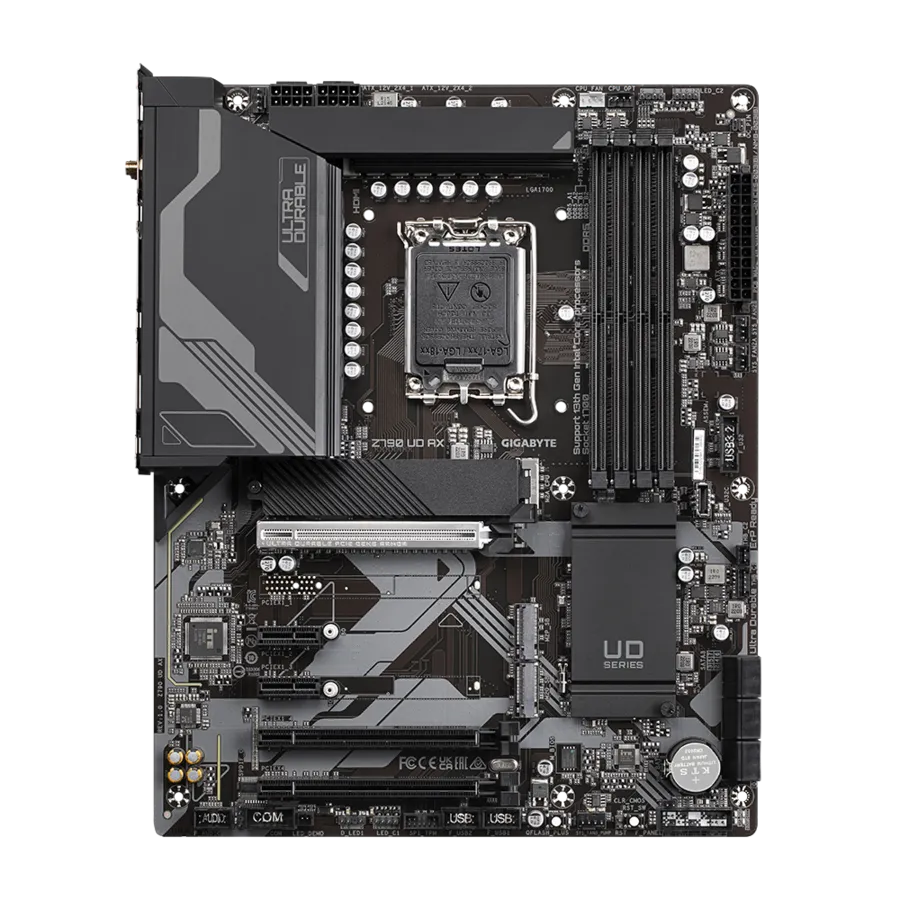

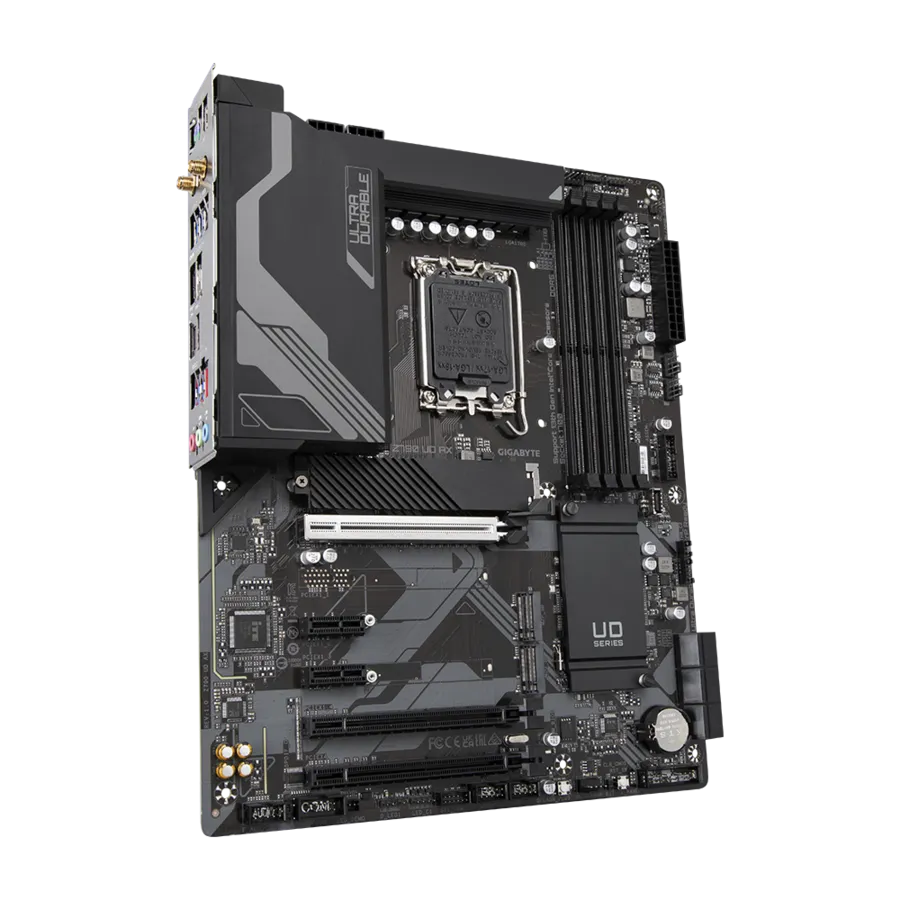

Gigabyte Z790 UD AX WIFI DDR5 Motherboard For Intel 12th | 13th | 14th Gen

Product ID: P2983
Item CD: 0BZUTJ4
Model: Z790 UD AX
Warranty Period: 3 Years
Service Center List: View
Product URL: View Product
Product Registration: Click here

For More Information: 70738 88300

Compatible Products

Specifications

Feature: Specification
CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset: Intel® Z790 Express Chipset
Memory: Support for DDR5 7600(O.C.) to 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture Support for ECC and non-ECC Un-buffered DIMMs Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support HDMI port: Max resolution 4096x2160@60 Hz DisplayPort: Max resolution 4096x2304@60 Hz Support for HDMI 2.1, HDCP 2.3, and DisplayPort 1.2
Audio: Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication: Intel® Wi-Fi 6E AX210/AX211 or Realtek® Wi-Fi 6E RTL8852CE Bluetooth 5.3 Support for 2.4/5/6 GHz carrier frequency bands
Expansion Slots: 1 x PCI Express x16 slot (PCIe 5.0) 1 x PCI Express x16 slot (PCIe 4.0) 1 x PCI Express x16 slot (PCIe 3.0) 2 x PCI Express x1 slots (PCIe 3.0) Support for AMD CrossFire™ technology
Storage Interface: 3 x M.2 connectors (PCIe 4.0) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, RAID 10 support
USB: 1 x USB Type-C® (USB 3.2 Gen 2x2) 1 x USB Type-C® (USB 3.2 Gen 1) 1 x USB 3.2 Gen 2 Type-A 6 x USB 3.2 Gen 1 8 x USB 2.0/1.1
Internal I/O Connectors: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Multiple fan, LED, USB, and audio headers
Back Panel Connectors: 1 x USB Type-C® (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x HDMI 2.0 1 x DisplayPort 1 x RJ-45 3 x audio jacks
H/W Monitoring: Voltage, temperature, fan speed, and water cooling flow rate detection Fan fail warning and speed control
BIOS: 256 Mbit flash, AMI UEFI BIOS
Unique Features: Support for GIGABYTE Control Center (GCC) Q-Flash and Q-Flash Plus Smart Backup
Bundled Software: Norton® Internet Security (OEM version)
Operating System: Support for Windows 11/10 64-bit
Form Factor: ATX; 30.5cm x 24.4cm
