Category

Specification

CPU

LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU

Chipset

Intel® Z790 Express Chipset

Memory

Support for DDR5 7600(O.C.) ~ 4000 MT/s 4 x DDR5 DIMM sockets, up to 256 GB Dual channel, ECC & non-ECC Un-buffered DIMMs Support for Extreme Memory Profile (XMP)

Onboard Graphics

Integrated Intel® HD Graphics 1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3) 1 x DisplayPort (4096x2304@60 Hz, DP 1.2, HDCP 2.3)

Audio

Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel support Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps)

Wireless Communication

Intel® Wi-Fi 6E AX210 (rev. 1.0) / AX211 (rev. 1.1) Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz Bluetooth 5.3 11ax 160MHz support, up to 2.4 Gbps

Expansion Slots

CPU: 1 x PCIe x16 (Gen 5.0) Chipset: 1 x PCIe x16 (Gen 4.0 x4), 1 x PCIe x16 (Gen 3.0 x1), 2 x PCIe x1 (Gen 3.0) Support for AMD CrossFire™

Storage Interface

CPU: 1 x M.2 (PCIe 4.0 x4/x2) Chipset: 2 x M.2 (PCIe 4.0 x4/x2), 6 x SATA 6Gb/s RAID 0/1/5/10 for NVMe & SATA

USB

Rear: 1 x USB-C (3.2 Gen 2x2), 1 x USB-A (3.2 Gen 2), 4 x USB-A (3.2 Gen 1), 4 x USB 2.0 Internal: 1 x USB-C header (3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

Internal I/O

1 x 24-pin ATX, 2 x 8-pin ATX 12V 1 x CPU fan, 1 x water cooling CPU fan, 3 x system fan, 1 x system/water pump fan 2 x ARGB headers, 2 x RGB headers 3 x M.2, 6 x SATA Front panel, audio, S/PDIF, COM, TPM, Q-Flash, Clear CMOS, Reset, Thunderbolt™ add-in headers

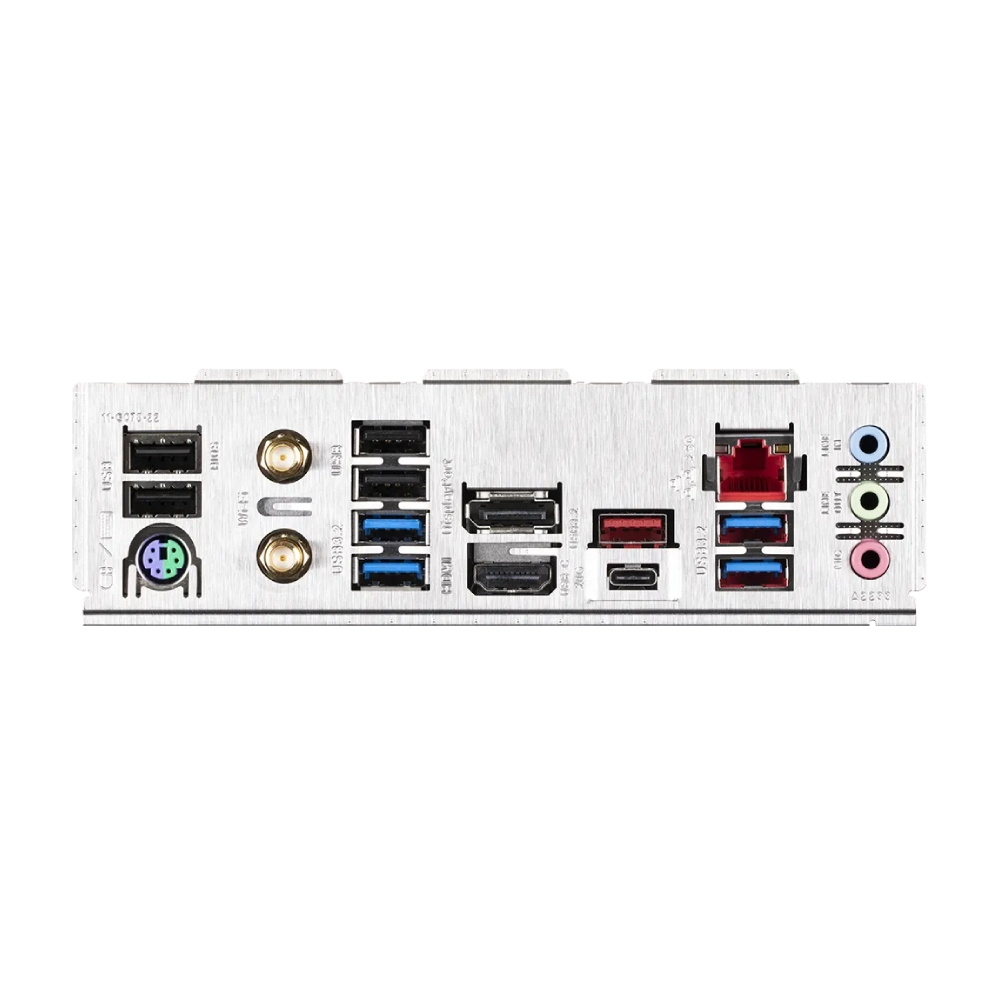

Back Panel

1 x PS/2 port, 1 x USB-C (3.2 Gen 2x2), 1 x USB-A (3.2 Gen 2) 4 x USB-A (3.2 Gen 1), 4 x USB 2.0 2 x SMA antenna connectors, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks

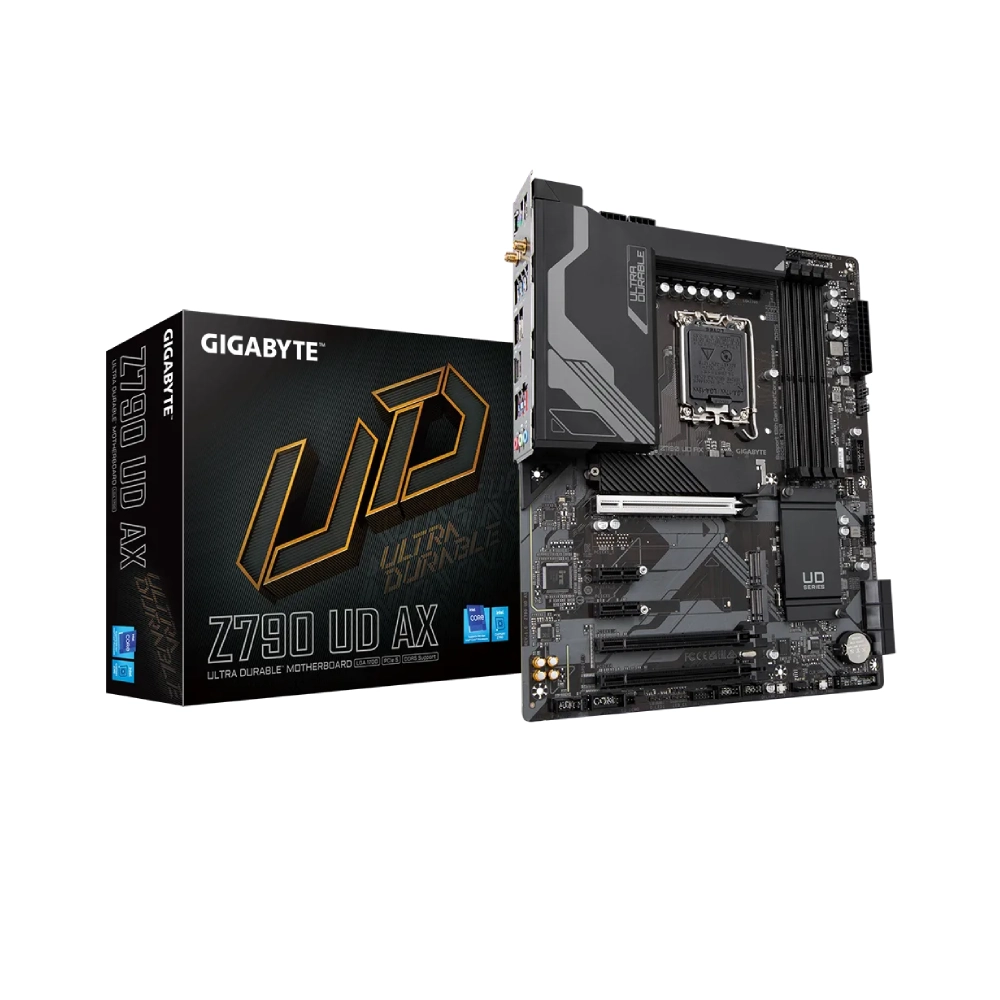

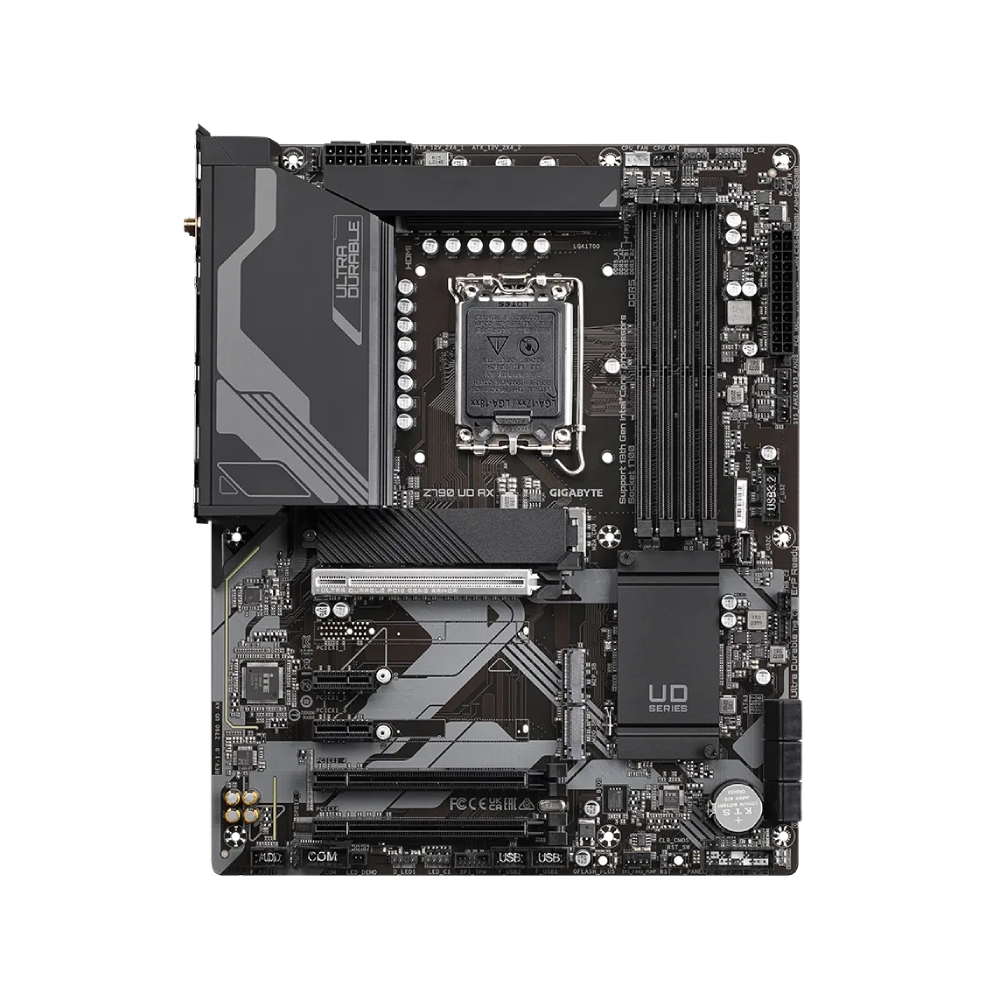

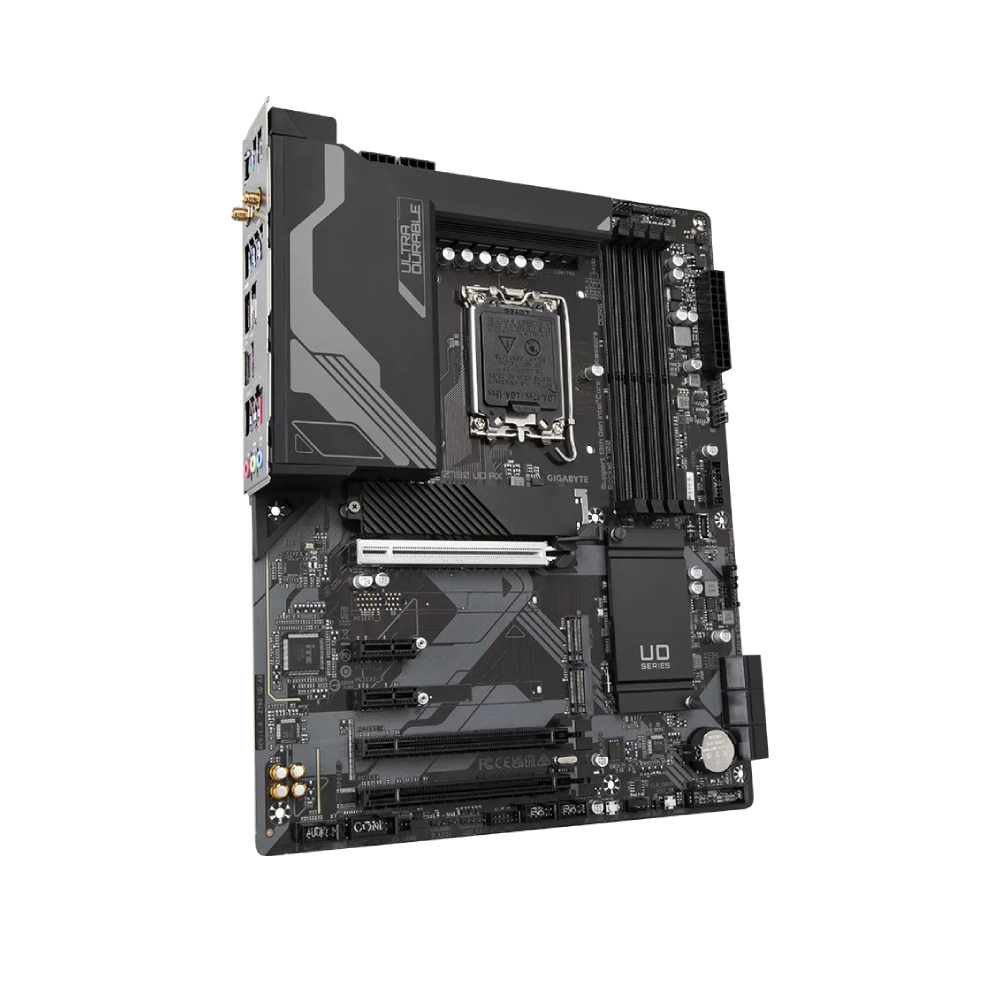

Gigabyte Motherboard Z790 UD AX WIFI DDR5 For INTEL 14th | 13th | 12th Gen
