- Specification
- CPU
- LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
- Chipset
- Intel® H610 Express Chipset
- Memory
- - DDR5 5600/5200/4800/4400 MT/s (14th/13th Gen i9/i7) - DDR5 4800/4400 MT/s (13th Gen i5/i3, 12th Gen CPUs) - 2 x DDR5 DIMM sockets, up to 128 GB - Dual channel, ECC/non-ECC, XMP supported
- Graphics
- Integrated Intel® HD Graphics - 1 x D-Sub (1920x1200@60Hz) - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3)
- Audio
- Realtek® Audio CODEC, 2/4/5.1/7.1-channel HD Audio
- LAN
- Realtek® GbE LAN (1 Gbps)
- PCIe Slots
- - 1 x PCIe x16 (CPU, Gen 4.0) - 1 x PCIe x1 (Chipset, Gen 3.0)
- Storage
- - 1 x M.2 (PCIe 3.0 x4/x2, 2280/2260) - 4 x SATA 6Gb/s
- USB Ports
- - 2 x USB 3.2 Gen 1 (rear) - 2 x USB 3.2 Gen 1 (internal header) - 4 x USB 2.0 (rear) - 4 x USB 2.0 (internal headers)
- Internal Connectors
- ATX power (24-pin, 8-pin), CPU/System fan headers, M.2, SATA, RGB header, front panel/audio, speaker, USB 3.2/2.0 headers, TPM header, serial, Clear CMOS, chassis intrusion

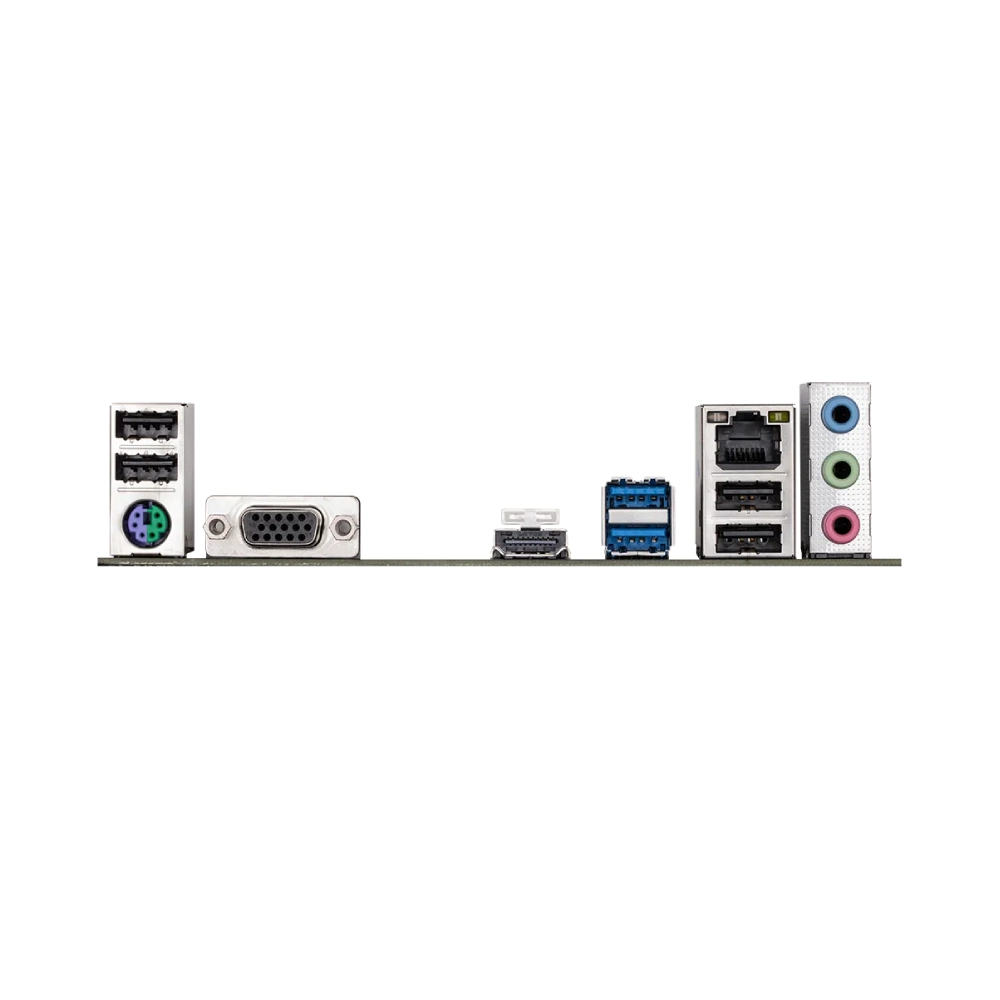

- Back Panel
- PS/2, D-Sub, HDMI, 2 x USB 3.2 Gen 1, 4 x USB 2.0, RJ-45, 3 x Audio jacks
